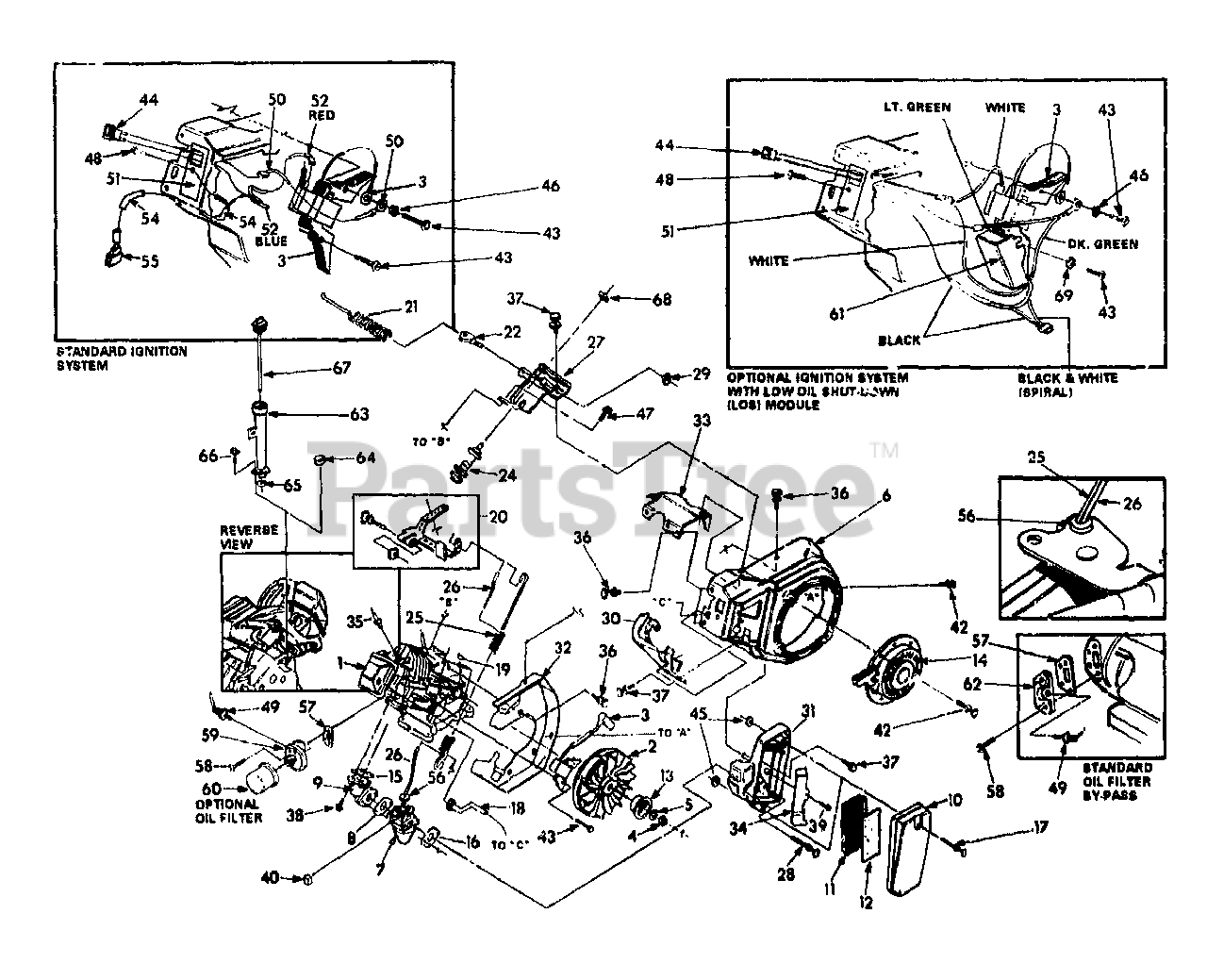

3W953A (9540-2) - Generac 3,500 Watt Portable Generator 6.5 HP HS Long Block And Ignition Systems Parts Diagram

3,500 Watt Portable Generator

6.5 HP HS Long Block And Ignition Systems Parts Diagram

  • Title

1

Briggs & Stratton 90307

6.5 HP HS long block
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

2

Briggs & Stratton 77182T

Flywheel assembly

$

$

Currently unavailable

3

Briggs & Stratton 81675

Ignition coil assembly

$

$

Currently unavailable

4

Briggs & Stratton 81810

M16-1.5 Hex nut

$

$

Currently unavailable

5

Briggs & Stratton 83312

Conical washer

$

$

Currently unavailable

6

Briggs & Stratton 90695A

Complete blower housing

$

$

Currently unavailable

7

Briggs & Stratton 92966

Carburetor HS assembly

$

$

Currently unavailable

8

Briggs & Stratton 78631

Carburetor/man. gasket

$

$

Not available

9

Briggs & Stratton 90948

HS intake manifold

$

$

Not available

10

Briggs & Stratton 78608

Air cleaner cover

$

$

Currently unavailable

11

Briggs & Stratton 78601

Air filter element
(Superseded to 78601GS)

$13.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 78602

Air filter pre-cleaner

$

$

Not available

13

Briggs & Stratton 83105

Recoil cup

$

$

Currently unavailable

14

Briggs & Stratton 81671

Recoil assembly

$

$

Currently unavailable

15

Briggs & Stratton 90051

Manifold head gasket

$

$

Not available

16

Briggs & Stratton 91846

Carburetor/air cleaner gasket

$

$

Not available

17

Briggs & Stratton 78609

Bolt, air cleaner cover

$

$

Not available

18

Briggs & Stratton 90947

Breather hose
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 12

0

19

Briggs & Stratton 82774

4 x 19 Woodruff key

$

$

Not available

20

Briggs & Stratton 86962

Governor lever

$

$

Currently unavailable

21

Briggs & Stratton 78604

Governor spring

$

$

Currently unavailable

22

Briggs & Stratton 83502

Gov. adjusting screw

$

$

Not available

24

Briggs & Stratton 83782

Idle control coil

$

$

Currently unavailable

25

Briggs & Stratton 86037

Spring, anti-lash extension

$

$

Currently unavailable

26

Briggs & Stratton 86384

Governor rod

$

$

Currently unavailable

27

Briggs & Stratton 83781

Governor adjust bracket

$

$

Currently unavailable

28

Briggs & Stratton 78643

Carb. mounting bolt

$

$

Not available

29

Briggs & Stratton 83503

M5-0.8 Mntg. lock nut

$

$

Currently unavailable

30

Briggs & Stratton 89739

Bottom wrapper

$

$

Currently unavailable

31

Briggs & Stratton 78607

Air cleaner base

$

$

Not available

32

Briggs & Stratton 78651C

Blower hsg. back plate

$

$

Currently unavailable

33

Briggs & Stratton 92984

Top wrapper
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

34

Briggs & Stratton 80303

Breather canal cover

$

$

Not available

35

Briggs & Stratton 72347

Champion RC12YC spark plug
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 45756

M6-1.0 x 10mm Bolt

$

$

Not available

37

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew with lockwasher
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 80316

M6-1.0 x 30mm Capscrew with lockwasher

$

$

Currently unavailable

39

Briggs & Stratton 59635

#8 x 3/8" Plastite screw

$

$

Currently unavailable

40

Briggs & Stratton 83504

Choke lever knob

$

$

Not available

42

Briggs & Stratton 81668

M6-1.0 x 10mm Capscrew with lockwasher

$

$

Not available

43

Briggs & Stratton 82981

M6-1.0 x 30mm Bolt

$

$

Currently unavailable

44

Briggs & Stratton 78653

Shut-off Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 49813

M6-1.0 Hex nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83512

M8 x 15mm Taptite bolt
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 85272

Low oil indicator LED

$

$

Currently unavailable

49

Briggs & Stratton 776671

8-12 psi Oil press. switch

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 00285271

Ground wire assembly

$

$

Currently unavailable

51

Briggs & Stratton 84195

LOS engine decal

$

$

Currently unavailable

52

Briggs & Stratton 00185271

Ignition wire assembly

$

$

Currently unavailable

54

Briggs & Stratton 85620

#3, 145mm Sleeving

$

$

Currently unavailable

55

Briggs & Stratton 84329

3-pin, Male housing

$

$

Currently unavailable

56

Briggs & Stratton 85953

Carburetor wear washer

$

$

Currently unavailable

57

Briggs & Stratton 91848

Oil filter pad gasket
(Superseded to 7091848YP)

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 92978

M6 x 1.0 Taptite screw

$

$

Currently unavailable

59

Briggs & Stratton 84982

Adaptor, oil filter

$

$

Currently unavailable

60

Briggs & Stratton 70185

Oil filter
(Superseded to 70185GS)

Note: (optional)

$14.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 87221A

Module, low oil shutdown
(Superseded to 87221AGS)

$78.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 88758

By-pass adaptor

Note: (optional)

$

$

Currently unavailable

63

Briggs & Stratton 91041

Oil fill tube

Note: (optional)

$

$

Currently unavailable

64

Briggs & Stratton 94820

Expansion Plug

$

$

Currently unavailable

65

Briggs & Stratton 91230

Oil fill gasket
(Superseded to 7079831YP)

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 90388

M6 x 12mm Taptite screw
(Superseded to 7090388YP)

$3.49

$

In Stock, only 3 left!

0

67

Briggs & Stratton 91475

Oil fill dipstick

Note: (optional)

$

$

Not available

68

Briggs & Stratton 66311

M8-1.25 Hex jam nut

$

$

Currently unavailable

69

Briggs & Stratton 49811

M6 Flatwasher
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0
