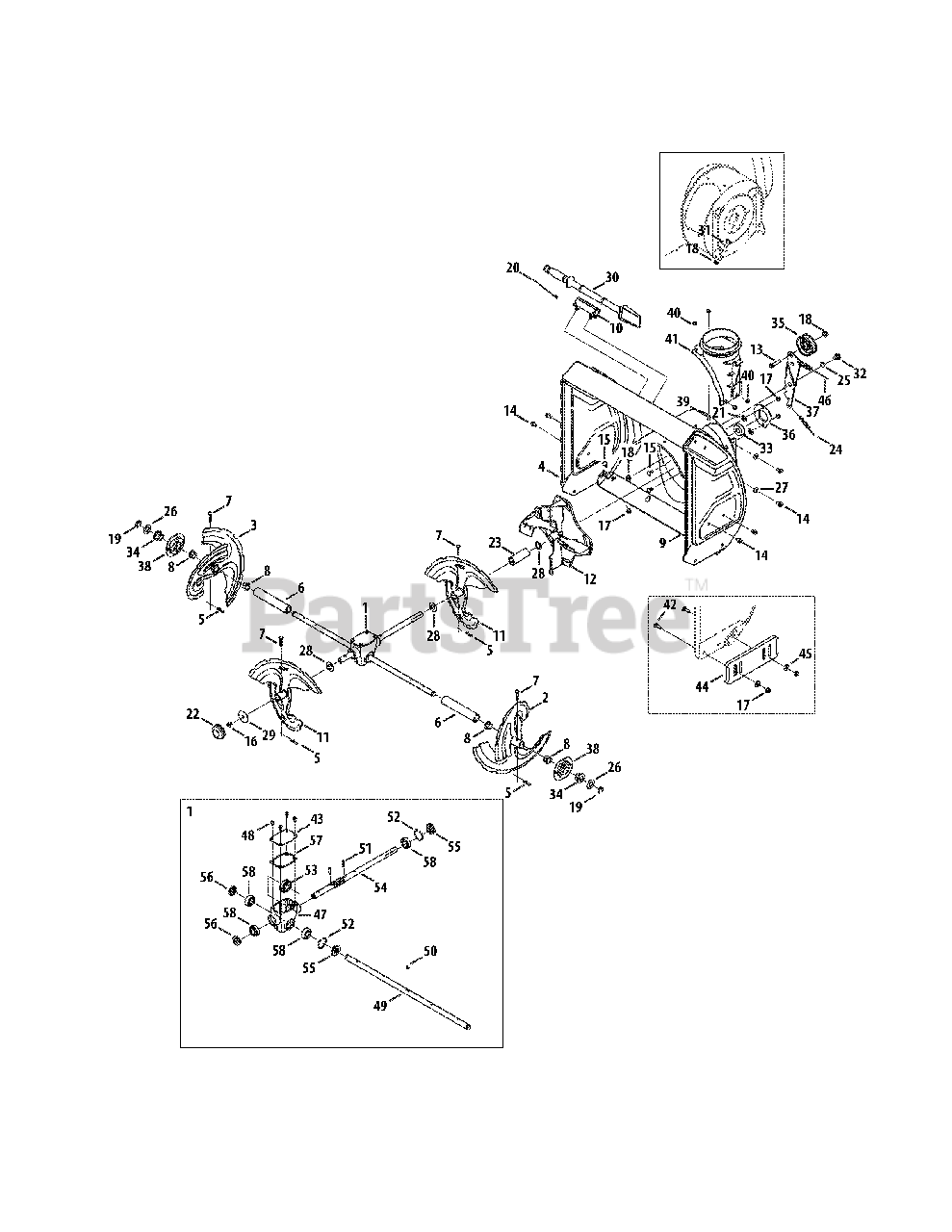

Auger & Housing Parts Diagram

  • Title

1

Cub Cadet 918-07027

Gearbox Assembly, Auger, 24"

$380.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05065-0637

Spiral Assembly - LH, 24"

$89.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05064-0637

Spiral Assembly - RH, 24"

$81.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05093-4021

Auger Housing, 24"

$394.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-10282

Spacer, 1.25 OD x .75 ID x 5.8 (24")

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

8

Cub Cadet 741-0493A

Flange Bushing, .800 x .910
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 790-00652-4021

Shave Plate, 24"

$66.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 731-11421

Clean-out Tool Mtg. Bracket

$11.99

$

In Stock, Qty 6

0

11

Cub Cadet 684-05015B-4021

Accelerator Assembly
(Superseded to 684-05015C-4021)

$78.99

$

In Stock, only 2 left!

0

12

Cub Cadet 684-05030-0637

Impeller Assembly

$84.99

$

In Stock, only 3 left!

0

13

Cub Cadet 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 916-0231

E-ring, .75
(Superseded to 716-0231)

$

$

Not available

20

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 926-04012

Push-On Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

22

Cub Cadet 731-08637A

Hubcap

$5.99

$

In Stock, Qty 14

0

23

Cub Cadet 750-06274A

Spacer, 1.35 OD x .76 ID x 2.705

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-04460

Extension Spring, .38 OD x 4.59

$5.99

$

In Stock, Qty 10

0

25

Cub Cadet 736-0174

Wave Washer, .625 x .885 x .0175

$7.49

$

In Stock, only 2 left!

0

26

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

29

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.99

$

In Stock, Qty 16

0

30

Cub Cadet 931-2643

Clean-Out Tool

$20.99

$

In Stock, only 2 left!

0

31

Cub Cadet 738-0143

Shoulder Screw, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 938-0281

Shoulder Screw, 3/8-16 x .625 x .17
(Superseded to 738-0281)

$

$

Not available

33

Cub Cadet 941-0309

Flange Ball Bearing, .75 x 1.85

$79.99

$

In Stock, Qty 20+

0

34

Cub Cadet 741-05041

Hex Flange Bearing, .75 ID

$10.99

$

In Stock, only 2 left!

0

35

Cub Cadet 756-04224

Flat Idler Pulley

$28.99

$

In Stock, Qty 20+

0

36

Cub Cadet 790-00075A

Bearing Housing
(Superseded to 790-00075B)

$6.99

$

In Stock, only 3 left!

0

37

Cub Cadet 790-00080C-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$30.99

$

In Stock, Qty 5

0

38

Cub Cadet 790-00534-4021

Bearing Housing

$13.99

$

In Stock, only 2 left!

0

39

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 731-07525

Chute Adapter

$19.99

$

In Stock, only 2 left!

0

42

Cub Cadet 710-0276

Spacer, Carriage, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 783-08281

Gearbox Cover

$8.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 731-06931

Deluxe Slide Shoe
(Superseded to 731-11514)

$30.99

$

In Stock, only 2 left!

0

45

Cub Cadet 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

46

Cub Cadet 946-04230A

Auger Clutch Cable
(Superseded to 946-04230B)

$24.99

$

In Stock, Qty 15

0

47

Cub Cadet 919-05029

Auger Housing

$89.99

$

In Stock, only 3 left!

0

48

Cub Cadet 710-0642

Screw, 1/4-20 x 0.75

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 711-06266

Axle, Auger, 24"

$75.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 914-0161

Hi-Pro Key

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 715-04034

Pin, Roll, .25 x 1.0

$7.49

$

In Stock, only 2 left!

0

52

Cub Cadet 716-05001

Retainer Ring

$3.49

$

In Stock, Qty 15

0

53

Cub Cadet 917-04861

Worm Gear, 20T

$45.99

$

In Stock, Qty 20+

0

54

Cub Cadet 917-05112A

Worm Shaft

$110.99

$

In Stock, only 3 left!

0

55

Cub Cadet 721-04612

Seal, .75 x 40mm x .25

$5.99

$

In Stock, Qty 20+

0

56

Cub Cadet 721-04613

Seal, .75 x 1.375 x .25

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 921-04614A

Gearbox Gasket

$5.99

$

In Stock, Qty 6

0

58

Cub Cadet 941-05042

Ball Bearing, .75 x 40 x 12

$12.99

$

In Stock, only 2 left!

0
