3X 26 (31BH55TA710) - Cub Cadet 3X 26" Snow Thrower (2015) Handle & Frame Parts Diagram

3X 26" Snow Thrower

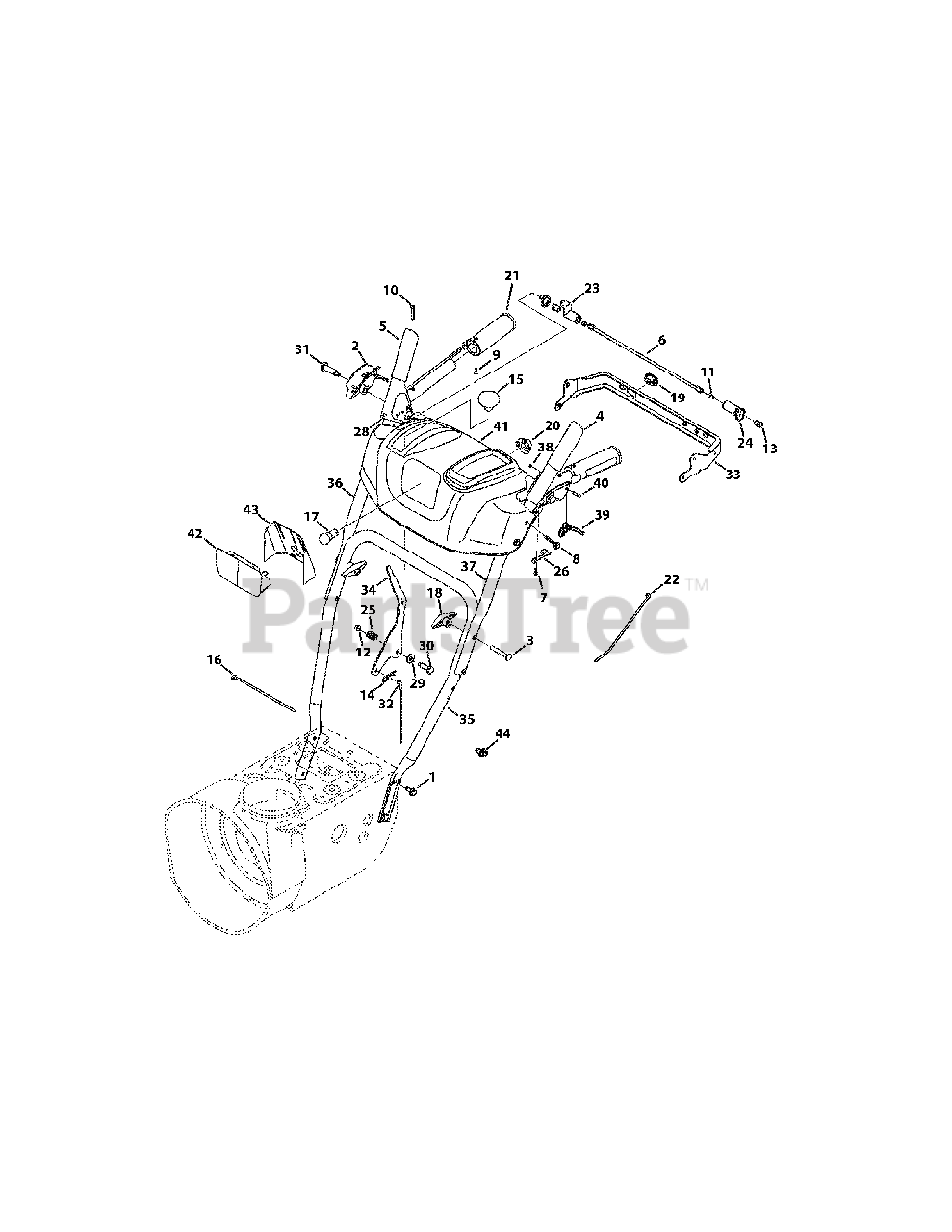

Handle & Frame Parts Diagram

  • Title

1

Cub Cadet 710-04484

Screw, Taptite, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 631-04134B

Clutch Lock, RH

$14.99

$

In Stock, only 3 left!

0

2

Cub Cadet 631-04133A

Clutch Lock, LH

$14.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0572

Screw, Carriage, 5/16-18 x 2.50

$3.99

$

In Stock, only 4 left!

0

4

Cub Cadet 684-04105C

Auger Engage, Black, LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

5

Cub Cadet 684-04106C

Drive Engage, Black, RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

6

Cub Cadet 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-04326

Screw, Plastite, 8-16 x .50

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-04586

Screw, Taptite, 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0837

Screw, 10-16 x 0.625

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 710-1233

Screw, 10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 710-3069

Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 13

0

12

Cub Cadet 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04081A

Nut, Hex, 1/4-20

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 720-04039

Shift Knob

$9.99

$

In Stock, only 4 left!

0

16

Cub Cadet 725-0157

Cable Tie, 7"

$3.49

$

In Stock, only 4 left!

0

17

Cub Cadet 925-1629

Lamp

$10.99

$

In Stock, Qty 14

0

18

Cub Cadet 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet 725-04393

Heated Grip Switch

$15.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 925-1649

Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

21

Cub Cadet 925-06107

Heated Grip

$73.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 926-0154

Cable Tie, Push Mount

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-04894D

Plate, Lock

$4.99

$

In Stock, only 4 left!

0

24

Cub Cadet 731-04896B

Cam, Clutch Lock
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

25

Cub Cadet 732-0193

Compression Spring, .39 x .60 x .88

$4.49

$

In Stock, Qty 8

0

26

Cub Cadet 732-04219C

Clutch Lock Spring

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 732-04238B

Torsion Spring, 0.8156 x .3038

$4.99

$

In Stock, Qty 12

0

28

Cub Cadet 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

29

Cub Cadet 936-0267

Washer, Flat, .385 x .87
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 738-04125

Screw, Shield, .374 x 1.05

$4.49

$

In Stock, Qty 18

0

31

Cub Cadet 738-04348

Screw, Shoulder, .437 x 1.345 x 1/4-20

$3.49

$

In Stock, only 1 left!

0

32

Cub Cadet 946-04396A

Speed Selector Cable

$19.99

$

In Stock, Qty 20+

0

33

Cub Cadet 790-00248C

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Cub Cadet 790-00248C-0637

Handle Support Bracket - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

$22.99

$

In Stock, only 2 left!

0

34

Cub Cadet 790-00311C-0637

Shift Lever

$25.99

$

In Stock, only 1 left!

0

35

Cub Cadet 749-04138B-0637

Lower Handle
(Superseded to 749-04138C-0637)

$82.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 749-04190A-0637

Upper RH Handle

$42.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 749-04191A-0637

Upper LH Handle

$42.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 716-04036

E-Ring

$5.99

$

In Stock, Qty 9

0

39

Cub Cadet 731-04954

Clutch Trigger

$5.99

$

In Stock, Qty 20+

0

40

Cub Cadet 738-04126

Steering Trigger Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 931-04187A

Handle Panel, includes Ref. 42 & 43

$66.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 731-05324

Lens

$13.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 777X41804

Lens Label

$8.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .500 (For ground wire)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 725-05148

Heated Grips Harness

Note: (Not Shown)

$64.99

$

In Stock, only 1 left!

0
