3X 26 TRAC (31AH75SX710) - Cub Cadet 3X 26" TRAC Snow Thrower (2015) Traction Drive System Parts Diagram

3X 26" TRAC Snow Thrower

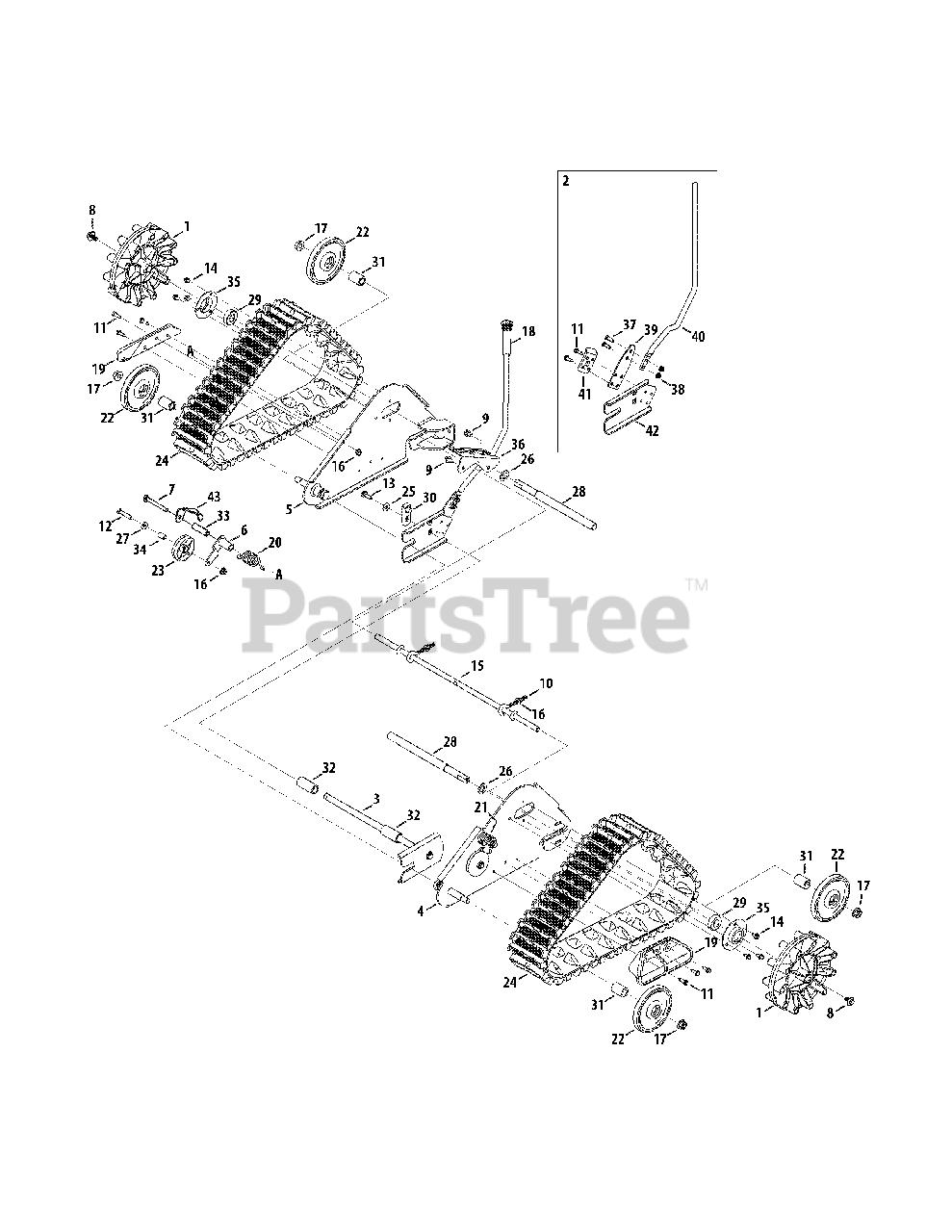

Traction Drive System Parts Diagram

  • Title

1

Cub Cadet 631-05092

Track Drive Wheel
(Superseded to 631-05092B)

$55.99

$

In Stock, Qty 5

0

2

Cub Cadet N/A

Height Adjustment Lever Ass'ly

$

$

Currently unavailable

3

Cub Cadet 684-05031

Pivot Bracket Assembly

$89.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05033A-0637

Track Mount Plate Assembly, LH

$112.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-05034A-0637

Track Mount Plate Assembly, RH

$112.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 684-05052-0637

Pivot Tension Bracket Assembly

$20.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0378

Hex Screw, 5/16-18, 2.50, Gr5

$4.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-05339A

Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .875

$4.99

$

In Stock, Qty 13

0

10

Cub Cadet 710-06112

Eye Bolt, 5/8 x 2.375, 5/16-18

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-06115

Hex Washer Screw, 1/4-20 x .625

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 911-06119

Rear Wheel Axle

$53.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04063

Nut, Flange lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 720-0223

Grip, .5 ID x 3.45

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet 731-09608

Track Skid

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-05145

Torsion Spring

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-05148

Torsion Spring

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 734-05046

Wheel, 5.00 OD

$51.99

$

In Stock, only 1 left!

0

23

Cub Cadet 734-05058

Track Tension Wheel

$7.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 735-05029

Track, 61mm x 22 Pitches
(Superseded to 735-05029A)

$291.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0242

Washer, Bell, .340 x .872

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-05041

Flat Washer, .672 x 1.125 x .125

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 938-05044

Axle, .75 OD x 11.06 LG

$56.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 941-0600

Ball Bearing, 17 x 40 x 12

$26.99

$

In Stock, Qty 20+

0

30

Cub Cadet 748-05020

Height Adjustment Adapter

$22.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-06090

Spacer, .63 x 1.00 x 1.42

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-06095

Spacer, .632 x 1.00 x 1.42

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-06169

Sleeve, .33 x .50 x 1.73

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-06170

Sleeve, .33 x .50 x .75

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 790-00554

Cup Bearing

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00562-0637

Height Adjustment Index Bracket

$32.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-04064

Nut, Flangelock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 732-05079

Lever Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-06180

Height Adjustment Lever

$29.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 787-01521-0637

Lever Pivot Bracket
(Superseded to 787-06323-0637)

$9.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 790-00552

Height Adjustment Pivot Bracket

$29.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 790-00590-0637

Stop Bracket

$22.99

$

Usually ships in 3-6 days
