3X 30 HD (31AH57SZ710) - Cub Cadet 3X 30" HD Snow Thrower (2013) 490-WU Carburetor Parts Diagram

3X 30" HD Snow Thrower

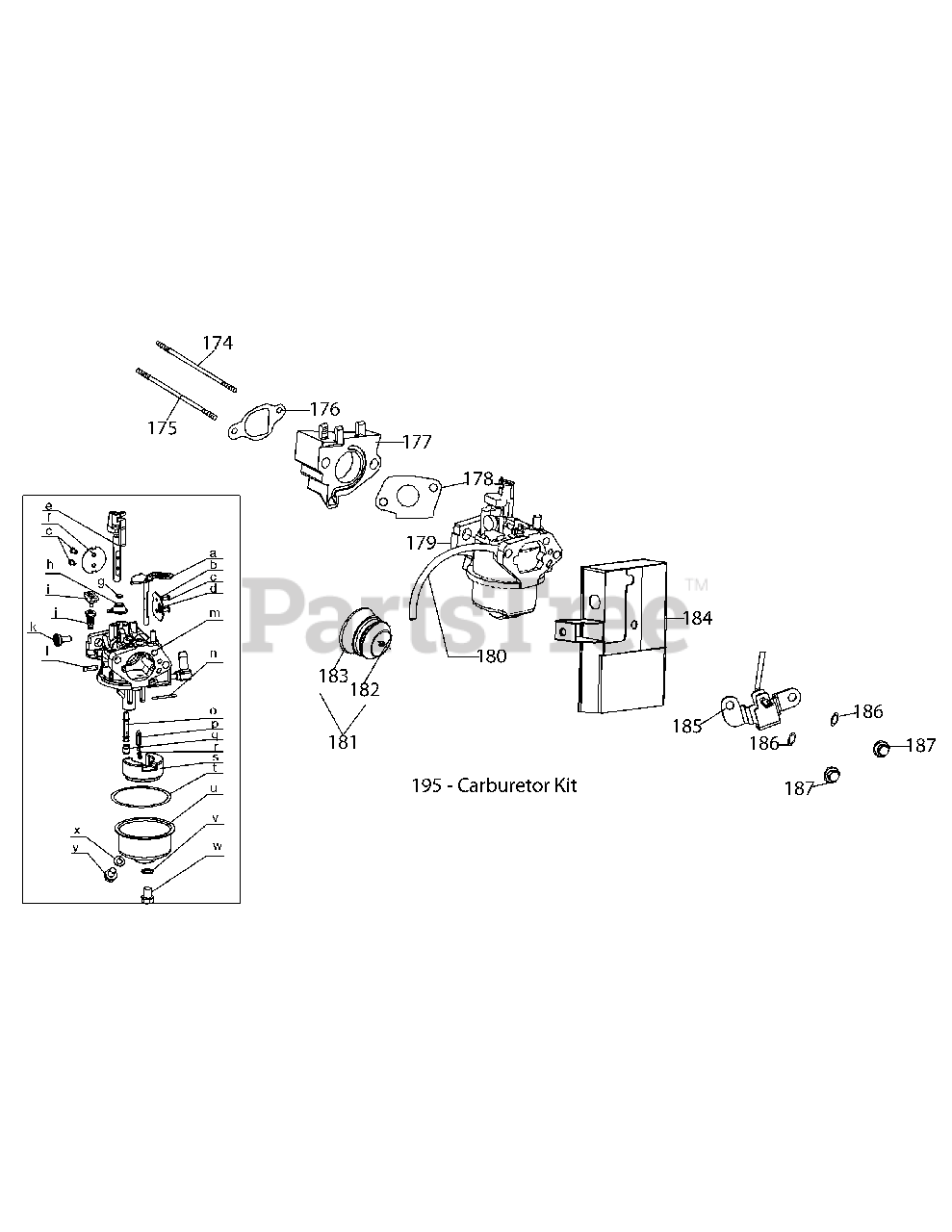

490-WU Carburetor Parts Diagram

  • Title

174

Cub Cadet 710-05392

Stud M6-8×100

$5.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 710-05056

Stud M6-8×118

$6.49

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-11315

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 8

0

177

Cub Cadet 951-11353

Carburetor Insulator

$8.99

$

Usually ships in 3-6 days

0

178

Cub Cadet 951-11354

Carburetor Gasket

$4.99

$

In Stock, only 1 left!

0

179

Cub Cadet 651-05124

Carburetor Assembly
(Superseded to 951-05124)

$102.99

$

Usually ships in 3-6 days

0

180

Cub Cadet 751-11991

Primer Hose
(Superseded to 751-11991A)

$11.99

$

In Stock, only 2 left!

0

181

Cub Cadet 951-10639A

Primer Assembly

$13.99

$

In Stock, Qty 20+

0

182

Cub Cadet 951-11824

Primer Bulb

$10.99

$

In Stock, Qty 5

0

183

Cub Cadet 951-11906

Primer Hose Clamp

$3.99

$

In Stock, Qty 7

0

184

Cub Cadet 951-11304

Heater Box

$21.99

$

Usually ships in 3-6 days

0

185

Cub Cadet 951-11192

Choke Control

$8.49

$

Usually ships in 3-6 days

0

186

Cub Cadet 736-04477

Lock Washer

$5.99

$

Usually ships in 3-6 days

0

187

Cub Cadet 712-05015

Nut M6

$6.49

$

In Stock, only 4 left!

0

195

Cub Cadet 951-05139

Carburetor Kit

Note: (Incl. I,j,o,p,q,r,s,t,u,x,y)

$48.99

$

Usually ships in 3-6 days

0

a

Cub Cadet n/a

Choke Shaft

$

$

Currently unavailable

b

Cub Cadet 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

c

Cub Cadet 710-05469

Screw M3×6

$3.99

$

Usually ships in 3-6 days

0

d

Cub Cadet n/a

Choke Plate

$

$

Currently unavailable

e

Cub Cadet n/a

Throttle Shaft

$

$

Currently unavailable

f

Cub Cadet n/a

Throttle Plate

$

$

Currently unavailable

g

Cub Cadet n/a

Gasket

$

$

Currently unavailable

h

Cub Cadet n/a

Throttle Shaft Cover

$

$

Currently unavailable

i

Cub Cadet n/a

Idle Jet Rivet

$

$

Currently unavailable

j

Cub Cadet n/a

Idle Jet Assembly

$

$

Currently unavailable

k

Cub Cadet n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

l

Cub Cadet n/a

Primer Pipe

$

$

Currently unavailable

m

Cub Cadet n/a

Carburetor Body

$

$

Currently unavailable

n

Cub Cadet n/a

Float Pin

$

$

Currently unavailable

o

Cub Cadet n/a

Emulsion Tube

$

$

Currently unavailable

p

Cub Cadet n/a

Needle Valve

$

$

Currently unavailable

q

Cub Cadet n/a

Main Jet

$

$

Currently unavailable

r

Cub Cadet n/a

Needle Valve Spring

$

$

Currently unavailable

s

Cub Cadet n/a

Float

$

$

Currently unavailable

t

Cub Cadet 951-11970

Fuel Bowl Gasket

$6.49

$

In Stock, Qty 9

0

u

Cub Cadet n/a

Fuel Bowl

$

$

Currently unavailable

v

Cub Cadet 710-04945

Fuel Bowl Gasket

$3.99

$

In Stock, Qty 8

0

w

Cub Cadet 951-11348

Fuel Bowl Mounting Bolt
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

x

Cub Cadet 710-04938

Fuel Drain Plug Gasket

$3.99

$

In Stock, only 4 left!

0

y

Cub Cadet 951-11349

Fuel Drain Plug
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 16

0
