3X 30 TRAC (31AH7LVZB10) - Cub Cadet 3X 30" TRAC Snow Thrower (2024) Auger Housing Parts Diagram

3X 30" TRAC Snow Thrower

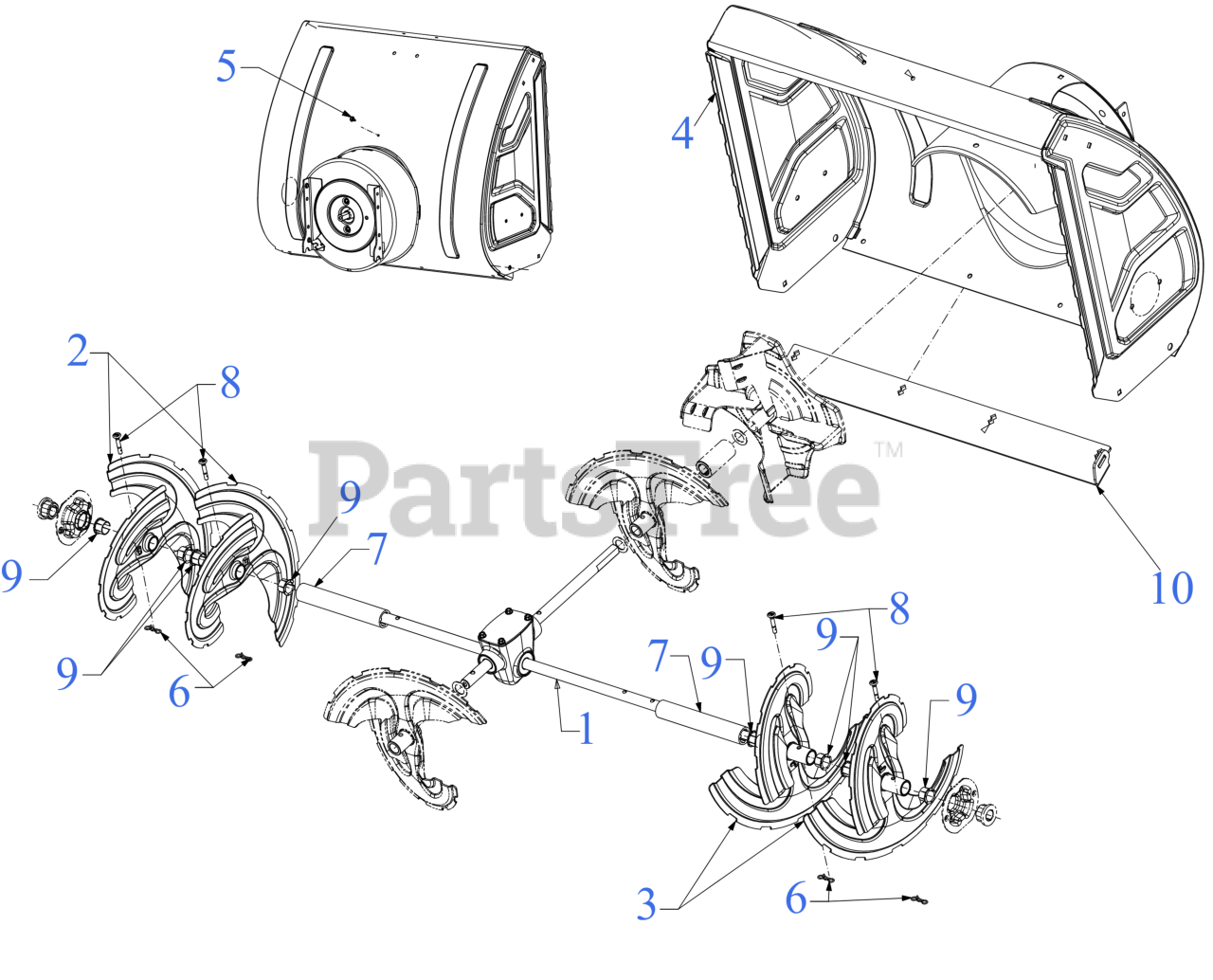

Auger Housing Parts Diagram

  • Title

1

Cub Cadet 918-06061

GEARBOX ASSEMBLY 30"

Note: (See Separate Breakdown)

$427.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05020

30" SPIRAL ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-05020-0637

SPRIAL ASM-RH AUGER - POWDER BLACK (0637)

$94.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05020-0691

SPIRAL ASM-RH AUGER - BLACK JACK (0691)

$94.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05020-0709

SPRL ASM-RH AUGER - MASTERCRAFT GREEN (0709)

$94.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05020-0717

SPRIAL ASM-RH AUGER - SILVER MIST (0717)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05020-4033

SPRIAL ASM-RH AUGER - FLINT MICA (4033)

$85.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05021

30" SPIRAL ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-05021-0637

Sprial Assembly, RH Auger - POWDER BLACK (0637)

$94.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05021-0691

SPIRAL ASM-LH AUGER - BLACK JACK (0691)

$94.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05021-0709

SPRL ASM-LH AUGER - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05021-0717

SPRIAL ASM-RH AUGER - SILVER MIST (0717)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-05021-4033

SPRIAL ASM-RH AUGER - FLINT MICA (4033)

$94.99

$

In Stock, only 2 left!

0

$76.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05194A

30" HD LED AUGER HOUSING ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$420.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-09557

SPACER

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 738-05273

SHEAR PIN (.25 x 1.50)

$2.99

$

In Stock, Qty 19

0

8

Cub Cadet 490-241-C062

Cub Cadet SHEAR PINS (3X SNOW)

Note: Retail Packaged Part

$16.99

$

In Stock, Qty 10

0

8

Cub Cadet 490-241-Y062

Troy-Bilt SHEAR PINS (3X SNOW)

Note: Retail Packaged Part

$17.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0493C

FLANGE BUSHING

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 790-00550

29.50" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00550-0606

PLATE-SHAVE 29.50 - MAJESTIC ORANGE (0606)

$70.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00550-4021

Shave Plate, 29.50 - CUB YELLOW 2 (4021)

$70.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00550-0691

PLATE-SHAVE 29.50 - BLACK JACK (0691)

$70.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00550-0717

PLATE-SHAVE 29.50 - SILVER MIST (0717)

$70.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00550-4033

PLATE-SHAVE 29.50 - FLINT MICA (4033)

$70.99

$

In Stock, only 2 left!

0

$65.99

$

Usually ships in 3-6 days

0
