3ZC11B (9320-1) - Generac 2,200 Watt Portable Generator Briggs & Stratton Engine (93453) Parts Diagram

2,200 Watt Portable Generator

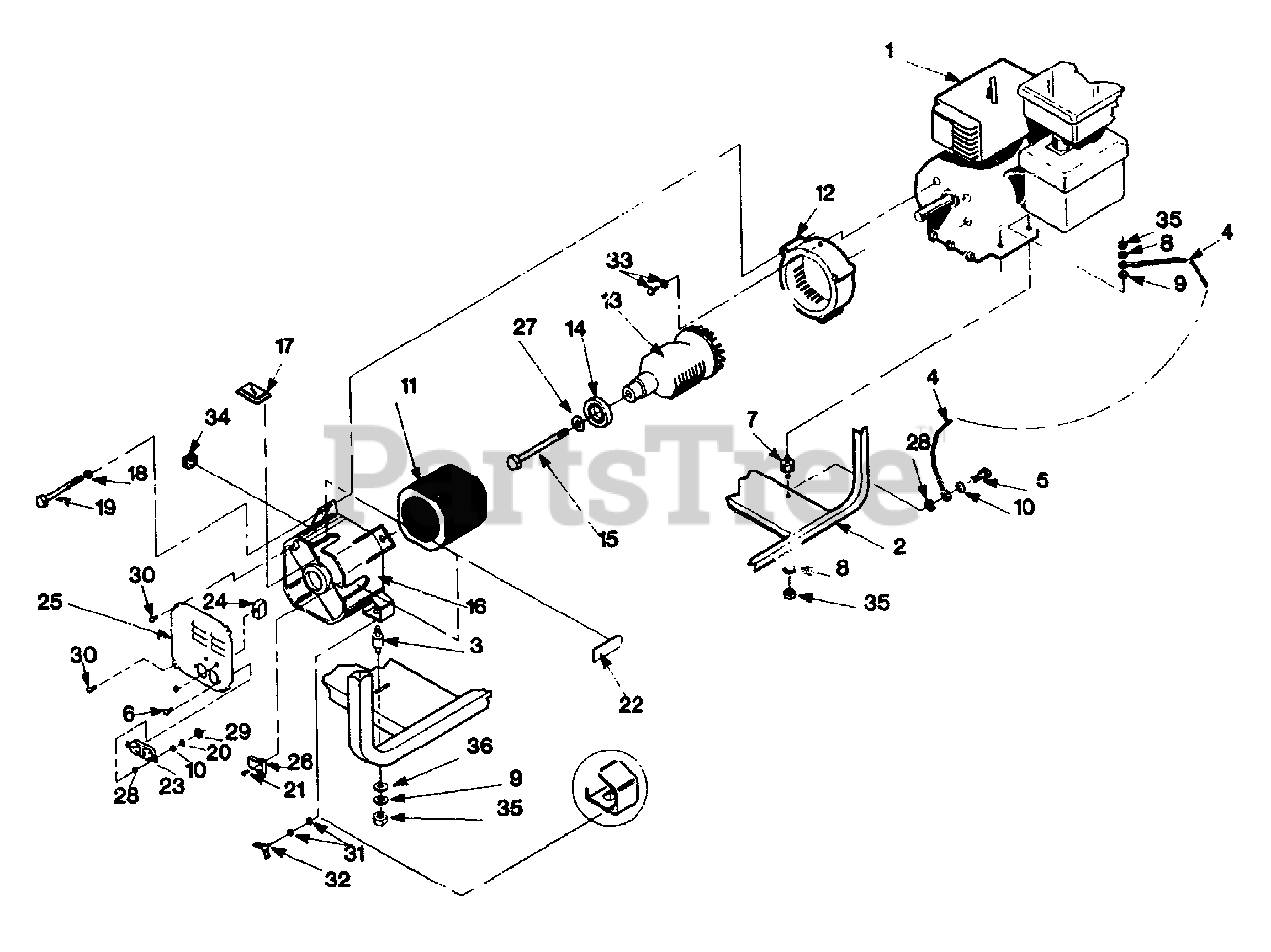

Briggs & Stratton Engine (93453) Parts Diagram

  • Title

1

Briggs & Stratton 76515

Briggs & Stratton engine
(Superseded to 7076515YP)

$10.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 75967

Cradle assembly

$

$

Currently unavailable

3

Briggs & Stratton 85652

Vibration mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

4

Briggs & Stratton 10953621

Ground wire

$

$

Currently unavailable

5

Briggs & Stratton 24911

#8 x 3/8" Taptite screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

M5-0.7 x 10mm Screw

$

$

Not available

7

Briggs & Stratton 85651

Vibration mount
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

M8 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

5/16" Shakeproof washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

#8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 77258

Stator assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365F

Engine adaptor housing
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74713

Rotor assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

5/16"-24 x 6-1/4" Bolt

$

$

Not available

16

Briggs & Stratton 66825B

Rear bearing carrier

$

$

Currently unavailable

17

Briggs & Stratton 66850

Bridge rectifier circuit bd.
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449C

M6-1.0 x 130mm Bolt

$

$

Currently unavailable

20

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 84242

R. Bearing carrier grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120V 20A Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

20 amp Circuit Breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72092

Receptacle panel
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 67451

Flatwasher (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

#8 Lockwasher
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 26850

M6 Shakeproof washer

$

$

Not available

32

Briggs & Stratton 86494

M6 x 16mm Wing screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

5/16"-24 x 3/4" Screw
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

M8-1.25 Hex nut

$

$

Not available

36

Briggs & Stratton 22145

M8 Flatwasher

$

$

Not available
