3ZC12D (9569-2) - Generac 4,000 Watt Portable Generator Generator Replacement Parts (10/95) Parts Diagram

4,000 Watt Portable Generator

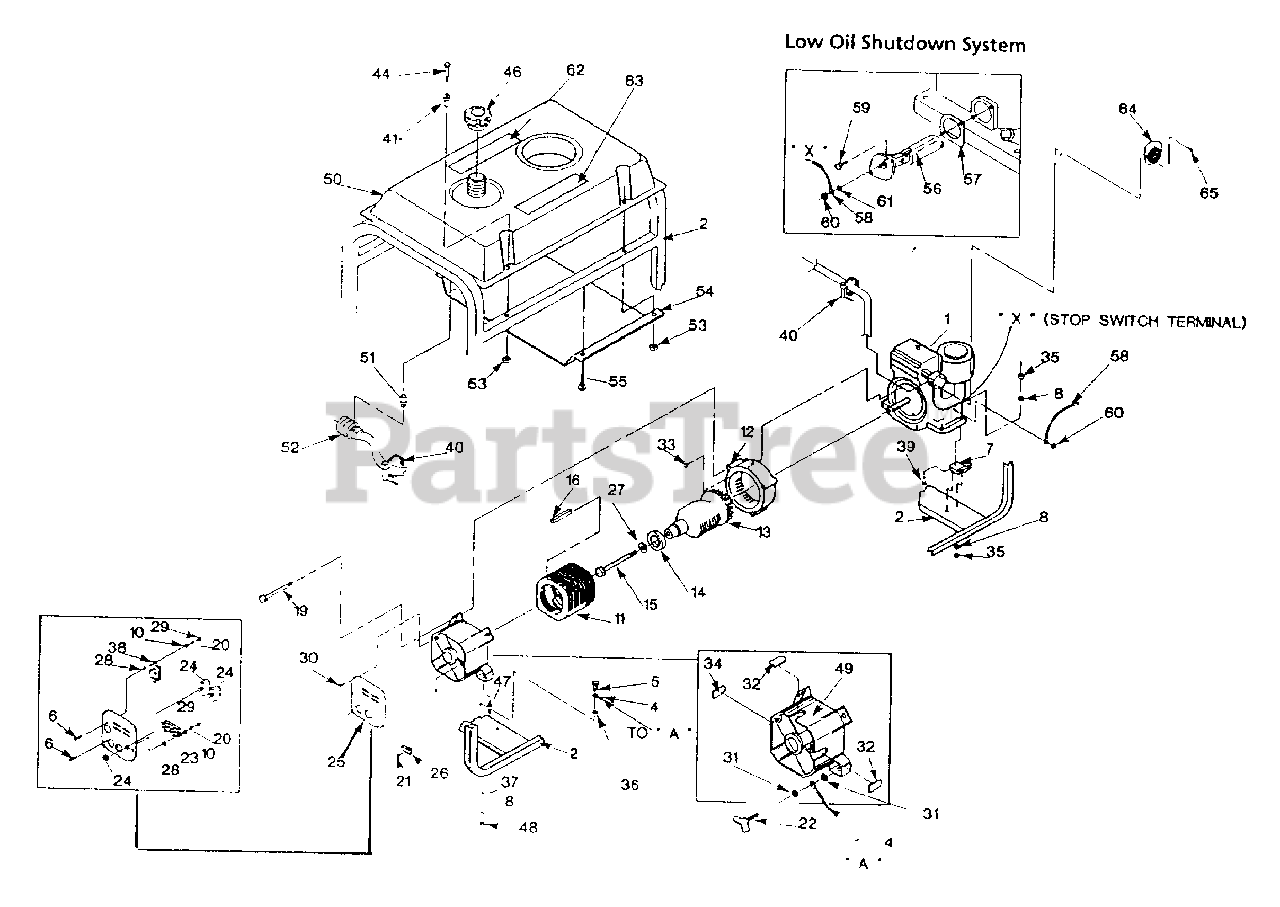

Generator Replacement Parts (10/95) Parts Diagram

  • Title
1

Briggs & Stratton 91009

Briggs & Stratton engine

$

$

Currently unavailable

2

Briggs & Stratton 91020

Cradle assembly
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

4

14353621

Ground wire with terminals

$

$

Not available

5

Briggs & Stratton 86292

#10 Self-drilling capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

7

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 22129

M8 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

#8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91838G

Stator assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365G

Engine adaptor housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91836G

Rotor assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 36180

5/16"-24 x 6-3/8" Rotor bolt
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 81917

Roll pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 86308

M6-1.0 x 115mm Stator bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

21

Briggs & Stratton 66949

M5-0.8 x 15mm Screw

$

$

Currently unavailable

22

Briggs & Stratton 86494

M6 x 16mm Wing screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 volts, 20 amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 87124B

20 amp Circuit breaker

$

$

Currently unavailable

24A

Circuit breaker plate

$

$

Not available

25

Briggs & Stratton 94091

Control panel sheet metal

$

$

Currently unavailable

26

Briggs & Stratton 91825

Brush holder assembly

$

$

Not available

27

Briggs & Stratton 67451

Flatwasher (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

#8 Lockwasher (serrated)
(Superseded to 5023365)

$462.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 26850

1/4" Shakeproof washer

$

$

Not available

32

Briggs & Stratton 84242

Grommet, rear bearing carrier
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

5/16"-24 x 3/4" Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 Hex nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22769

#10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

M8 Lock washer

$

$

Not available

38

Briggs & Stratton 68735

120/240 volt Twistlock outlet

$

$

Not available

39

Briggs & Stratton 76222

M8 x 40mm Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 48031C

1/4" Hose clamp

$

$

Not available

41

Briggs & Stratton 83465

Mounting tank grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 78831B

M6-1.0 x 60mm Capscrew
(Superseded to 78831BGS)

$

$

Not available

46

Briggs & Stratton 94582

Fuel tank cap

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 82857

Vibration mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 25244

5/16-18 Hex nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 66825C

Rear bearing carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

51

Briggs & Stratton 78299

Plastic tank bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 78298

Plastic tank valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 77395

M6 Hex lock nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

54

$

$

Currently unavailable

55

Briggs & Stratton 56892

#10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 88977

Low oil shutdown switch

$

$

Currently unavailable

57

$

$

Not available

58

Briggs & Stratton 91842A

LOS wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 32713

#10-32 x 5/8" Screw
(Superseded to 32713GS)

$3.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 22471

#8-32 Nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 92982

Decal - danger instructions
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 93826

Decal - start instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 77601

Spark arrestor screen
(Superseded to 77601GS)

$32.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 77836

Screw
(Superseded to 77836GS)

Note: (B & S #93705)

$8.49

$

Usually ships in 2-12 days

0
