4-1040 - Toro Pathfinder Snow Thrower (1972)

Pathfinder Snow Thrower

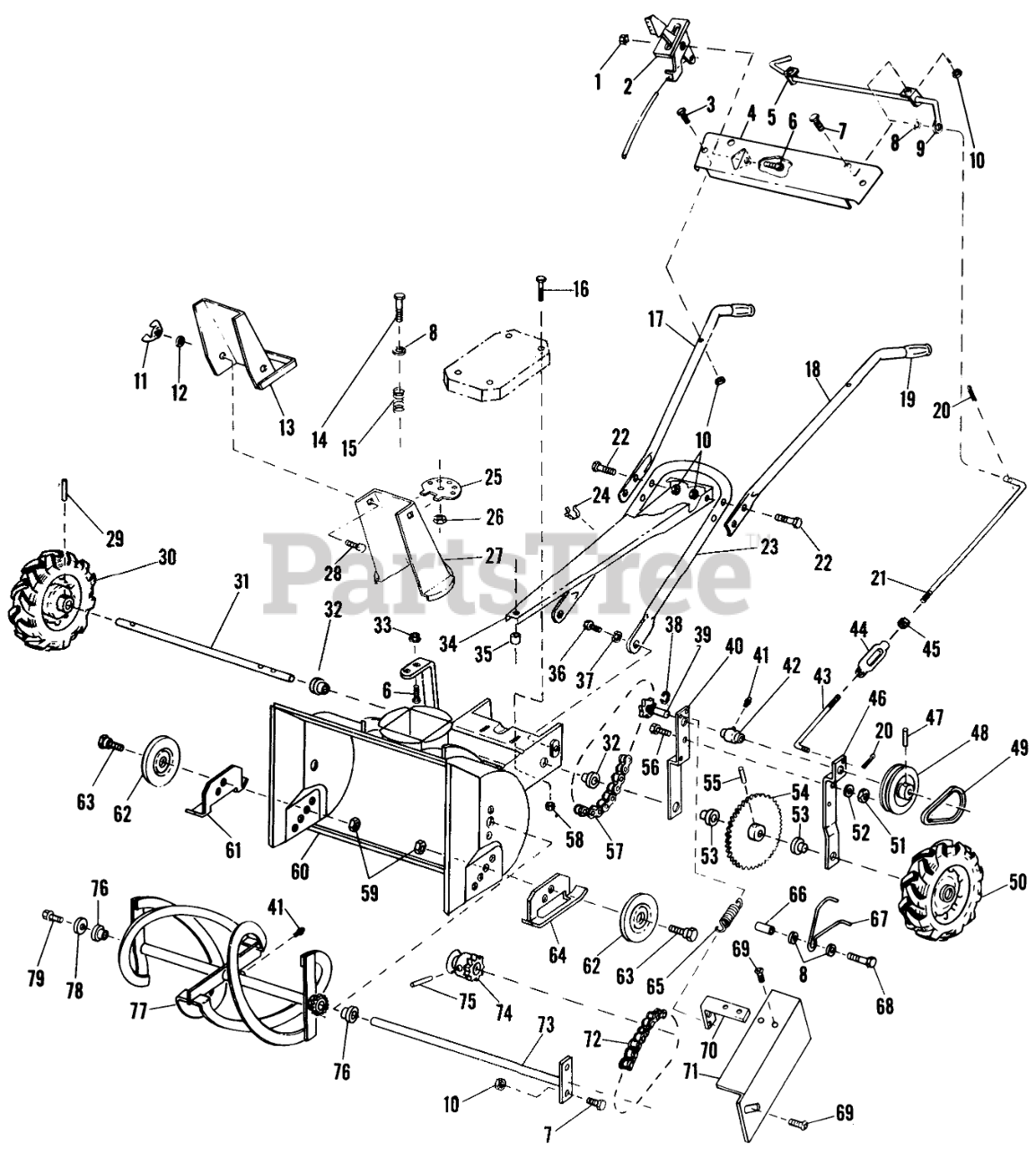

4-1040 - Toro Pathfinder Snow Thrower (1972) > Parts Diagrams (1) > SNOW THROWER PARTS LIST

  • Title
915968-4

1

Nut 1/4-20 Keps

Part# 915968-4

OEM Warranty Repair Part for Toro

Currently unavailable

102438

2

Control Ass-y. w/Cable

Part# 102438

OEM Warranty Repair Part for Toro

Currently unavailable

900017-4

3

Bolt-Carriage 1/4-20-1 1/4

Part# 900017-4

OEM Warranty Repair Part for Toro

Currently unavailable

102439

4

Brace-Control

Part# 102439

OEM Warranty Repair Part for Toro

Currently unavailable

102440

5

Bracket-Clutch Control

Part# 102440

OEM Warranty Repair Part for Toro

Currently unavailable

910838-4

6

Screw-Pan Hd. 1/4-20

Part# 910838-4

OEM Warranty Repair Part for Toro

Currently unavailable

908001-4

7

Bolt, 1/4-x 1/2

Part# 908001-4

OEM Warranty Repair Part for Toro

Currently unavailable

920008-4

8

Washer

Part# 920008-4

OEM Warranty Repair Part for Toro

Currently unavailable

102441

9

Handle-Clutch Control

Part# 102441

OEM Warranty Repair Part for Toro

Not available

915111-6

10

Nut-Nylok

Part# 915111-6

OEM Warranty Repair Part for Toro

Currently unavailable

915661-4

11

Nut, 1/4-20

Part# 915661-4

OEM Warranty Repair Part for Toro

Currently unavailable

920081-4

12

Lockwasher

Part# 920081-4

OEM Warranty Repair Part for Toro

Currently unavailable

102442

13

Top Chute Ass-y.

Part# 102442

OEM Warranty Repair Part for Toro

Currently unavailable

908008-4

14

Bolt Hex 1/4-20 x 1 3/4

Part# 908008-4

OEM Warranty Repair Part for Toro

Currently unavailable

102443

15

Spring-Chute Tension

Part# 102443

OEM Warranty Repair Part for Toro

Currently unavailable

908021-4

16

Bolt 5/16-18 x 1/2

Part# 908021-4

OEM Warranty Repair Part for Toro

Currently unavailable

102444

17

Handle-Right Hand

Part# 102444

OEM Warranty Repair Part for Toro

Currently unavailable

102445

18

Handle-Left Hand

Part# 102445

OEM Warranty Repair Part for Toro

Currently unavailable

102446

19

Grip-Handle

Part# 102446

OEM Warranty Repair Part for Toro

Currently unavailable

932000-4

20

Cotter Pin

Part# 932000-4

OEM Warranty Repair Part for Toro

Currently unavailable

102447

21

Rod-Clutch Control-Upper

Part# 102447

OEM Warranty Repair Part for Toro

Currently unavailable

908007-4

22

Bolt 1/4-20 x 1 1/2

Part# 908007-4

OEM Warranty Repair Part for Toro

Currently unavailable

102448

23

Yoke

Part# 102448

OEM Warranty Repair Part for Toro

Currently unavailable

102449

24

Clip-Control Cable

Part# 102449

OEM Warranty Repair Part for Toro

Currently unavailable

102450

25

Plate-Chute Adjusting

Part# 102450

OEM Warranty Repair Part for Toro

Currently unavailable

102451

26

Nut-Hex Flange Lock 1/4-20

Part# 102451

OEM Warranty Repair Part for Toro

Currently unavailable

102452

27

Body-Chute Ass-y.

Part# 102452

OEM Warranty Repair Part for Toro

Currently unavailable

900015-4

28

Bolt-Carriage 1/4-20 x 3/4

Part# 900015-4

OEM Warranty Repair Part for Toro

Currently unavailable

933269-4

29

Pin-Spirol 1/4 x 1 1/4

Part# 933269-4

OEM Warranty Repair Part for Toro

Currently unavailable

102453

30

Wheel Ass-y. R.H.-10 x 2.75

Part# 102453

OEM Warranty Repair Part for Toro

Currently unavailable

102454

31

Axle-Snow Thrower

Part# 102454

OEM Warranty Repair Part for Toro

Currently unavailable

102455

32

Bushing-Axle

Part# 102455

OEM Warranty Repair Part for Toro

Currently unavailable

915968-4

33

Nut 1/4-20 Keps

Part# 915968-4

OEM Warranty Repair Part for Toro

Currently unavailable

102456

34

Bracket-Yoke Support

Part# 102456

OEM Warranty Repair Part for Toro

Currently unavailable

102457

35

Spacer-Handle Brace

Part# 102457

OEM Warranty Repair Part for Toro

Currently unavailable

908030-4

36

Bolt Hex 3/8 16 x 1/2

Part# 908030-4

OEM Warranty Repair Part for Toro

Currently unavailable

908083-4

37

Washer-Lock 3/8

Part# 908083-4

OEM Warranty Repair Part for Toro

Currently unavailable

4736

38

RING LAM L 262

Part# 4736

OEM Warranty Repair Part for Toro

Not available

102458

39

Sprocket-Idler Pulley Shaft

Part# 102458

OEM Warranty Repair Part for Toro

Currently unavailable

102459

40

Arm-Drive Sprocket Inner

Part# 102459

OEM Warranty Repair Part for Toro

Currently unavailable

510232

41

Cover-Rubber

Part# 510232

OEM Warranty Repair Part for Toro

Currently unavailable

102460

42

Bearing-Idler Pulley Shaft

Part# 102460

OEM Warranty Repair Part for Toro

Not available

102461

43

Rod-Clutch Lower

Part# 102461

OEM Warranty Repair Part for Toro

Currently unavailable

102462

44

Turnbuckle

Part# 102462

OEM Warranty Repair Part for Toro

Currently unavailable

915112-6

45

Nut-Nylok

Part# 915112-6

OEM Warranty Repair Part for Toro

Currently unavailable

102463

46

Spring Tension

Part# 102463

OEM Warranty Repair Part for Toro

Currently unavailable

933172

47

SPIROL PIN

Part# 933172

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.35

102464

48

Pulley

Part# 102464

OEM Warranty Repair Part for Toro

Not available

102465

49

Belt-Drive 3L-21

Part# 102465

OEM Warranty Repair Part for Toro

Not available

102466

50

Wheel Ass-y. L.H.-10 x 2.75

Part# 102466

OEM Warranty Repair Part for Toro

Currently unavailable

915112-6

51

Nut-Nylok

Part# 915112-6

OEM Warranty Repair Part for Toro

Currently unavailable

920082-4

52

Lockwasher

Part# 920082-4

OEM Warranty Repair Part for Toro

Currently unavailable

102467

53

Bushing-Drive Sprocket

Part# 102467

OEM Warranty Repair Part for Toro

Currently unavailable

102468

54

Sprocket-Drive

Part# 102468

OEM Warranty Repair Part for Toro

Currently unavailable

933150

55

Pin-Roll 1/8 x 5/8

Part# 933150 (Superseded to 32121-73)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.21

908019-4

56

Bolt 5/16-18 x 1

Part# 908019-4

OEM Warranty Repair Part for Toro

Currently unavailable

102469

57

Chain w/Master Link

Part# 102469

OEM Warranty Repair Part for Toro

Currently unavailable

915972-4

58

Nut 5/16-18 Keps

Part# 915972-4

OEM Warranty Repair Part for Toro

Currently unavailable

915113-6

59

Nut

Part# 915113-6

OEM Warranty Repair Part for Toro

Currently unavailable

102470

60

Body Ass-y.-Snow Thrower

Part# 102470

OEM Warranty Repair Part for Toro

Currently unavailable

102471

61

Foot-Slide R.H.

Part# 102471

OEM Warranty Repair Part for Toro

Currently unavailable

102472

62

Wheel-Front Adjusting

Part# 102472

OEM Warranty Repair Part for Toro

Currently unavailable

102473

63

Screw-Hex Shoulder

Part# 102473

OEM Warranty Repair Part for Toro

Currently unavailable

102474

64

Foot-Slide L.H.

Part# 102474

OEM Warranty Repair Part for Toro

Currently unavailable

102475

65

Spring-Clutch

Part# 102475

OEM Warranty Repair Part for Toro

Not available

102476

66

Spacer-Belt Guide

Part# 102476

OEM Warranty Repair Part for Toro

Currently unavailable

102477

67

Guide-Belt

Part# 102477

OEM Warranty Repair Part for Toro

Currently unavailable

908010-4

68

Bolt 1/4-20 x 2 1/4

Part# 908010-4

OEM Warranty Repair Part for Toro

Currently unavailable

926630-4

69

Screw Hex-Self-Tapping 8-32 x 3/8"

Part# 926630-4

OEM Warranty Repair Part for Toro

Currently unavailable

102478

70

Bracket-Guard Mounting

Part# 102478

OEM Warranty Repair Part for Toro

Not available

102479

71

Cover-Belt Guard

Part# 102479

OEM Warranty Repair Part for Toro

Currently unavailable

102480

72

Chain-w/Master Link

Part# 102480

OEM Warranty Repair Part for Toro

Currently unavailable

102481

73

Shaft Ass-y.

Part# 102481

OEM Warranty Repair Part for Toro

Currently unavailable

102482

74

Sprocket Ass-y.

Part# 102482

OEM Warranty Repair Part for Toro

Currently unavailable

102483

75

Pin-Brass Shear

Part# 102483

OEM Warranty Repair Part for Toro

Not available

102484

76

Bearing

Part# 102484

OEM Warranty Repair Part for Toro

Not available

102485

77

Auger Ass-y.

Part# 102485

OEM Warranty Repair Part for Toro

Currently unavailable

102486

78

Washer-Flat-.327ID x 1 1/8 OD

Part# 102486

OEM Warranty Repair Part for Toro

Currently unavailable

926720-4

79

Screw 5/16-18 x 3/4 S.T.

Part# 926720-4

OEM Warranty Repair Part for Toro

Currently unavailable

102325

Decal, Wheel Horse Pathmaker

Part# 102325

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable

102326

Decal, 4 H.P.

Part# 102326

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable

4410

Decal

Part# 4410 (Superseded to 102832)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

MW8378

Decal, Safety-Chute

Part# MW8378

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable
