40 HC (59AE202-195) - MTD Pro Hedge Clipper General Assembly Parts Diagram

Pro Hedge Clipper

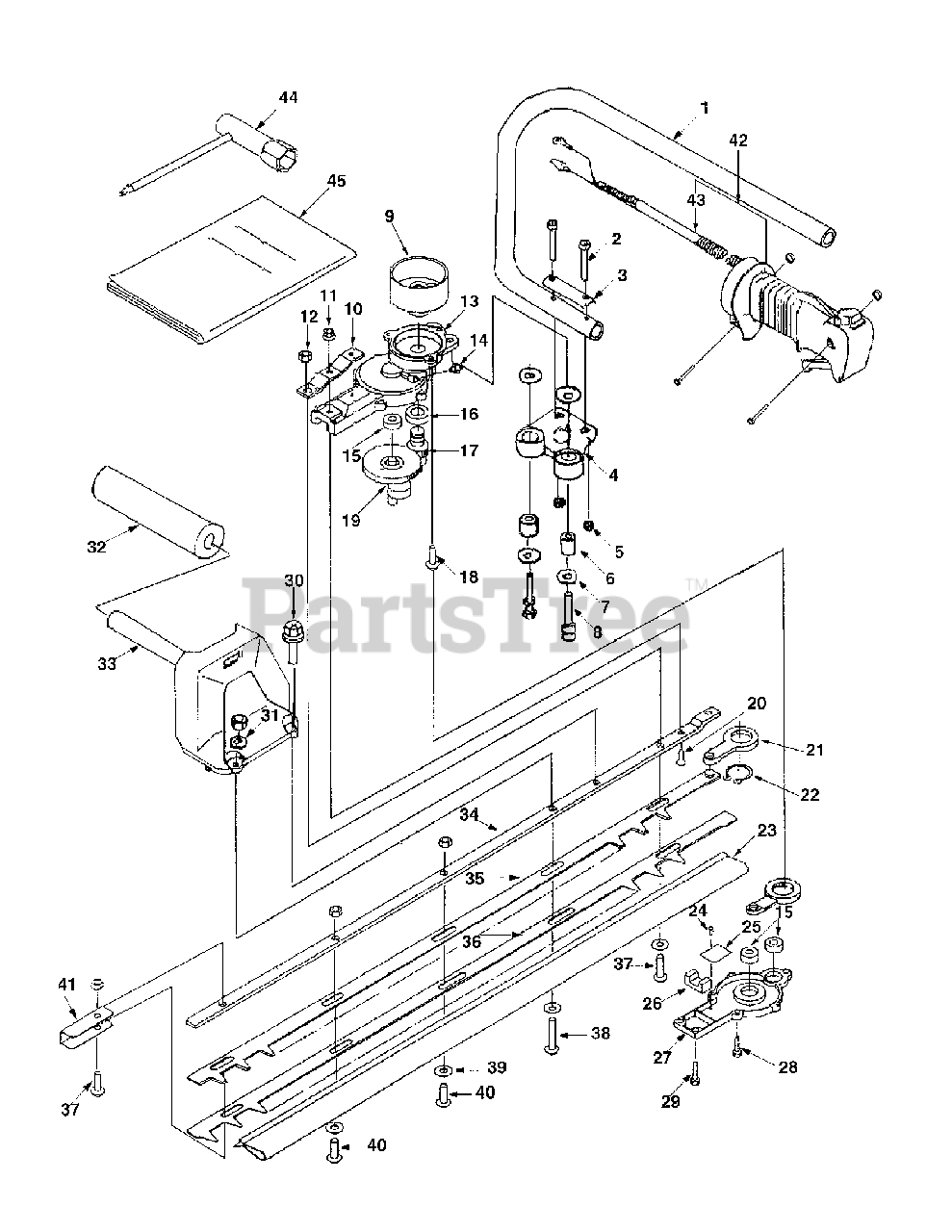

General Assembly Parts Diagram

  • Title

1

MTD IM-728510030

Handle

$

$

Not available

2

MTD IM-010709011

Bolt; M5 x 30

$

$

Not available

3

MTD IM-728610010

Holder, Handle

$

$

Not available

4

MTD IM-728610020

Holder, Handle

$

$

Not available

5

MTD IM-020100005

Nut; M5

$

$

Not available

6

MTD IM-728970110

Coiler

$

$

Not available

7

MTD IM-026109009

Washer

$

$

Not available

8

MTD IM-720973184

Bolt; M6 x 26

$

$

Not available

9

MTD IM-728400010

Drum, Clutch

$

$

Not available

10

MTD IM-728640010

Plate

$

$

Not available

11

MTD IM-023100005

Nut

$

$

Not available

12

MTD IM-728970020

Nut

$

$

Not available

13

MTD IM-728210030

Case, Gear

$

$

Not available

14

MTD IM-728970100

Grease, Nipples

$

$

Not available

15

MTD IM-728970010

Ball Bearing; 608Z

$

$

Not available

16

MTD IM-040146001

Ball Bearing; 6001

$

$

Not available

17

MTD IM-728310010

Gear, Pinion

$

$

Not available

18

MTD IM-720973178

Screw; M6 x 14

$

$

Not available

19

MTD IM-728320010

Gear, Crank

$

$

Not available

20

MTD IM-015300520

Screw; M5 x 20

$

$

Not available

21

MTD IM-728350010

Rod

$

$

Not available

22

MTD IM-036100026

Snap Ring

Note: NLA

$

$

Not available

23

MTD IM-728720030

Cover, Blade

$

$

Not available

24

MTD IM-015100305

Screw; M3 x 5

$

$

Not available

25

MTD IM-728640020

Plate

$

$

Not available

26

MTD IM-198133100

Felt

$

$

Not available

27

MTD IM-728210020

Case, Gear

$

$

Not available

28

MTD IM-010709008

Bolt; M5 x 16

$3.49

$

In Stock, only 2 left!

0

29

MTD IM-010709009

Bolt; M5 x 20

$

$

Not available

30

MTD IM-728970120

Bolt; M6 x 18

$

$

Not available

31

MTD IM-728970130

Washer

$

$

Not available

32

MTD IM-728970140

Grip

$

$

Not available

33

MTD IM-728500020

Handle

$

$

Not available

34

MTD IM-728640070

Plate

$

$

Not available

35

MTD IM-728700050

Blade

$

$

Not available

36

MTD IM-728700060

Blade

$

$

Not available

37

MTD IM-728970050

Screw

$

$

Not available

38

MTD IM-728970150

Screw

$

$

Not available

39

MTD IM-728970030

Washer

$

$

Not available

40

MTD IM-728970040

Screw

$7.99

$

Usually ships in 3-6 days

0

41

MTD IM-728640060

Plate

$

$

Not available

42

MTD IM-125034180

Lever Ass'y., Throttle

$

$

Not available

43

MTD IM-125504890

Wire, Throttle

$

$

Not available

44

MTD IM-720983371

Spanner, Box

$

$

Not available

45

MTD IM-100814500

Instruction Book

Note: NLA

$

$

Currently unavailable
