400 (190-400-100) - Cub Cadet 8hp Rear Tiller Attachment att Starter, Flywheel & Magneto Parts Diagram

8hp Rear Tiller Attachment

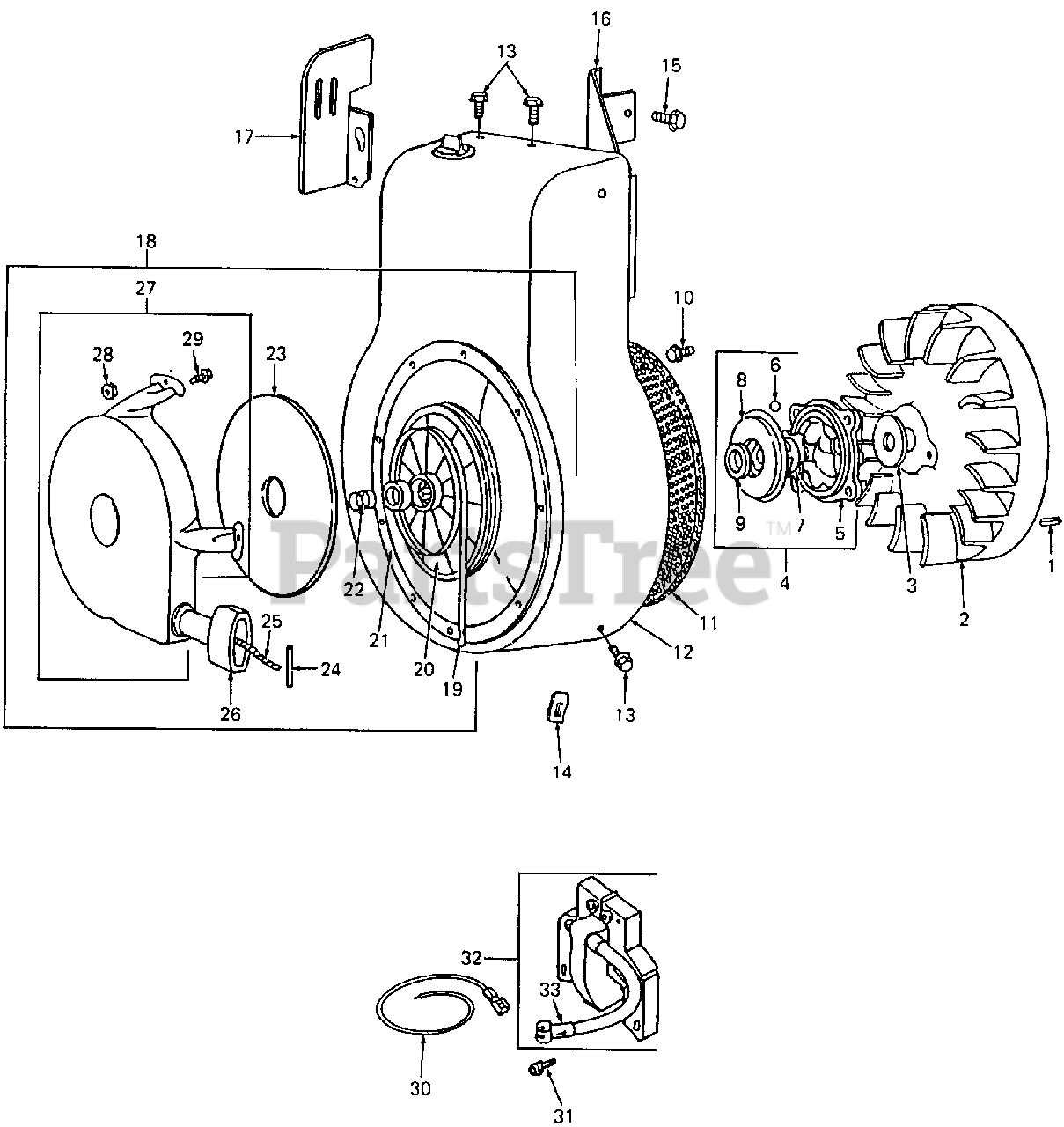

Starter, Flywheel & Magneto Parts Diagram

  • Title

1

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-298260

Flywheel

$

$

Not available

3

Cub Cadet BS-224061

Washer, Spring

$

$

Not available

4

Cub Cadet BS-399671

Clutch Assy, Starter

$34.99

$

In Stock, Qty 15

0

5

Cub Cadet BS-394897

Housing, Starter Clutch

$36.99

$

In Stock, only 2 left!

0

6

Cub Cadet BS-63770

Ball, Clutch

$

$

Not available

7

Cub Cadet BS-298799

Ratchet, Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-221653

Washer, Retainer

$

$

Currently unavailable

9

Cub Cadet BS-68238

Washer, Ratchet Sealing

$

$

Not available

10

Cub Cadet BS-93042

Screw, Sem

$

$

Currently unavailable

11

Cub Cadet BS-221796

Screen, Starter

$

$

Not available

12

Cub Cadet BS-491596

Housing, Blower

$

$

Not available

13

Cub Cadet 710-3049

Screw, Sem

$

$

Not available

14

Cub Cadet BS-222598

Anchor, Spring

$

$

Not available

15

Cub Cadet BS-93777

Screw, Sem

$

$

Currently unavailable

16

Cub Cadet BS-222475

Guard, Flywheel

$

$

Not available

17

Cub Cadet BS-221760

Guide, Air

$

$

Not available

18

Cub Cadet BS-390391

Starter Assy
(Superseded to BS-693900)

$131.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-490179

Spring, Starter

$14.99

$

In Stock, Qty 13

0

20

Cub Cadet BS-295871

Pulley, Starter

$14.99

$

In Stock, only 4 left!

0

21

Cub Cadet BS-230543

Adapter, Ratchet Spring
(Superseded to BS-691920)

$11.99

$

In Stock, only 1 left!

0

22

Cub Cadet BS-260414

Spring, Ratchet

$

$

Not available

23

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, only 2 left!

0

24

Cub Cadet BS-230228

Pin, Starter Rope

$

$

Not available

25

Cub Cadet BS-66884

Rope, Starter, 63" Lg
(Superseded to BS-692188)

$8.49

$

In Stock, only 4 left!

0

26

Cub Cadet BS-66728

Grip, Starter Rope
(Superseded to BS-490652)

$5.49

$

In Stock, Qty 8

0

27

Cub Cadet BS-393576

Housing, Starter

$85.99

$

In Stock, only 2 left!

0

28

Cub Cadet BS-92987

Nut, Hex
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

29

Cub Cadet BS-94128

Screw, Sem Starter Housing Mtg
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 18

0

30

Cub Cadet BS-398838

Wire, Ground

$7.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-93381

Screw, Sem, Armature Mtg

$

$

Not available

32

Cub Cadet BS-398811

Armature, Magneto

$63.99

$

In Stock, Qty 9

0

33

Cub Cadet BS-221798

Terminal, Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
