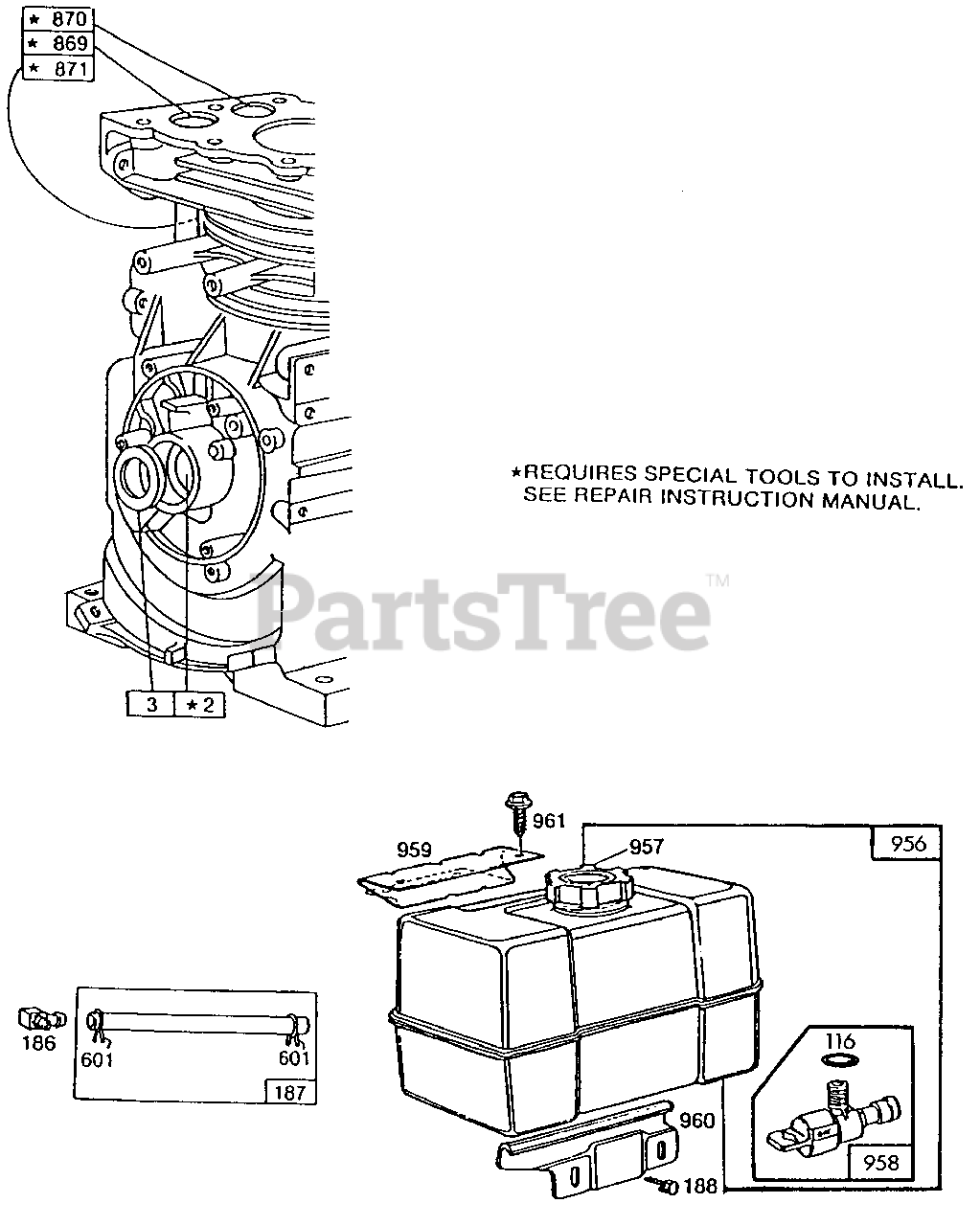

400 (190-400-100) - Cub Cadet 8hp Rear Tiller Attachment Engine (1988) B&S 8.0 HP-190402-3006-01 Part 2 Parts Diagram

8hp Rear Tiller Attachment Engine

B&S 8.0 HP-190402-3006-01 Part 2 Parts Diagram

  • Title
2

Cub Cadet BS-295962

Bushing-Cylinder

Note: Note: Requires special tools for installation .

$

$

Currently unavailable

3

$

$

Not available

116

$

$

Not available

186

Cub Cadet BS-67218

Connector-Fuel Pipe

$

$

Not available

187

Cub Cadet BS-296004

Pipe-Fuel (Flexible) 23" Long
(Superseded to BS-791745)

$10.99

$

In Stock, Qty 6

0

188

Cub Cadet BS-93535

Screw-Sem

$

$

Not available

601

Cub Cadet BS-93053

Clamp-Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-211661

Seat-Intake Valve

Note: (Standard)

$

$

Not available

870

Cub Cadet BS-211661

Seat-Exhaust Valve

Note: (Standard)

$

$

Not available

871

Cub Cadet BS-231218

Guide-Exhaust or Intake Valve

$14.99

$

In Stock, only 2 left!

0

956

Cub Cadet BS-490572

Tank Assembly-Fuel
(Superseded to BS-691993)

$166.99

$

In Stock, Qty 13

0

957

Cub Cadet BS-397975

Cap-Fuel Tank
(Superseded to BS-795027)

$10.99

$

In Stock, only 3 left!

0

958

Cub Cadet BS-399517

Valve Ass'y.-Fuel Shut-Off
(Superseded to BS-698182)

$

$

Not available

959

Cub Cadet BS-223462

Bracket-Fuel Tank (Upper)

$

$

Not available

960

Cub Cadet 492990

Bracket-Fuel Tank (Lower)

$

$

Currently unavailable

961

Cub Cadet BS-94095

Screw-Tank Mounting

$

$

Not available
