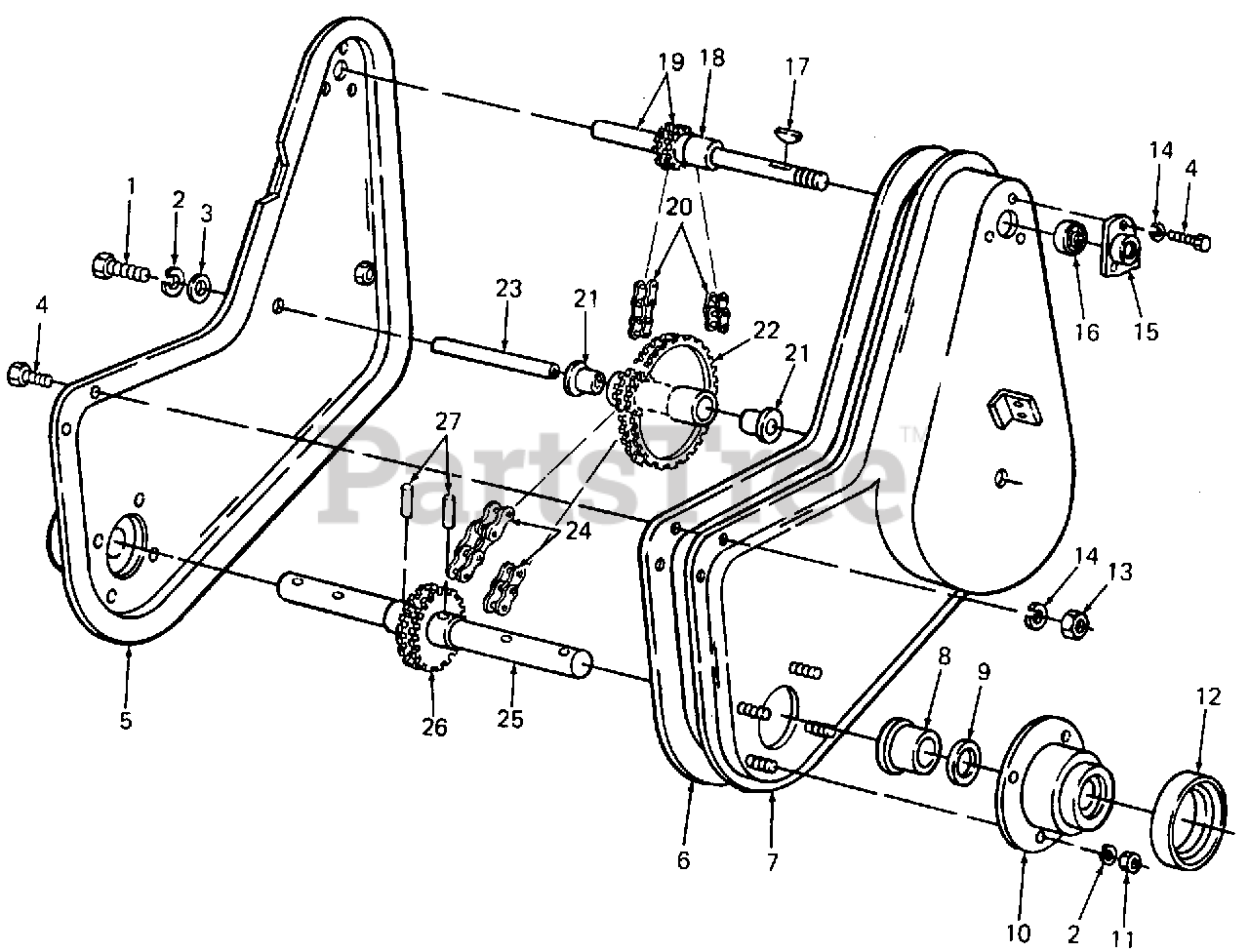

400 (190-400-100) - Cub Cadet 8hp Rear Tiller Attachment Chain Case Parts Diagram

8hp Rear Tiller Attachment

Chain Case Parts Diagram

  • Title

1

Cub Cadet 710-0118

Screw, Hex Cap, 5/16-18 X .75 Lg
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0195

Washer, Flat, .344 X .88 X .040 Thk

$

$

Not available

4

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 14895

R.H. Housing
(Superseded to 14895-0637)

Variations

Cub Cadet 14895-0498

HOUSING (RH) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 721-0119

Gasket

$

$

Not available

7

Cub Cadet 14894

L.H. Housing

Variations

Cub Cadet 14894-0498

HOUSING (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14894-0637

HOUSING (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 748-0194

Bearing, Flange

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 721-0117

Seal, Oil

$

$

Not available

10

Cub Cadet 04530

Housing, Cast Bearing
(Superseded to 94530)

$

$

Not available

11

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

12

Cub Cadet 04973

Cover, Dust Cap

$

$

Not available

13

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

15

Cub Cadet 05034

Housing, Bearing
(Superseded to 05034A)

$

$

Not available

16

Cub Cadet 741-0155

Ball Bearing
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0136

Key, #6 Hi Pro, 5/32 X 5/8

$

$

Not available

18

Cub Cadet 748-0192

Spacer

$7.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 14892

Shaft Assy, Input w/Sprocket
(Superseded to 94892)

$

$

Not available

20

Cub Cadet 713-0149

Chain Assy, #35-2 3/8 Pitch X 97 Links

$

$

Not available

21

Cub Cadet 748-0855

Bearing, Flange

$8.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 04529

Sprocket Assy, Double

$

$

Not available

23

Cub Cadet 711-0504

Shaft, Sprocket

$

$

Not available

24

Cub Cadet 713-0150

Chain Assy, #40-2 1/2 Pitch X 67 Links
(Superseded to 913-0150)

$110.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 711-0506

Shaft, Tine

$

$

Not available

26

Cub Cadet 717-0189

Sprocket Assy

$

$

Not available

27

Cub Cadet 715-0125

Pin, Hvy Duty Spirol Spring, 3/8 X 2.0 Lg
(Superseded to 915-0125)

$11.99

$

Usually ships in 3-6 days

0
