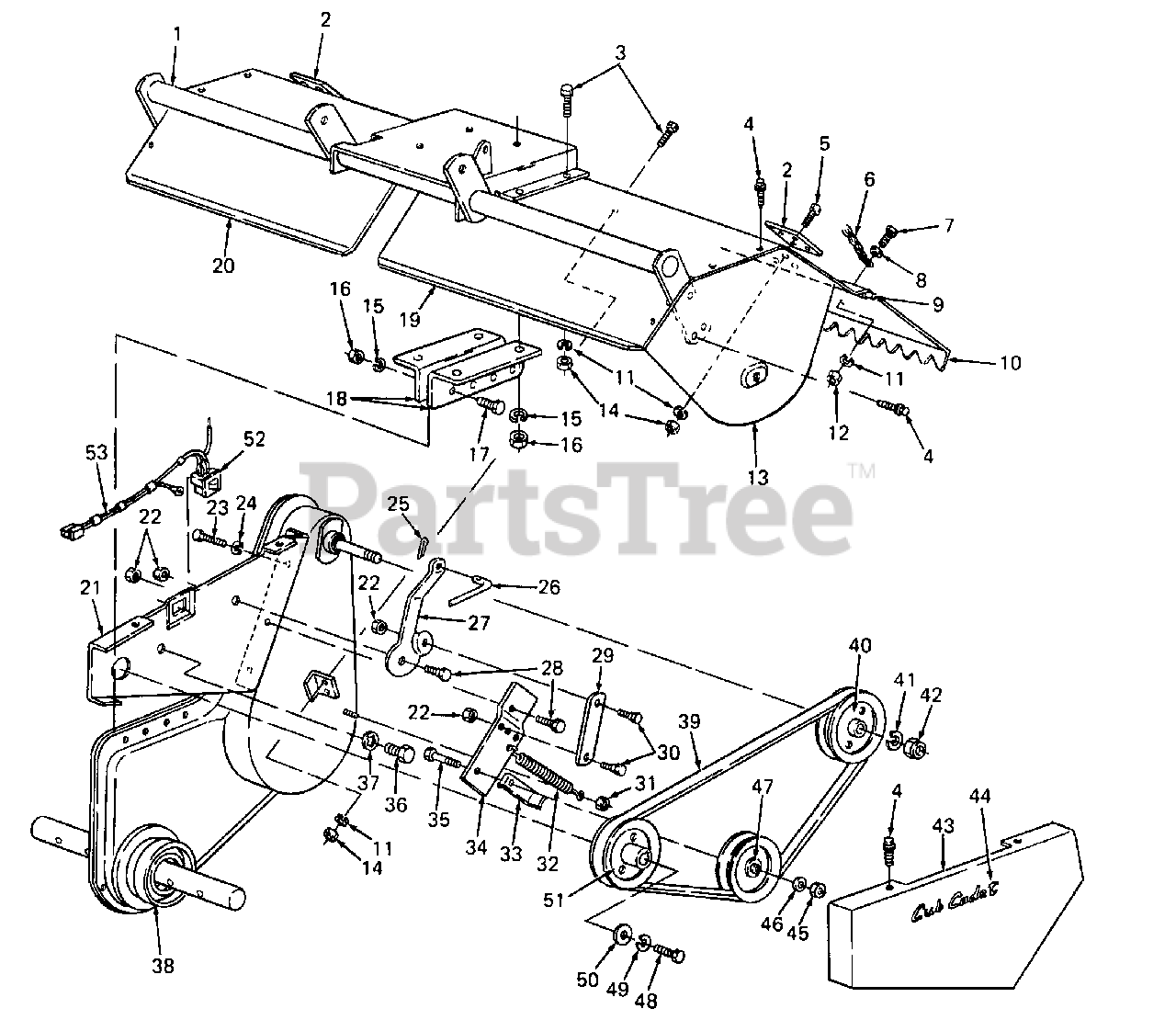

400 (190-400-100) - Cub Cadet 8hp Rear Tiller Attachment Support Frame Parts Diagram

8hp Rear Tiller Attachment

Support Frame Parts Diagram

  • Title

1

Cub Cadet 04966

Support Assembly, Frame
(Superseded to 04966A)

Variations

04966-0498

Cub Cadet 04966-0498

USE 04966A-0498 FRAME ASSY-SU - OLD CUB YELLOW (0498)

$

$

Not available

04966-0637

Cub Cadet 04966-0637

FRAME ASSEMBLY-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 14891

Brace, Tine Shield

Variations

14891-0498

Cub Cadet 14891-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

14891-0637

Cub Cadet 14891-0637

BRACE TINE - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0195

Screw, Hex Cap, 1/4-28 X .62 Lg
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0776A

Screw, Hex Wash Hd Tapp, 1/4 X .62 Lg
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg

$5.99

$

In Stock, Qty 7

0

6

Cub Cadet 727-0225

Chain, #2 X 20 in. Lg

$

$

Not available

7

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 747-0340

Rod, L.H. Flap

$

$

Currently unavailable

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.00 Lg

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 747-0339

Rod, R.H. Flap

$

$

Currently unavailable

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.00 Lg

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 04985

Flap, L.H. Shield

Variations

04985-0498

Cub Cadet 04985-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

04985-0637

Cub Cadet 04985-0637

FLAP-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 04986

Flap, R.H. Shield

Variations

04986-0498

Cub Cadet 04986-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

04986-0637

Cub Cadet 04986-0637

FLAP-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777-4455

Label, Caution

$

$

Currently unavailable

11

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

12

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 04975

Plate, L.H. Side
(Superseded to 04975-0637)

Variations

04975-0498

Cub Cadet 04975-0498

USE 04975-0637 PLATE ASSY-SID - OLD CUB YELLOW (0498)

$

$

Not available

04975-0637

Cub Cadet 04975-0637

PLATE ASSY-SIDE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 04976

Plate, R.H. Side

Variations

04976-0498

Cub Cadet 04976-0498

PLATE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

04976-0637

Cub Cadet 04976-0637

PLATE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 04519

Bracket, Engine Mounting

$

$

Not available

19

Cub Cadet 04983

Shield, L.H. Tine

Variations

04983-0498

Cub Cadet 04983-0498

SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

$

$

20

Cub Cadet 04984

Shield, R.H. Tine

Variations

04984-0498

Cub Cadet 04984-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

04984-0637

Cub Cadet 04984-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 04988

Brkt, Clutch Support

$

$

Currently unavailable

22

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

23

Cub Cadet 710-0201

Screw, Hex Cap, 3/8-16 X .62 Lg

$

$

Not available

24

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 11

0

25

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.00 Lg

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 747-0379

Rod, Clutch

$

$

Not available

27

Cub Cadet 04987

Lever, Clutch

Variations

04987-0637

Cub Cadet 04987-0637

LEVER-CLUT - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 738-0140

Screw, Shoulder, .437 Dia X .180

$5.99

$

In Stock, Qty 8

0

29

Cub Cadet 747-0342

Link, Clutch

Variations

747-0342-0637

Cub Cadet 747-0342-0637

CLUTCH LINK - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 738-0155

Screw, Shoulder, .437 Dia X .162
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-0214

Nut, Hex Center Lock, 3/8-24

$6.99

$

In Stock, Qty 18

0

32

Cub Cadet 732-0384

Spring, Extension, .62 OD X 6.12 Lg
(Superseded to 932-0384)

$

$

Not available

33

Cub Cadet 13819

Idler, Belt Guard

Variations

13819-0637

Cub Cadet 13819-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 04992

Bracket, Idler

Variations

04992-0637

Cub Cadet 04992-0637

IDLER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.99

$

In Stock, only 3 left!

0

36

Cub Cadet 710-0777

Screw, Hex Cap, 1/2-20 X .88 Lg GR5

$

$

Currently unavailable

37

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 9

0

38

Cub Cadet 04991

Chain Case Assy Complete

Note: (For Component Parts See Breakdown Under Chain Case Assembly)

Variations

04991-0498

Cub Cadet 04991-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

04991-0637

Cub Cadet 04991-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

04991-0716

Cub Cadet 04991-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

39

Cub Cadet 754-0253

Belt, 1/2 X 43.0 Lg

$

$

Not available

40

Cub Cadet 756-0351

Pulley, 5/8 V X .625 ID X 4.75 OD

$

$

Not available

41

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.99

$

In Stock, only 3 left!

0

42

Cub Cadet 712-0221

Nut, Hex Insert Lock, 5/8-18

$

$

Not available

43

Cub Cadet 14298

Shroud, Clutch
(Superseded to 14298-0637)

Variations

14298-0498

Cub Cadet 14298-0498

USE 14298-0637 SHROUD-CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

14298-0637

Cub Cadet 14298-0637

SHROUD-CLUTCH SUP - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777-1527

Label, Tine

$

$

Not available

44

Cub Cadet 731-3053A

Graphic, Cub Cadet Script
(Superseded to 931-3053A)

$26.99

$

In Stock, only 2 left!

0

45

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.99

$

In Stock, only 2 left!

0

46

Cub Cadet 736-0140

Washer, Flat, .385 X .62 X .063

$7.49

$

In Stock, Qty 12

0

47

Cub Cadet 756-0293

Idler Pulley, 5/8 V X 4.0 OD
(Superseded to 756-0487)

$51.99

$

In Stock, Qty 5

0

48

Cub Cadet 710-0314

Screw, Hex Cap, 7/16-20 X 1.0 Lg

$4.99

$

In Stock, Qty 13

0

49

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.99

$

In Stock, only 4 left!

0

50

Cub Cadet 736-0319

Washer, Flat, .44 X 1.25 X .48 Thk
(Superseded to 936-0319)

$12.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 756-0350

Pulley, 5/8 V X 1.0 ID X 4.75 OD

$

$

Not available

52

Cub Cadet 725-0713

Switch, Rocker

$

$

Not available

53

Cub Cadet 725-1290

Harness, Safety Switch

$

$

Not available
