400 - Shindaiwa Chainsaw Rotor Assembly Parts Diagram

Chainsaw

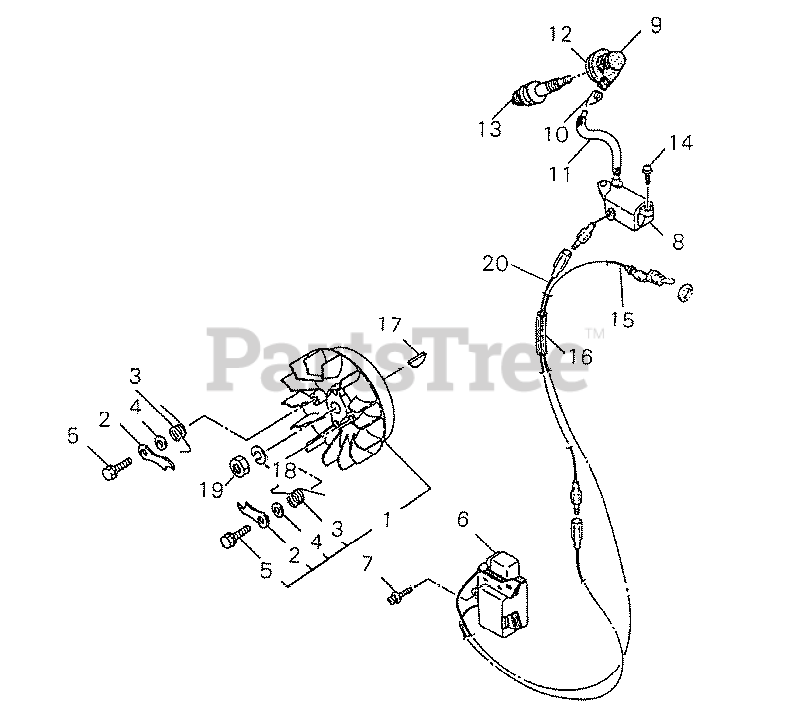

Rotor Assembly Parts Diagram

  • Title

1

Echo 22160-71100

FLYWHEEL
(Superseded to A409000850)

$71.99

$

Usually ships in 2-4 days

0

2

Echo 22100-71410

PAWL, STARTER
(Superseded to A514000200)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 22100-71420

SPRING, RETURN
(Superseded to V452000780)

$0.99

$

In Stock, Qty 6

0

4

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 22140-71440

BOLT

$1.99

$

Usually ships in 2-4 days

0

6

Echo 22160-71511

EXCITER, COIL
(Superseded to A410000010)

$98.99

$

In Stock, Qty 9

0

7

Echo 11024-04200

SCREW - 4X20
(Superseded to V202000190)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 22160-71702

COIL, IGNITION
(Superseded to A411001020)

$37.99

$

In Stock, Qty 14

0

9

Echo 22160-72220

CAP, SPARK PLUG
(Superseded to A427000060)

$5.99

$

In Stock, Qty 20+

0

10

Echo 22154-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000040)

$0.99

$

In Stock, Qty 11

0

11

Echo 22160-72240

TUBE
(Superseded to V475005240)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 22160-72260

SEAL, DUST
(Superseded to A429000090)

$2.49

$

In Stock, Qty 16

0

13

Echo CJ6Y

SPARK PLUG -- CJ-6Y

$3.99

$

In Stock, Qty 11

0

14

Echo 11205-04160

SCREW - 4X16
(Superseded to 9157304016)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 22160-71520

WIRE
(Superseded to V485002020)

$3.49

$

Usually ships in 2-4 days

0

16

Echo 22160-71530

TUBE

$0.99

$

In Stock, Qty 7

0

17

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

18

Echo 01600-08201

LOCKWASHER - 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

19

Echo 22100-43231

NUT
(Superseded to V265000180)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 22160-71750

WIRE
(Superseded to V485002010)

$3.49

$

In Stock, only 2 left!

0
