400 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

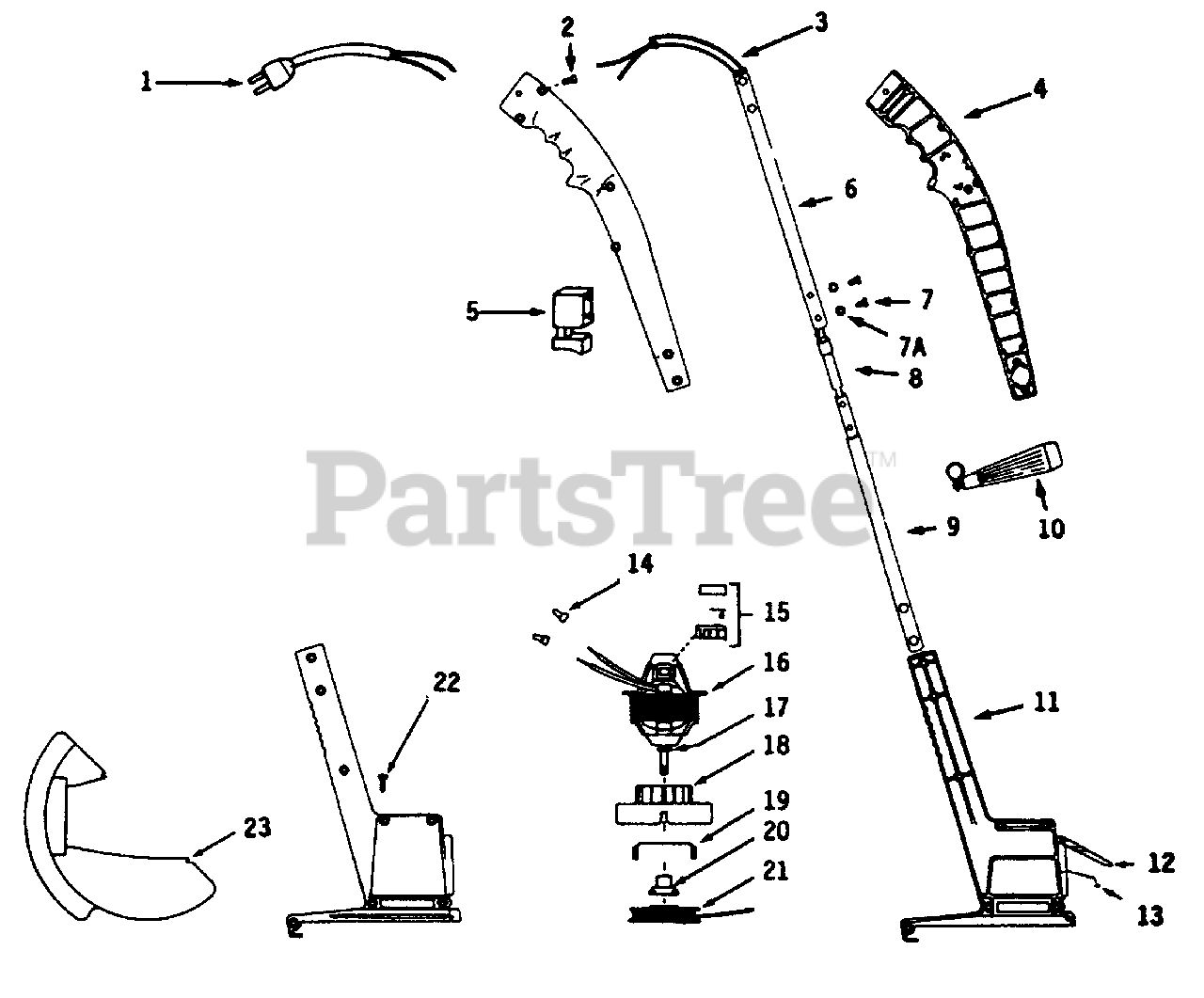

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530090866

POWER CORD PIGTAIL

$

$

Not available

2

Poulan 530092598

SCREW

$

$

Not available

3

Poulan 530092611

HARNESS

$

$

Not available

4

Poulan 530092599

HANDLE SET

$

$

Not available

5

Poulan 530090824

SWITCH

$

$

Not available

6

Poulan 092612

TUBE, UPPER (obsolete)

Note: (obsolete)

$

$

Not available

7

Poulan 530092613

SCREW

$

$

Not available

7A

Poulan 530090887

WASHER, LOCK

$

$

Not available

8

Poulan 530092614

SCREW BARRIER

$

$

Not available

9

Poulan 092615

TUBE, LOWER (obsolete)

Note: (obsolete)

$

$

Not available

10

Poulan 530092616

ASSIST HANDLE

$

$

Not available

11

Poulan 530092617

MOTOR HOUSING SET

$

$

Not available

12

Poulan 530092618

CLIP OFF LEVER

$

$

Not available

13

Poulan 530090873

CLIP OFF BLADE

$

$

Not available

14

Poulan 530090876

CONNECTOR

$

$

Not available

15

Poulan 530090891

BRUSH KIT

$

$

Not available

16

Poulan 530090892

MOTOR ASSEMBLY

$

$

Not available

17

Poulan 530090878

WASHER, THRUST

$

$

Not available

18

Poulan 530092619

HUB

$

$

Not available

19

Poulan 530092621

LINE SAVER

$

$

Not available

20

Poulan 530092622

HUB RETAINER

$

$

Not available

21

Poulan 530092604

SPOOL WOUND

$

$

Not available

22

Poulan 530092624

SCREW

$

$

Not available

23

Poulan 092625

GUARD (obsolete)

Note: (obsolete)

$

$

Not available
