4000/72 (5901097) - Ferris 72" Mower Deck 72" Mower Deck - Belt, Pulleys & Idler Arm Parts Diagram

72" Mower Deck

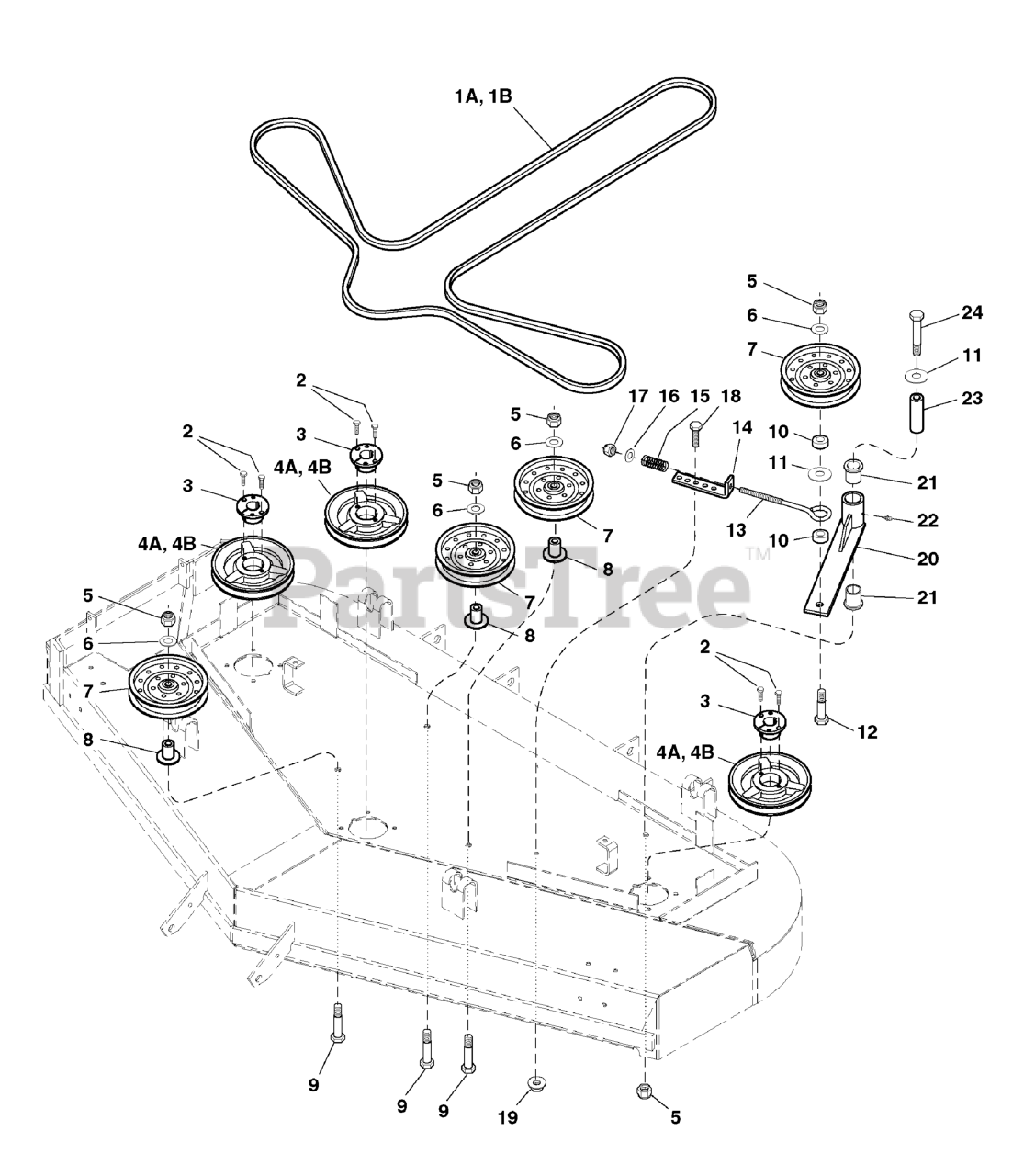

72" Mower Deck - Belt, Pulleys & Idler Arm Parts Diagram

  • Title

1A

Ferris 5022439

BELT

Note: (S/N: 101-435)

$153.99

$

Usually ships in 2-12 days

0

1B

Ferris 5104068

BELT, 5V, 207.90"EL, LRG ARAMID, WRP, RC
(Superseded to 5104068FS)

Note: (S/N: 436 & above)(72" Mower Decks)

$171.99

$

Usually ships in 2-12 days

0

2

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0

3

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

4A

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

Note: (S/N: 101-435)

$111.99

$

Usually ships in 2-12 days

0

4B

Ferris 5022794

PULLEY, Spindle
(Superseded to 5022794FS)

Note: (S/N: 436 & above)(27HP model)

$97.99

$

Usually ships in 2-12 days

0

5

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

6

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 4 left!

0

7

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

8

Ferris 5045024B

IDLER PULLEY MOUNT
(Superseded to 5045024BFS)

$43.99

$

Usually ships in 2-12 days

0

9

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

10

Ferris 5045023

SPACER, .52 x 1.00 x .44
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

11

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

12

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

13

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

Usually ships in 2-12 days

0

14

Ferris 5046556B

SPRING ANCHOR
(Superseded to 5046556BFS)

$18.99

$

In Stock, only 2 left!

0

15

Ferris 5022788

SPRING, Compression
(Superseded to 5022788SM)

$36.99

$

In Stock, only 1 left!

0

16

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 4 left!

0

18

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5045019B

IDLER ARM
(Superseded to 5060001)

$85.99

$

Usually ships in 2-12 days

0

21

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 11

0

22

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 1 left!

0

24

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 1 left!

0
