4000/72 (5901097) - Ferris 72" Mower Deck 72" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 101-435) Parts Diagram

72" Mower Deck

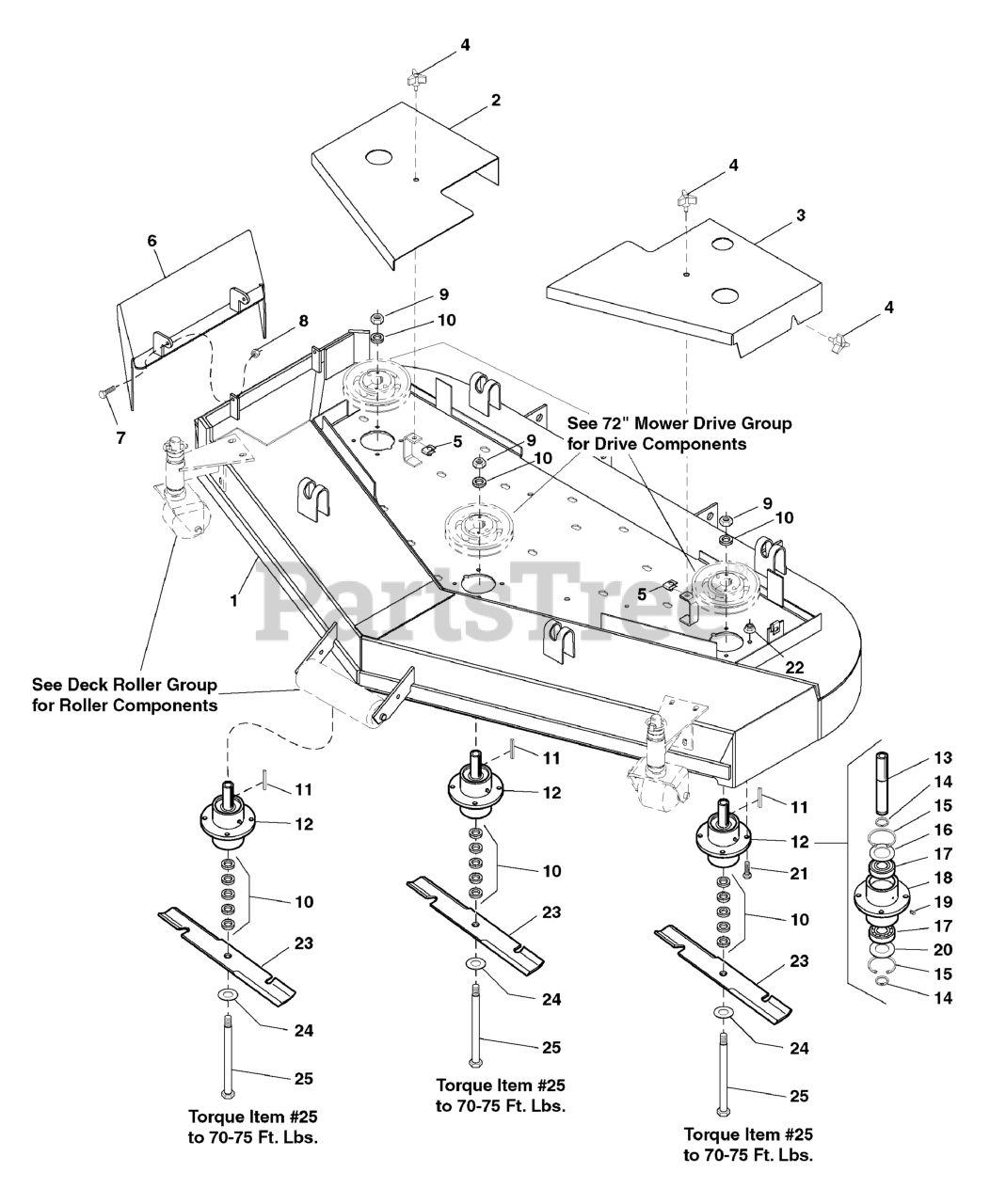

72" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 101-435) Parts Diagram

  • Title

1

Ferris 5046338B

72" MOWER HOUSING

$

$

Currently unavailable

2

Ferris 5046063

SPINDLE COVER-LH
(Superseded to 5046460B)

$94.99

$

Usually ships in 2-12 days

0

3

Ferris 5046064

SPINDLE COVER-RH

$

$

Currently unavailable

4

Ferris 5022319

KNOB
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

5

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

6

Ferris 5046097B

DISCHARGE CHUTE

$142.99

$

Usually ships in 2-12 days

0

7

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

11

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

12

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

13

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

14

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

18

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

19

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

21

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

22

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5022476S

BLADE, 25" (SET OF THREE)

$113.99

$

Usually ships in 2-12 days

0

24

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

25

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0
