4000 J (UT-26022-A) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

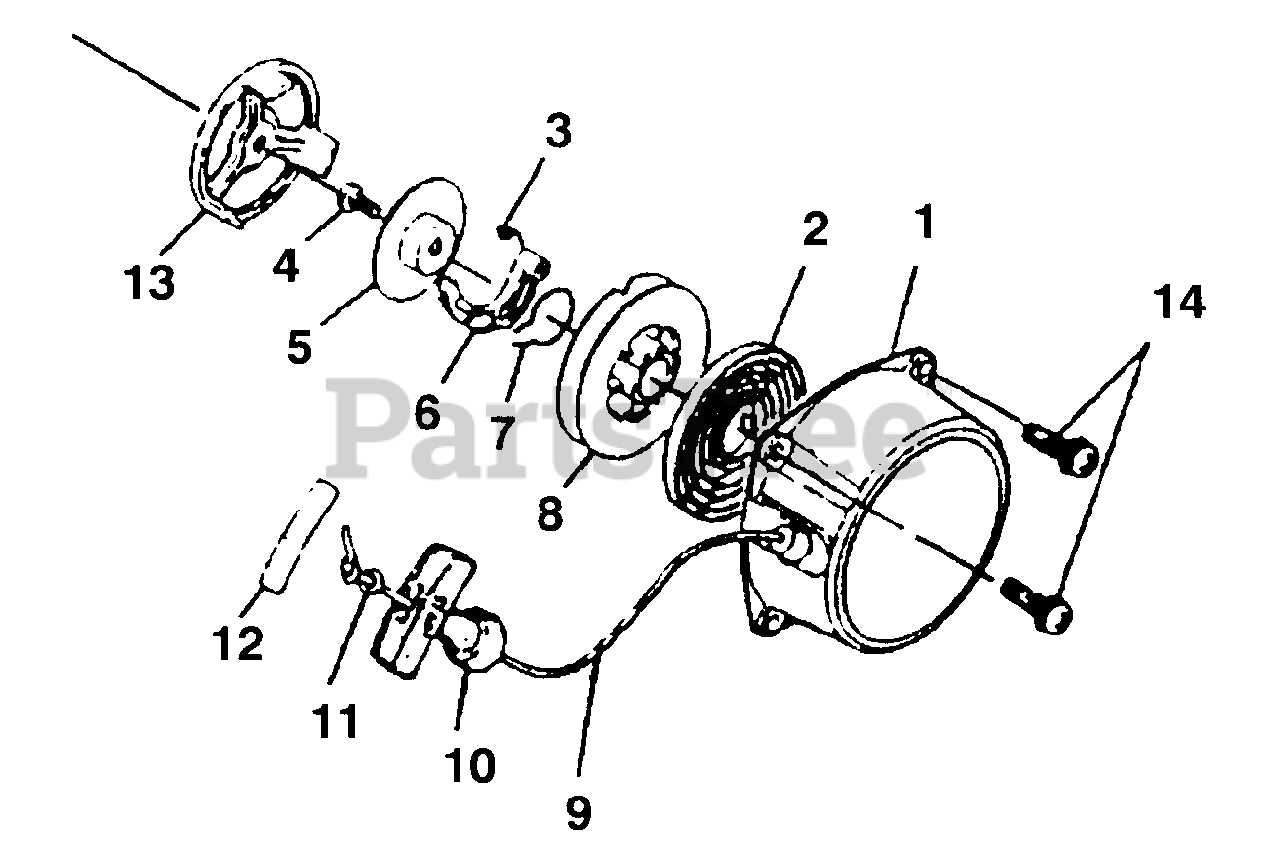

Starter Parts Diagram

  • Title

Homelite GM410305

STARTER ASSEMBLY

$

$

Not available

1

Homelite GM405215

STARTER CASE

$77.99

$

Usually ships in 3-7 days

0

2

Homelite GM407907

SPRING, SPIRAL

$50.99

$

Usually ships in 3-7 days

0

3

Homelite GM247905

RETURN SPRING

$13.99

$

Usually ships in 3-7 days

0

4

Homelite GM002812

SCREW

Note: Torque Specs: 13-17 In/Lbs; 1.5-2.0 Nm

$

$

Currently unavailable

5

Homelite GM405210

PLATE

$

$

Currently unavailable

6

Homelite GM405211

RATCHET

$26.99

$

Usually ships in 3-7 days

0

7

Homelite GM309853

FRICTION SPRING

$

$

Not available

8

Homelite GM405212

REEL

$

$

Currently unavailable

9

Homelite GM407312

ROPE

$

$

Currently unavailable

10

Homelite GM287306

KNOB

$

$

Not available

11

Homelite GM040123

WASHER

$

$

Not available

12

Homelite GM407311

TAPE

$

$

Currently unavailable

13

Homelite GM405209

PULLEY

$

$

Currently unavailable

14

Homelite GM010071

SCREW
(Superseded to 0926011)

Note: Torque Specs: 35-43 In/Lbs; 4.0-4.8 Nm

$

$

Not available
