4000 J (UT-26022-B) - Green Machine String Trimmer Gearcase Parts Diagram

String Trimmer

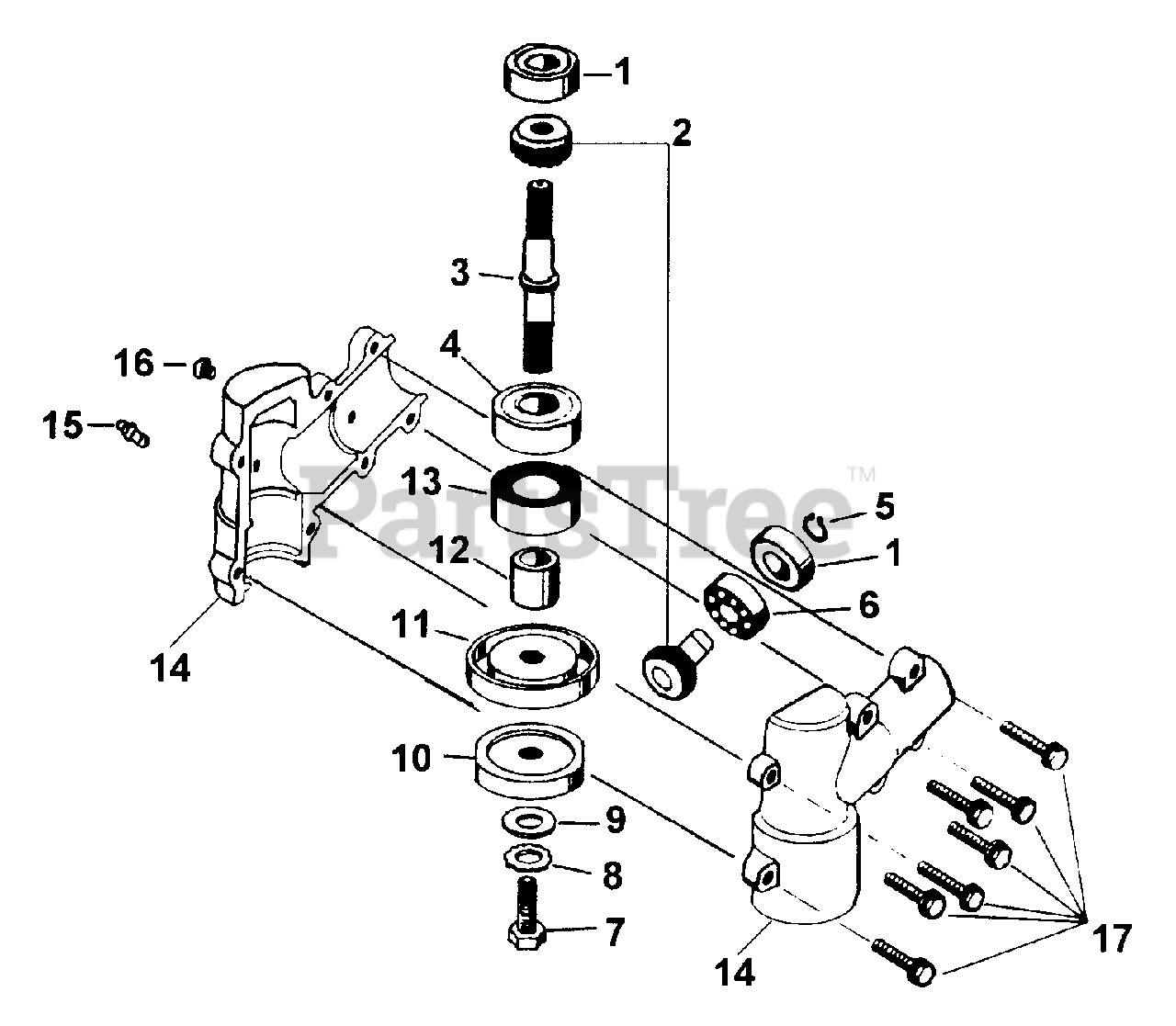

Gearcase Parts Diagram

  • Title

Homelite GM410307

Gearcase Assembly
(Superseded to UP05123)

$

$

Not available

1

Homelite 09142

Bearing

$

$

Not available

2

Homelite GM300625

Gear Set Kit
(Superseded to UP05123)

$

$

Not available

3

Homelite GM406714

Shaft, Gear

$

$

Currently unavailable

4

Homelite 09146

Bearing

$

$

Not available

5

Homelite GM060007

Snap Ring

$

$

Not available

6

Homelite 09143

Bearing

$

$

Not available

7

Homelite GM400225

Bolt

Note: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

8

Homelite GM040007

Washer
(Superseded to UP06519)

$

$

Not available

9

Homelite GM041003

Washer

$

$

Not available

10

Homelite GM406715

Flange Washer

$

$

Not available

11

Homelite GM406716

Flange Washer

$

$

Not available

12

Homelite GM406729

Collar

$

$

Currently unavailable

13

Homelite 09145

Bearing
(Superseded to UP07297)

$

$

Not available

14

Homelite GM300610

Housing Set

$

$

Currently unavailable

15

Homelite GM286710

Grease Fitting

$

$

Not available

16

Homelite 82459

Screw, Self Tapping

Note: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

17

Homelite 825491

Screw, Self Tapping
(Superseded to UP05542)

Note: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
