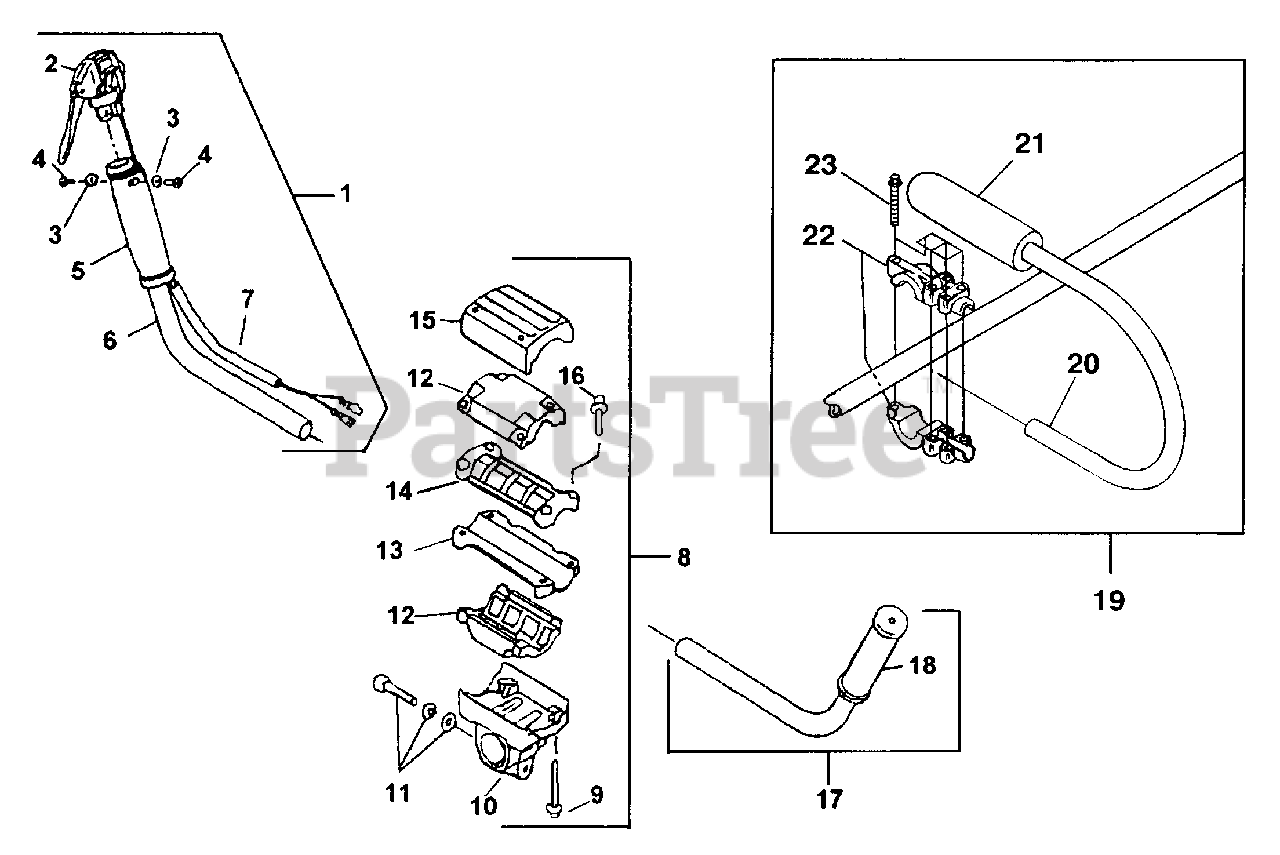

4000 J (UT-26022-B) - Green Machine String Trimmer Handles Parts Diagram

String Trimmer

Handles Parts Diagram

  • Title

1

Homelite A08266

Handle Assembly R.H.
(Superseded to UP06647)

Note: Model 4000B

$

$

Not available

2

Homelite GM400386

Throttle Switch Assembly

Note: Model 4000B

$63.99

$

Usually ships in 3-7 days

0

3

Homelite GM040025

Washer

Note: Model 4000B

$

$

Not available

4

Homelite GM012302

Screw
(Superseded to 88180)

Note: Model 4000B Torque Specs: 5-20 In/Lbs; .5-2.3 Nm

$

$

Not available

5

Homelite GM405504

Grip R.H.

Note: Model 4000B

$

$

Currently unavailable

6

Homelite GM406801

Handle

Note: Model 4000B

$

$

Currently unavailable

7

Homelite GM403501

Tube W/Wire Harness

Note: Model 4000B

$

$

Currently unavailable

8

Homelite GM400374

Handle Joint Assembly

Note: Model 4000B

$

$

Not available

9

Homelite GM030101

Bolt
(Superseded to UP04122)

Note: Model 4000B Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

10

Homelite GM406112

Handle Joint, Bottom

Note: Model 4000B Torque Specs: 35-43 In/Lbs; 3.9-4.8 Nm

$99.99

$

Usually ships in 3-7 days

0

11

Homelite GM012301

Screw & Washer
(Superseded to 03943)

Note: Model 4000B

$

$

Not available

12

Homelite GM405506

Isolating Rubber

Note: Model 4000B

$

$

Not available

13

Homelite GM406113

Pipe Fitting

Note: Model 4000B

$

$

Not available

14

Homelite GM406114

Pipe Fitting

Note: Model 4000B Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$30.99

$

Usually ships in 3-7 days

0

15

Homelite GM406111

Handle Joint, Top

Note: Model 4000B

$

$

Currently unavailable

16

Homelite GM032803

Bolt

Note: Model 4000B

$3.49

$

Usually ships in 3-7 days

0

17

Homelite GM400378

Handle Assembly L.H.

Note: Model 4000B

$

$

Not available

18

Homelite GM405505

Grip L.H.

Note: Model 4000B

$17.99

$

Usually ships in 3-7 days

0

19

Homelite A08475

Handle Assembly
(Superseded to UP06385)

Note: (Model 4000J)

$

$

Not available

20

Homelite GM306805

Handle
(Superseded to UP06385)

Note: (Model 4000J); Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

21

Homelite GM300142

Grip
(Superseded to UP06385)

Note: (Model 4000J)

$

$

Not available

22

Homelite GM300629

Bracket Assembly

Note: (Model 4000J)

$

$

Not available

23

Homelite GM011309

Bolt
(Superseded to UP07929)

Note: (Model 4000J)

$

$

Not available
