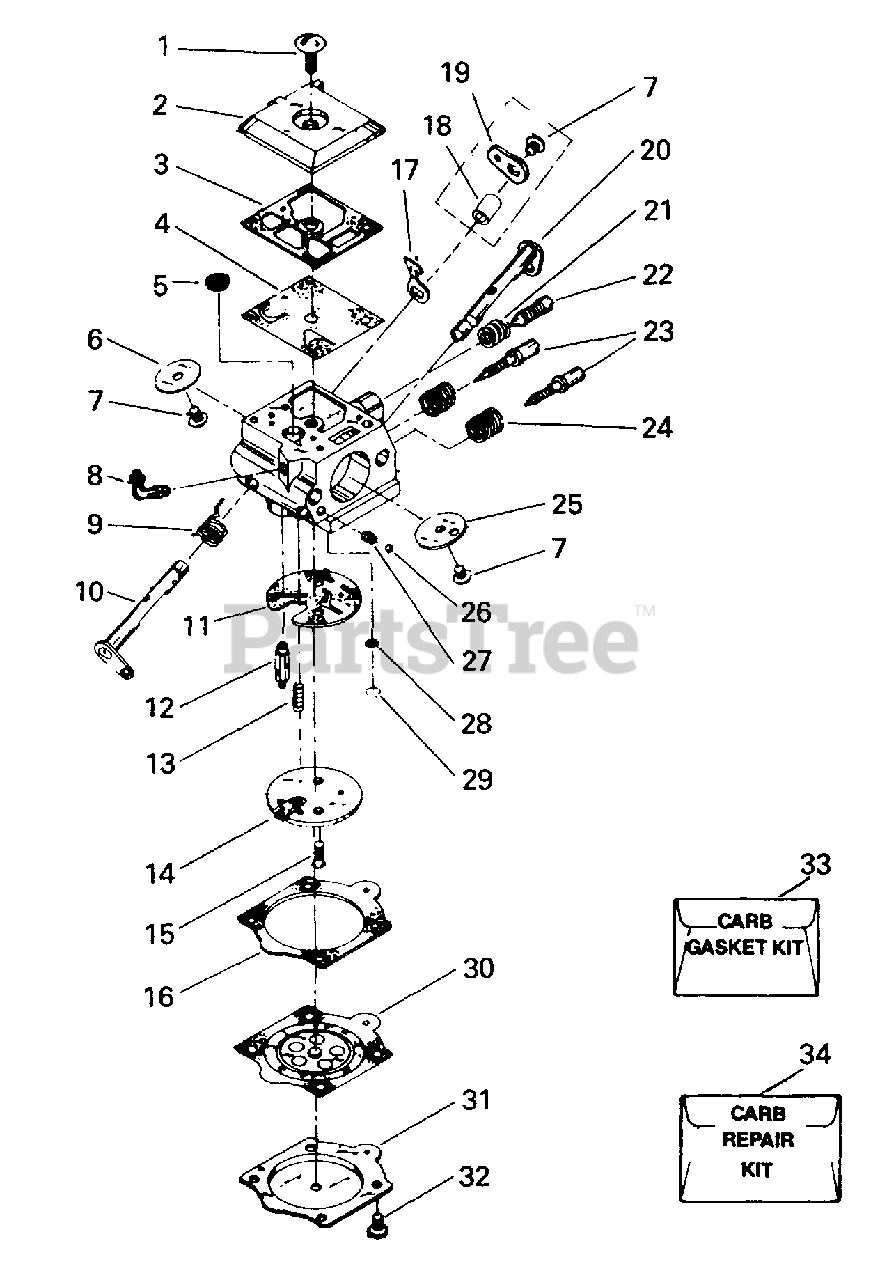

4000 - Poulan Chainsaw Carburetor Assembly Parts Diagram

Chainsaw

Carburetor Assembly Parts Diagram

  • Title

1

Poulan 35115

Screw-Pump Cover

$

$

Not available

2

Poulan 35099

Cover-Fuel Pump

$

$

Not available

3

Poulan 35109

Gasket-Fuel Pump

$

$

Not available

4

Poulan 35113

Diaphragm-Fuel

Note: Contents of Parts Kit

$

$

Not available

5

Poulan 35069

Screen-Inlet

Note: Contents of Parts Kit

$

$

Not available

6

Poulan 35102

Valve-Throttle

$

$

Not available

7

Poulan 35015

Screw-Valve

Note: Contents of Parts Kit

$

$

Not available

8

Poulan 35123

Fitting-Inlet (Elbow)

$

$

Not available

9

Poulan 35119

Spring-Throttle Ret.

$

$

Not available

10

Poulan 35101

Shaft Ass'y.-Throttle

$

$

Not available

11

Poulan 35111

Gasket-Circuit

Note: Contents of Parts Kit

$

$

Not available

12

Poulan 35106

Valve-Inlet Needle

Note: Contents of Parts Kit

$

$

Not available

13

Poulan 35118

Spring-Mtrg.Lever

Note: Contents of Parts Kit

$

$

Not available

14

Poulan 35126

Plate Ass'y.-Circuit

$

$

Not available

15

Poulan 35116

Screw-Circuit Plate

Note: Contents of Parts Kit

$

$

Not available

16

Poulan 35108

Gasket-Mtrg.Diaphragm

Note: Contents of Parts Kit

$

$

Not available

17

Poulan 35105

Stop-Throttle

$

$

Not available

18

Poulan 35125

Bushing-Throttle Lv.

$

$

Not available

19

Poulan 35097

Lever-Throttle (Outer)

$

$

Not available

20

Poulan 35103

Shaft Ass'y.-Choke

$

$

Not available

21

Poulan 35121

Spring-Idle Screw

$

$

Not available

22

Poulan 35117

Screw-Idle Adj.

$

$

Not available

23

Poulan 35122

Needle-Hi & Lo

$

$

Not available

24

Poulan 35202

Needle Retainer Kit

Note: Contents of Parts Kit

$

$

Not available

25

Poulan 35104

Valve-Choke

$

$

Not available

26

Poulan 35107

Ball-Choke Friction

Note: Contents of Parts Kit

$

$

Not available

27

Poulan 35022

Spring-Choke Friction

Note: Contents of Parts Kit

$

$

Not available

28

Poulan 35124

Screen-Check Valve

Note: Contents of Parts Kit

$

$

Not available

29

Poulan 35096

Ring-Screen Retaining

Note: Contents of Parts Kit

$

$

Not available

30

Poulan 35114

Diaph.Ass'y.-Mtrg.

Note: Contents of Parts Kit

$

$

Not available

31

Poulan 35098

Cover-Mtrg.Diaphragm

$

$

Not available

32

Poulan 35021

Screw Ass'y.-Mtrg.Cover

Note: Contents of Parts Kit

$

$

Not available

33

Poulan 35112

Kit-Carb. Gasket

Note: (Incl. #3 & 16)-Optional

$

$

Not available

34

Poulan 35127

Kit-Carb. Repair-

Note: Optional

$

$

Not available
