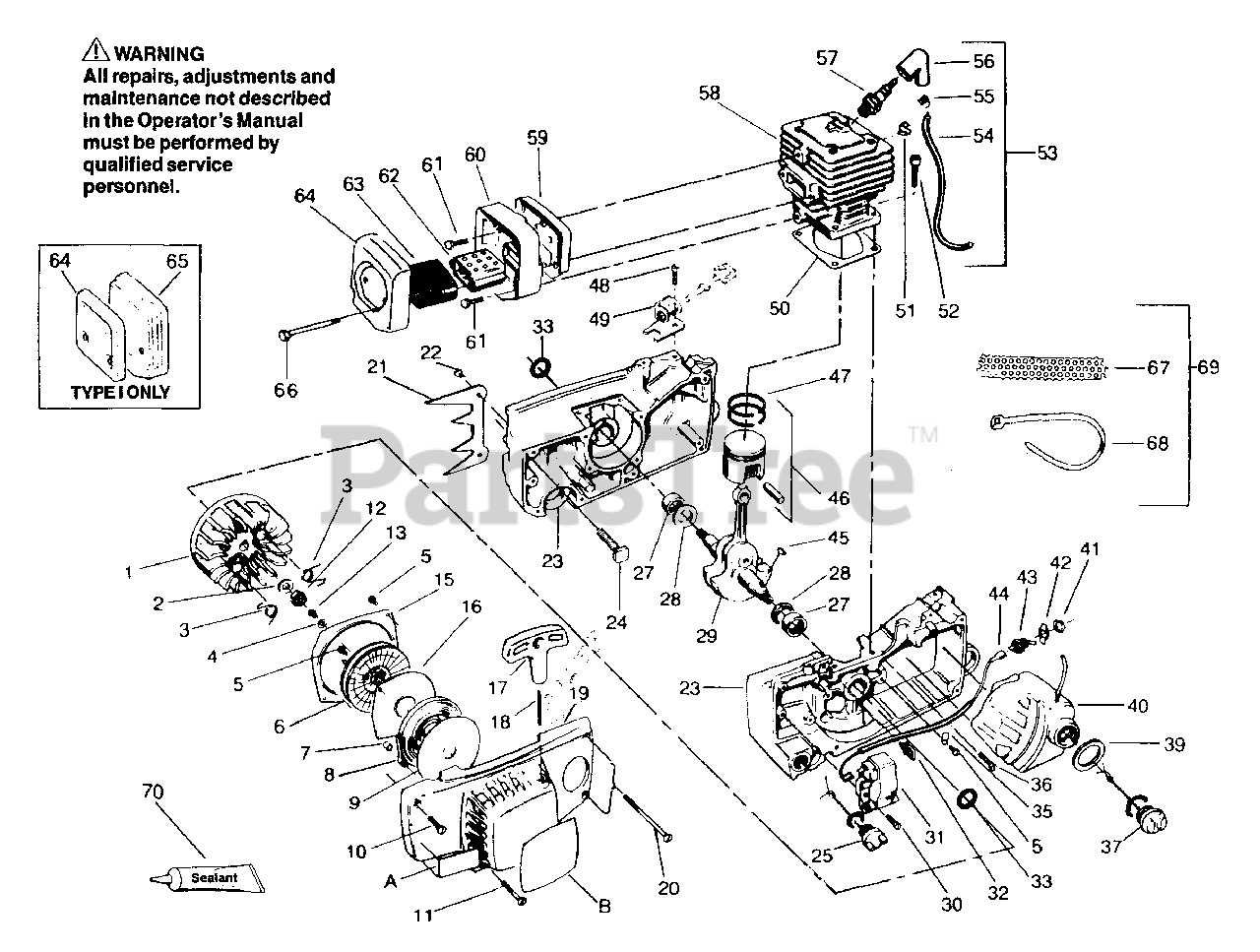

4000 - Poulan Chainsaw Crankcase / Cylinder Assembly Parts Diagram

Chainsaw

Crankcase / Cylinder Assembly Parts Diagram

  • Title

1

Poulan 39113

Flywheel Ass'y.

Note: (Incl. #3)

$0.99

$

Usually ships in 3-10 days

0

2

Poulan 1626

Washer-Flywheel

$

$

Not available

3

Poulan 23817

Spring- Starter Dog

$

$

Not available

4

Poulan 15123

Washer- Starter Pulley

$

$

Not available

5

Poulan 1726

Screw - 32 x 5/16 - Hex Hd. - Disc. Mounting (also Air Baffle & Clamp Lead)

$

$

Not available

6

Poulan 26371

Pulley Starter

$

$

Not available

7

Poulan 24329

Bushing Recoil Spring

$

$

Not available

8

Poulan 42051

Spring- Starter Recoil

$

$

Not available

9

Poulan 42053

Disc. Recoil Spring-Outer

$

$

Not available

10

Poulan 15364

Screw -10-24 x 1 - Oval Hd. Fan Housing-(Top Front)

$

$

Not available

11

Poulan 15365

Screw-10-24x1-3/8-Fan Housing (Lower Front)

$

$

Not available

12

Poulan 1722

Flywheel Nut 3/8-24

$

$

Not available

13

Poulan 15036

Screw-10-24 x 1/2 Starter Pulley

$

$

Not available

15

Poulan 24232

Air Baffle

$

$

Not available

16

Poulan 42054

Disc. Recoil Spring - Inner

$

$

Not available

17

Poulan 42056

Handle Starter Rope

$

$

Not available

18

Poulan 69233

Rope Kit

$

$

Not available

19

Poulan 12034

Fan Housing Assembly

$

$

Not available

20

Poulan 15366

Screw-10-24 x 1/8 Fan Housing (Rear)

$

$

Not available

21

Poulan 24476

Spur

$

$

Not available

22

Poulan 15434

Screw-10-24 x 9/16 Hex Hd. - Spur

$

$

Not available

23

Poulan 10696

Crankcase Ass'y.

Note: (Incl. #24, 25, 27, 26 & 33; from "Handlebar Assembly", includes #30, 36, 47 & one of 34)

$

$

Not available

24

Poulan 30039

Kit- Bar Stud Replacement (5/16")

$

$

Not available

25

Poulan 10444

Oil Cap Assembly

Note: (Incl."O" Ring) Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

27

Poulan 32051

Bearings-Crankshaft

$

$

Not available

28

Poulan 15354

Thrust Washers-Crankshaft

$

$

Not available

29

Poulan 24492

Crankshaft Ass'y.

Note: (Incl. Connecting Rod and Bearing)

$

$

Not available

30

Poulan 15425

Screw-10-24 x 7/8-Module Mnt.

$

$

Not available

31

Poulan 39093

Ignition Module

Note: (Incl. #44 & 53)

$

$

Not available

32

Poulan 24334

Clamp - High Tension Lead Crankcase

$

$

Not available

33

Poulan 19097

Seal-Crankshaft

Note: Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

35

Poulan 23661

Clamp-Lead

$

$

Not available

36

Poulan 15238

Screw -10-24-Fil. Hd. - Crankcase

$

$

Not available

37

Poulan 10331

Fuel Cap Assembly

Note: (incl. "O" Ring)

$

$

Not available

39

Poulan 19122

Seal - Fuel Tank Neck

Note: Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

40

Poulan 10286

Fuel Tank Assembly

Note: (Incl. #37; and from "Isolator Assembly", #35 & 36)

$

$

Not available

41

Poulan 23575

Nut - Switch Mounting

$

$

Not available

42

Poulan 24858

Plate - Ignition Switch

$

$

Not available

43

Poulan 23732

Switch-Toggle

$

$

Not available

44

Poulan 39115

Leadwire-Switch

$

$

Not available

45

Poulan 2595

Key-Flywheel

$

$

Not available

46

Poulan 10643

Kit- Piston

Note: (Incl. #47 and Piston Pin)

$

$

Not available

47

Poulan 26003

Rings-Piston

$

$

Not available

48

Poulan 15368

Screw-10-24 x 3/8 Fil. Hd. Choke Bracket

$

$

Not available

49

Poulan 10347

Bracket & Bushing Assembly

$

$

Not available

50

Poulan 19129

Cylinder Gasket

$

$

Not available

51

Poulan 15195

Clip- High Tension Lead Cylinder

$

$

Not available

52

Poulan 1624

Cylinder Screw - 1/4 - 20 x 7/8

Note: Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

53

Poulan 39102

High Tension Lead Assembly

Note: (Incl. 66. 55 & 54)

$

$

Not available

54

Poulan 39096

High Tension Lead

$

$

Not available

55

Poulan 39071

Connector- Spark Plug

$

$

Not available

56

Poulan 39097

Boot- Spark Plug

$

$

Not available

57

Poulan 30073

Spark Plug

$

$

Not available

58

Poulan 12068

Cylinder

$

$

Not available

59

Poulan 24388

Back Plate-Muffler

$

$

Not available

60

Poulan 26059

Muffler Body

$

$

Not available

61

Poulan 15374

Screw-1/2-24 - x 1/2 Hex Hd. Muffler Body to Cylinder

$

$

Not available

62

Poulan 24384

Diffuser-Muffler

$

$

Not available

63

Poulan 24385

Screen- Spark Arrestor

$

$

Not available

64

Poulan 24391

Muffler Cover Type I

$

$

Not available

64

Poulan 26800

Muffler Cover Type II

$

$

Not available

65

Poulan 24392

Shield Muffler -Type I only

$

$

Not available

66

Poulan 15375

Screw-1/4-20 x 2 1/2 Hex Cap - Muffler Cover

$

$

Not available

67

Poulan 11746

Screen- Winter

Note: (Optional)

$

$

Not available

68

Poulan 24675

Tie Strap

Note: (Optional)

$

$

Not available

69

Poulan 69079

Winter Kt

Note: (Incl. 67 & 68)

$

$

Not available

70

Poulan 30054

Sealant- Crankcase

Note: (Optional)

$

$

Not available

A

Poulan 26862

Decal- Professional User

Note: DECALS

$

$

Not available

B

Poulan 26848

Decal-Fan Housing

Note: DECALS

$

$

Not available

Poulan 66547

Operator's Manual

Note: NOT SHOWN

$

$

Not available

Poulan 66051

Bow Guide Manual

Note: NOT SHOWN

$

$

Not available

Poulan 60832

Carton

Note: 4000 w/16" bar or Guide Bar Powerhead or Bow Guide Powerhead

$

$

Not available

Poulan 60840

Carton

Note: 4000 w/20" bar

$

$

Not available
