4000 - Poulan Chainsaw Handlebar Assembly Parts Diagram

Chainsaw

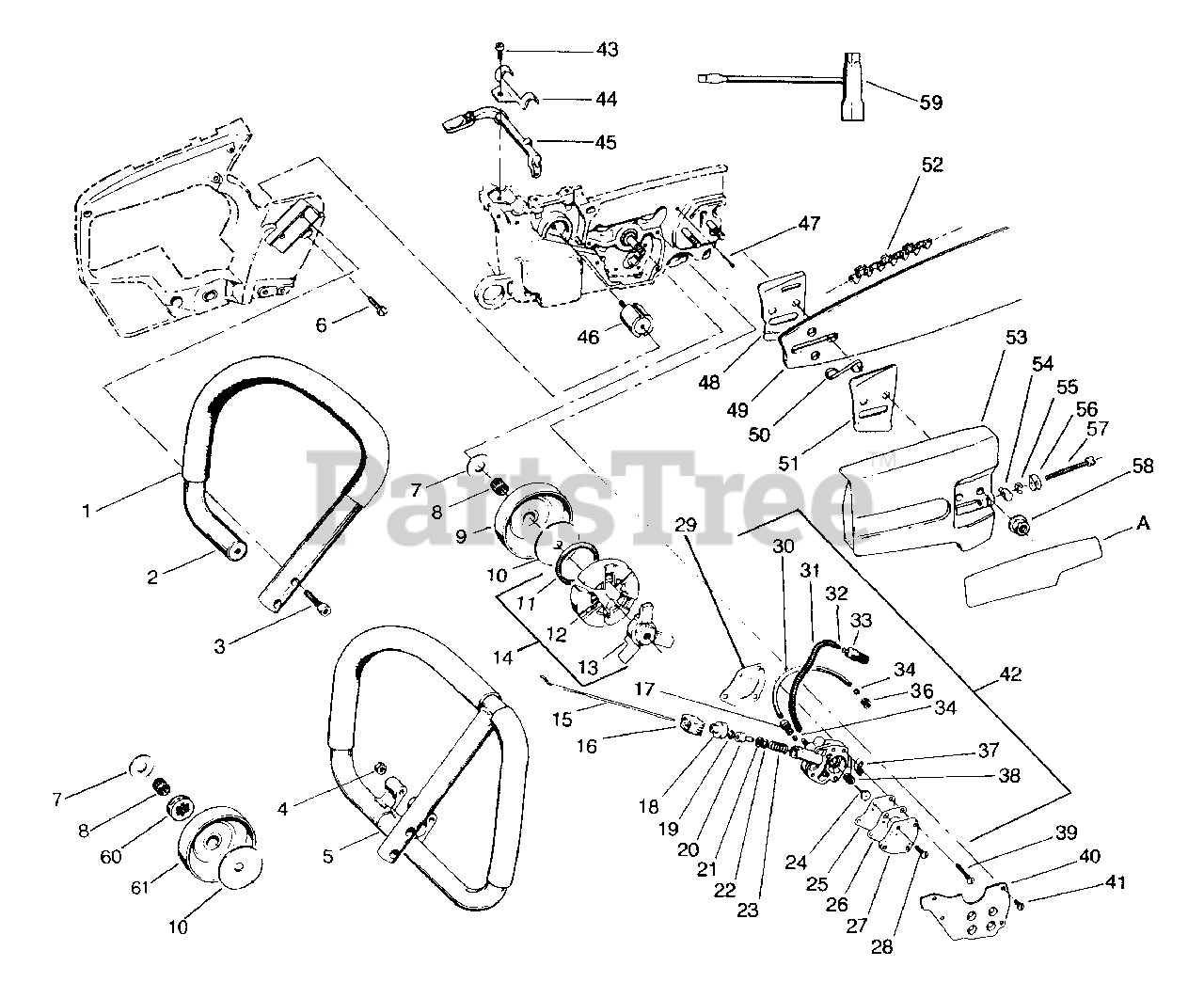

Handlebar Assembly Parts Diagram

  • Title

1

Poulan 69171

Kit-Handle Grip (Velvet Touch)

$

$

Not available

2

Poulan 22276

Handlebar Assembly

$

$

Not available

3

Poulan 1711

Screw-1/4-20 1 Socket Hd. Handlebar to Crankcase

$

$

Not available

4

Poulan 1615

Locknut-1/4-20-Wraparound Handle

$

$

Not available

5

Poulan 69163

Handlebar- Wraparound Handle

Note: (Optional)

$

$

Not available

6

Poulan 15406

Screw-10-24 1/2 Pan. Hd. Side Isolator

$

$

Not available

7

Poulan 15357

Thrust Washer

$

$

Not available

8

Poulan 32049

Bearing-Clutch

$

$

Not available

9

Poulan 48069

Drum & Sprocket Assembly

$

$

Not available

10

Poulan 24465

Plate Clutch

$

$

Not available

11

Poulan 24353

Spring-Clutch

$

$

Not available

12

Poulan 26352

Shoe-Clutch

$

$

Not available

13

Poulan 171625

Spider-Clutch

$

$

Not available

14

Poulan 10291

Clutch Ass'y.

Note: (Incl. 11, 12 & 13)

$

$

Not available

15

Poulan 24347

Rod- Manual Oiler

$

$

Not available

16

Poulan 23373

Boot- Oiler Rod

Note: Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

17

Poulan 2615

Tubing-Nut

$

$

Not available

18

Poulan 23356

Cap -Ott Pump

$

$

Not available

19

Poulan 1611

Retainer Ring

$

$

Not available

20

Poulan 23357

Plunger

$

$

Not available

21

Poulan 19029

Quad Ring

$

$

Not available

22

Poulan 15418

Washer-Oiler

$

$

Not available

23

Poulan 23358

Spring

$

$

Not available

24

Poulan 22197

Pintle

$

$

Not available

25

Poulan 24345

Diaphragm

$

$

Not available

26

Poulan 79102

Gasket- Cover to Body

Note: Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

27

Poulan 25987

Cover-Pump

$

$

Not available

28

Poulan 15297

Screw-8-16, 5/8 Pan Hd. Oil Pump Cover

$

$

Not available

29

Poulan 19103

Gasket- Oiler Ass'y. to Crankcase

Note: Engine Gasket Kit contents, Key No. 50, "Isolator Assembly"

$

$

Not available

30

Poulan 21038

Discharge Line Oil (Bulk 8115)

$

$

Not available

31

Poulan 24677

Spring - Oil Line Protector

$

$

Not available

32

Poulan 21031

Oil Line (Bulk 8132)

$

$

Not available

32

Poulan 10289

Oil Line Pick-Up Assembly

Note: (Incl. 30 & 31)

$

$

Not available

33

Poulan 24676

Weight-Oil Pick-up Line
(Superseded to 532134149)

$15.99

$

Usually ships in 3-10 days

0

34

Poulan 2464

Sleeve-1/8 Tubing

$

$

Not available

36

Poulan 15422

Tubing Nut-Slotted

$

$

Not available

37

Poulan 24691

Foam -Oil Pump Vent
(Superseded to 532025036)

$27.99

$

Usually ships in 3-10 days

0

38

Poulan 23699

Spring-Diaphragm

$

$

Not available

39

Poulan 15401

Screw-8-32, 1-Pan. Hd. Pump to Crankcase

$

$

Not available

40

Poulan 24399

Cover Plate-Oiler

$

$

Not available

41

Poulan 15004

Screw-8-32 5/16 Pan. Hd. Cover Plate

$

$

Not available

42

Poulan 69062

Oil Pump Ass'y. Auto/Manual

Note: (Incl. 17-28, 30-33, one of 34, & 36-38)

$

$

Not available

43

Poulan 15368

Screw-10-24 3/8 Fil Hd Bracket to Crankcase

$

$

Not available

44

Poulan 24351

Bracket Lever to Crankcase

$

$

Not available

45

Poulan 24348

Lever - Manual Oiler

$

$

Not available

46

Poulan 24225

Isolator Side

Note: Use on Guide Bar Powerhead

$

$

Not available

46

Poulan 24637

Isolator Side

Note: Use on Bow Guide Powerhead

$

$

Not available

47

Poulan 69185

Kit-Oil Tank Vent Replacement

$

$

Not available

48

Poulan 25925

Guide Bar Plate - Inner

$

$

Not available

49

Guide Bar or Bow Guide

Note: See "Guide Bar / Chain Information", "Chain Brake" & "Bow Guide"

$

$

Not available

50

Poulan 55044

"S" Clip -

Note: (See "Guide Bar / Chain Information")

$

$

Not available

51

Poulan 25924

Guide Bar Plate-Outer

$

$

Not available

52

Chain

Note: See "Guide Bar / Chain Information"

$

$

Not available

53

Poulan 10829

Bar Clamp Ass'y.

Note: Use on Guide Bar Powerhead

$

$

Not available

53

Poulan 10830

Bar Clamp Ass'y.

Note: Use on Bow Guide Powerhead

$

$

Not available

54

Poulan 23064

Pin- Bar Adj.

$

$

Not available

55

Poulan 24419

"E" Ring Adj. Screw

$

$

Not available

56

Poulan 25414

"U" Clip Bar Adj.

$

$

Not available

57

Poulan 15385

Screw-10-24 2 5/16 Bar Adj.

$

$

Not available

58

Poulan 15445

Flange Nut Mounting 5/16-18

$

$

Not available

59

Poulan 31107

Scrench

$

$

Not available

60

Poulan 4746

Rim Floating

$

$

Not available

61

Poulan 48063

Ass'y Drum & Sprocket

$

$

Not available

A

Poulan 26847

Decal- Bar Clamp

Note: Decals

$

$

Not available
