4000GCX (1783-0) - Generac 4,000 Watt Portable Generator Main Unit Parts Diagram

4,000 Watt Portable Generator

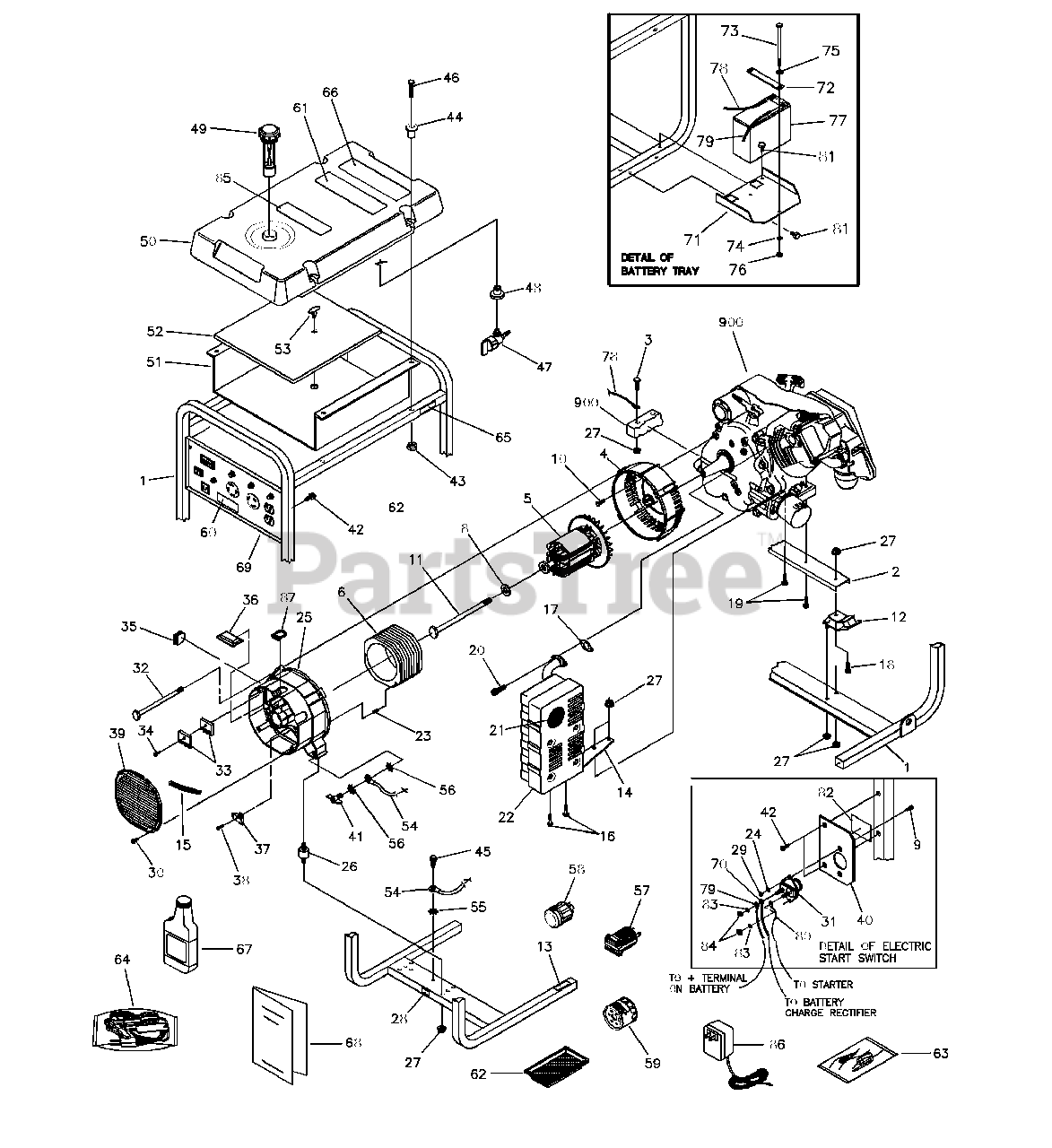

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton G93199GS

CRADLE, 4200W

$171.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton G84021GS

SUPPORT, Engine

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 39414GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GS

HSNG, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141JGS

ASSY, Rotor

$278.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 95876GGS

ASSY, Rotor

Note: Used on model 01783-0

$186.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187105AGS

ASSY, Stator

$

$

Not available

6

Briggs & Stratton 187151AGS

ASSY, Stator

Note: Used on model 01783-0

$291.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22287GS

SCREW

Note: Used on model 01784-0; Used on model 01785-0

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

SCREW

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508GS

MOUNT,Vibration

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 77816GS

DECAL, Caution, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 83208GPGS

BRACKET, Muffler

$

$

Currently unavailable

15

Briggs & Stratton 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476GS

SCREW, w/ Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89476GS

GASKET, Exhaust

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 5

0

22

Briggs & Stratton 83071GS

MUFFLER

$

$

Not available

23

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22097GS

WASHER, Lock

Note: Used on model 01784-0; Used on model 01785-0

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 85652GS

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 6

0

27

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 11

0

28

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 22127GS

NUT

Note: Used on model 01784-0; Used on model 01785-0

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77282GS

SWITCH, Starter

Note: Used on model 01784-0; Used on model 01785-0

$76.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 86308GS

BOLT

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

Note: Used on model 01784-0; Used on model 01785-0

$

$

Not available

34

Briggs & Stratton 66849CGS

SCREW

Note: Used on model 01784-0; Used on model 01785-0

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132GS

ASSY, Power Regulator

Note: Used on model 01784-0; Used on model 01785-0

$126.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 66386GS

ASSY, Brush Holder

$23.99

$

In Stock, only 4 left!

0

37

Briggs & Stratton 91825GS

ASSY, Brush Holder

Note: Used on model 01783-0

$54.99

$

In Stock, Qty 10

0

38

Briggs & Stratton 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 78289GS

BRACKET, Starter Switch

Note: Used on model 01784-0; Used on model 01785-0

$7.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 86494GS

SCREW,Wing

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 77395GS

NUT

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, Qty 13

0

45

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

47

Briggs & Stratton 80270GS

VALVE,Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134GS

CAP, Fuel Gauge
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 15

0

50

Briggs & Stratton 88325GS

ASSY,Tank, Fuel

Note: (Includes Items 47 & 48)

$

$

Not available

51

Briggs & Stratton J84042GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84687GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 23762GS

WASHER,Shakeproof

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850GS

WASHER, Shakeproof

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 37806GS

PLUG, 125V 30 A, 3-Prong
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 43483GS

PLUG, 250V 20 A, 4-Prong
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 70185GS

FILTER, Oil

$

$

Not available

60

Briggs & Stratton 191340GS

DECAL, Control Panel

Note: Used on model 01785-0

$

$

Currently unavailable

60

Briggs & Stratton 191397GS

DECAL, Control Panel

Note: Used on model 01784-0

$

$

Currently unavailable

60

Briggs & Stratton 191396GS

DECAL, Control Panel

Note: Used on model 01783-0

$

$

Currently unavailable

61

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 78601GS

FILTER,Air

$13.99

$

In Stock, Qty 7

0

63

Briggs & Stratton 189712GS

SUBKIT,Tune Up

Note: Used on model 01784-0; Used on model 01785-0

$

$

Currently unavailable

64

Briggs & Stratton 65787GPGS

CABLE, Battery Charge

$

$

Currently unavailable

65

Briggs & Stratton 73054GS

DECAL, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton BB3061GS

BOTTLE, Oil

$13.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 191337GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 187001GS

ASSY, Control Panel
(Superseded to 191484GS)

Note: (See "Control Panel" illustration and parts list); Used on model 01785-0

$434.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 93222GS

ASSY, Control Panel

Note: (See "Control Panel" illustration and parts list); Used on model 01784-0

$

$

Not available

69

Briggs & Stratton 187125GS

ASSY, Control Panel

Note: (See "Control Panel" illustration and parts list); Used on model 01783-0

$187.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 189992GS

HARNESS, Wire, Starter

Note: Used on model 01785-0

$13.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 189740GS

HARNESS, Wire, Starter

Note: Used on model 01784-0

$25.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton G187078GS

TRAY, Battery

Note: Used on model 01784-0; Used on model 01785-0

$55.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton G187081GS

BRACKET, Hold Down
(Superseded to B187081GS)

Note: Used on model 01784-0; Used on model 01785-0

$8.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 26586GS

SCREW

Note: Used on model 01784-0; Used on model 01785-0

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 22097GS

WASHER, Lock

Note: Used on model 01784-0; Used on model 01785-0

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

Note: Used on model 01784-0; Used on model 01785-0

$4.49

$

In Stock, Qty 20+

0

76

Briggs & Stratton 22127GS

NUT

Note: Used on model 01784-0; Used on model 01785-0

$1.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 187079GS

BATTERY, 12 V, 10 AH

Note: Used on model 01784-0; Used on model 01785-0

$

$

Not available

78

Briggs & Stratton 185931DGS

ASSY,Wire

Note: Used on model 01784-0; Used on model 01785-0

$9.49

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 185931CGS

ASSY,Wire

Note: Used on model 01784-0; Used on model 01785-0

$9.49

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 185939DGS

ASSY,Wire

Note: Used on model 01784-0; Used on model 01785-0

$15.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 58443GS

SCREW

Note: Used on model 01784-0; Used on model 01785-0

$3.49

$

In Stock, Qty 6

0

82

Briggs & Stratton 78549GS

DECAL, Instructions

Note: Used on model 01784-0; Used on model 01785-0

$3.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 22129GS

WASHER, Lock

Note: Used on model 01784-0; Used on model 01785-0

$2.99

$

In Stock, only 2 left!

0

84

Briggs & Stratton 24114GS

NUT
(Superseded to 703331)

Note: Used on model 01784-0; Used on model 01785-0

$3.99

$

In Stock, only 4 left!

0

85

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

86

Briggs & Stratton B4177GS

CHARGER, Battery Float
(Superseded to 705927)

Note: Used on model 01785-0

$38.99

$

In Stock, Qty 9

0

87

Briggs & Stratton 84242GS

GROMMET, RBC, Plastic

Note: Used on model 01783-0

$4.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
