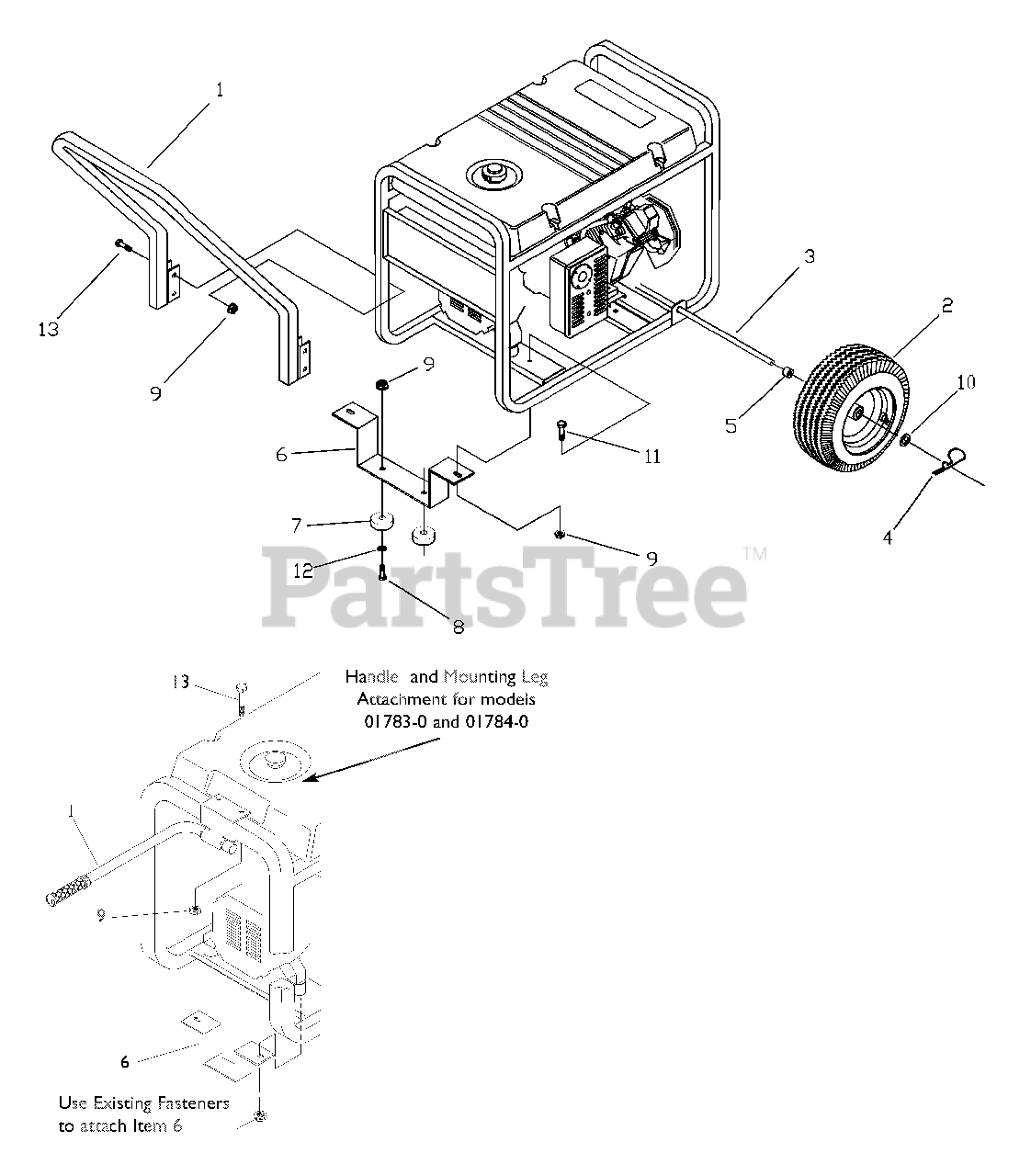

4000GCX (1783-0) - Generac 4,000 Watt Portable Generator Wheel Kit Parts Diagram

4,000 Watt Portable Generator

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton B93393GS

HANDLE

Note: Used on model 01785-0

$

$

Currently unavailable

1

Briggs & Stratton B4217GS

ASSY, Handle
(Superseded to 189715GS)

Note: Used on model 01783-0; Used on model 01784-0

$58.99

$

In Stock, only 4 left!

0

2

Briggs & Stratton 89742GS

WHEEL

Note: Used on model 01785-0

$

$

Not available

2

Briggs & Stratton B4966GS

WHEEL
(Superseded to 209636GS)

Note: Used on model 01783-0; Used on model 01784-0

$99.99

$

In Stock, only 4 left!

0

3

Briggs & Stratton 93693GS

AXLE
(Superseded to 191267RGS)

Note: Used on model 01785-0

$47.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 93693FGS

AXLE
(Superseded to 191267FGS)

Note: Used on model 01783-0; Used on model 01784-0

$

$

Not available

4

Briggs & Stratton 87005GS

PIN, Retaining

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B89635GS

SPACER,Wheel

Note: Used on model 01785-0

$31.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B89595GS

LEG, Support
(Superseded to 200543GS)

Note: Used on model 01785-0

$68.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1764GS

LEG, Mounting

Note: Used on model 01783-0; Used on model 01784-0

$

$

Not available

7

Briggs & Stratton 27007GS

MOUNT,Vibration
(Superseded to 191413GS)

Note: Used on model 01785-0

$6.99

$

In Stock, Qty 8

0

8

Briggs & Stratton 42909GS

SCREW

Note: Used on model 01785-0

$

$

Not available

9

Briggs & Stratton 52858GS

NUT, Lock

$3.99

$

In Stock, Qty 12

0

10

Briggs & Stratton 22247GS

WASHER,Wheel
(Superseded to 5025281SM)

$4.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 39253GS

SCREW
(Superseded to 703988)

Note: Used on model 01785-0

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22145GS

WASHER
(Superseded to 703350)

Note: Used on model 01785-0

$4.49

$

In Stock, Qty 11

0

13

Briggs & Stratton 39287GS

SCREW

$3.99

$

Usually ships in 2-12 days

0
