4008 (1690173) - Simplicity 36" Lawn Tractor Mower, 8hp Electrical (Manual Start) Group (4008) Parts Diagram

36" Lawn Tractor Mower, 8hp

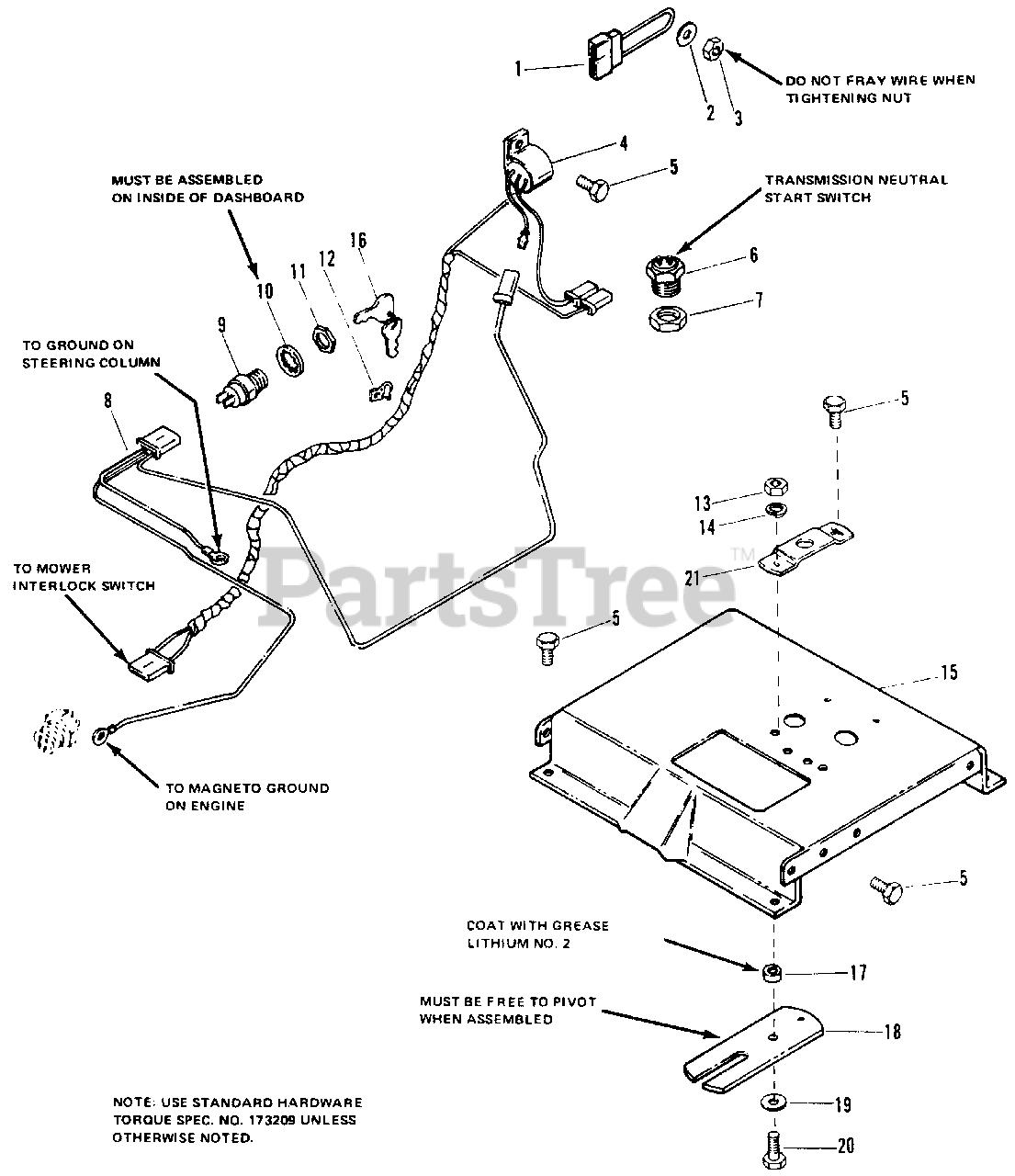

Electrical (Manual Start) Group (4008) Parts Diagram

  • Title

1

Simplicity 1655401

WIRE ASSEMBLY

$

$

Not available

2

Simplicity 2171379SM

WASHER, Cup

$

$

Not available

3

Simplicity 2823362

NUT, Hex, full lock, 5/16-18

$

$

Not available

4

Simplicity 1655059

IGNITION INTERLOCK

$

$

Not available

5

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

6

Simplicity 1654634SM

SWITCH, Interlock

$49.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930647

NUT, Pal, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1655106

HARNESS, Wire

$

$

Not available

9

Simplicity 1664804SM

SWITCH, Manual Start
(Superseded to 7017817YP)

Note: REF. NO. 9 INCLUDES REF. NO. 16

$33.99

$

In Stock, only 2 left!

0

10

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available

11

Simplicity 2122234SM

NUT, Special, 5/8-32
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 2165073SM

CLIP, Wire

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 1655087

SUPPORT, Frame

$

$

Not available

16

Simplicity 1717163SM

KEYS, (Set of 2)

$9.49

$

In Stock, Qty 5

0

17

Simplicity 1655085

SPACER

$

$

Not available

18

Simplicity 1655086

LEVER, Switch

$

$

Not available

19

Simplicity 2157643

WASHER

$

$

Not available

20

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

21

Simplicity 1655600

BRACKET, Switch

$

$

Not available
