4008 (1690173) - Simplicity 36" Lawn Tractor Mower, 8hp Engine & Drive Group (4008) Parts Diagram

36" Lawn Tractor Mower, 8hp

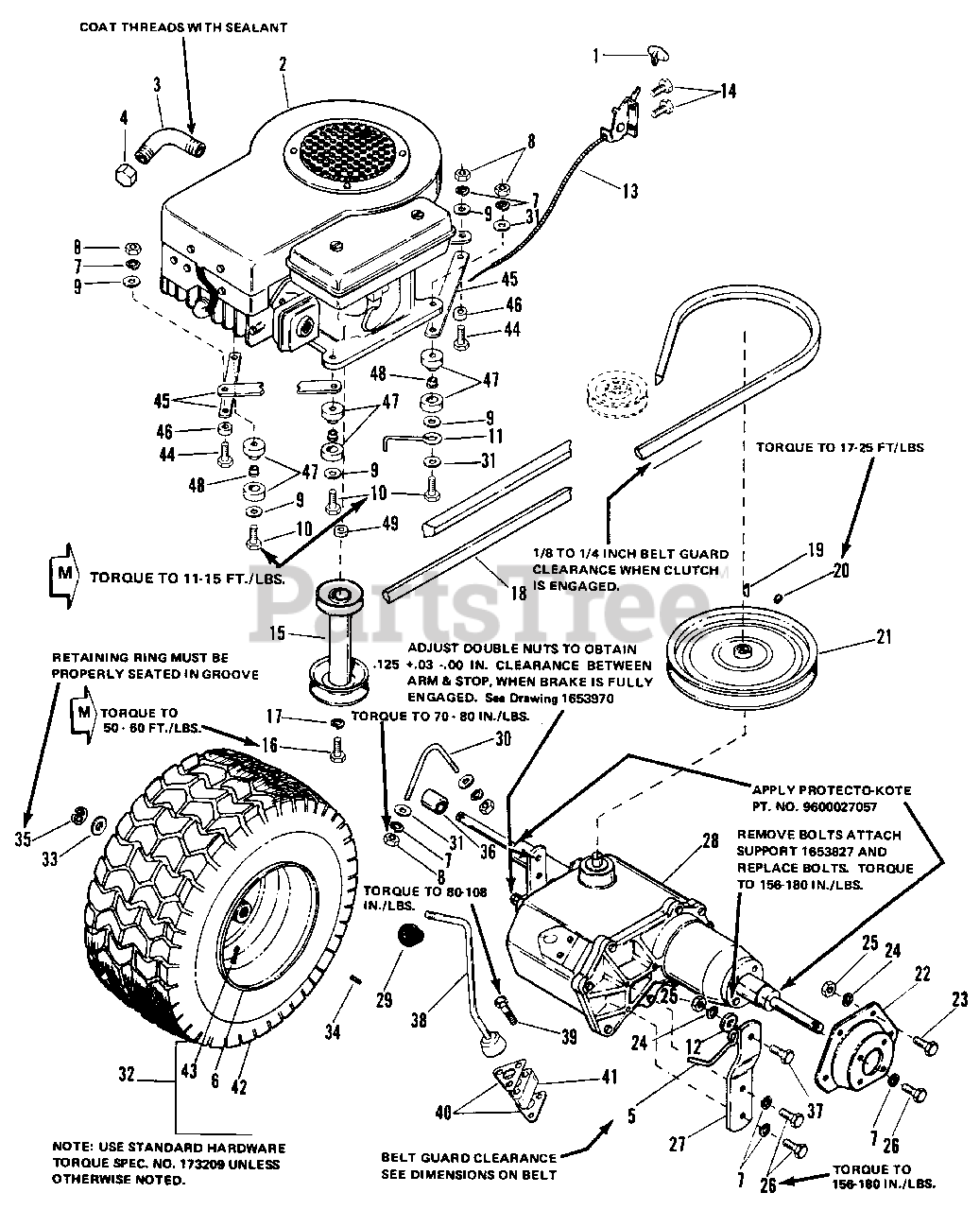

Engine & Drive Group (4008) Parts Diagram

  • Title

1

Simplicity 1656099SM

KNOB
(Superseded to 1719768SM)

$13.99

$

Usually ships in 2-12 days

0

2

ENGINE, (Manual Start) B/S Model

$

$

Not available

3

Simplicity 1658032SM

DRAIN, Oil

$

$

Not available

4

Simplicity 2801752

CAP, Pipe 3/4

$

$

Not available

5

Simplicity 2172845SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1654704

WHEEL

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 1917372SM

NUT, Hex Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

9

Simplicity 2819381

WASHER, Plain 5/16

$

$

Not available

10

Simplicity 925689

CAPSCREW, Hex Hd., 5/16-18 x 3

$

$

Not available

11

Simplicity 2172844SM

STOP, Belt

$36.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1687058SM

CONTROL, Throttle

$58.99

$

Usually ships in 2-12 days

0

14

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1657118SM

PULLEY, Engine

$237.99

$

Usually ships in 2-12 days

0

16

Simplicity 2828038

CAPSCREW, 7/16-20 x 1 1/4

$

$

Not available

17

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

18

Simplicity 1703836SM

V-BELT, Arbor Drive, 50"

$46.99

$

In Stock, Qty 6

0

19

Simplicity 2818312SM

KEY
(Superseded to 703891)

$5.49

$

In Stock, Qty 8

0

20

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.99

$

In Stock, Qty 5

0

21

Simplicity 1656749SM

PULLEY, 10"

$159.99

$

Usually ships in 2-12 days

0

22

Simplicity 1653827

SUPPORT, Axle, L.H.

$

$

Not available

23

Simplicity 2821965

CAPSCREW, 3/8-16 x 3/4

$

$

Not available

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

25

Simplicity 2816950SM

NUT, Hex 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 2 left!

0

26

Simplicity 2821333

CAPSCREW, 5/16-18 x 1

$

$

Not available

27

Simplicity 1653979

SUPPORT, Strap

$

$

Not available

28

TRANSAXLE

$

$

Not available

29

Simplicity 1729255SM

KNOB

Note: SEE PEERLESS DEALER FOR SERVICE NOT AVAILABLE THROUGH SlMPLICITY

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 1655084

BOLT, Axle

$

$

Not available

31

Simplicity 2817642

WASHER, Plain 5/16

$

$

Not available

32

Simplicity 1654705

WHEEL & TIRE

$

$

Not available

33

Simplicity 2154071

WASHER

$

$

Not available

34

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, Qty 12

0

35

Simplicity 2157286

RING, Retaining

$

$

Not available

36

Simplicity 1663180SM

SPACER

$64.99

$

In Stock, only 1 left!

0

37

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1 1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, Qty 7

0

38

Simplicity 1655063

LEVER, Shift

Note: SEE PEERLESS DEALER FOR SERVICE NOT AVAILABLE THROUGH SlMPLICITY

$

$

Not available

39

Simplicity 1655105

SCREW, Washer head,1/4-20 x 1 3/4

Note: SEE PEERLESS DEALER FOR SERVICE NOT AVAILABLE THROUGH SlMPLICITY

$

$

Not available

40

Simplicity 1655104

GASKET

Note: SEE PEERLESS DEALER FOR SERVICE NOT AVAILABLE THROUGH SlMPLICITY

$

$

Not available

41

Simplicity 1655062

BLOCK, Riser

Note: SEE PEERLESS DEALER FOR SERVICE NOT AVAILABLE THROUGH SlMPLICITY

$

$

Not available

42

Simplicity 1654706

TIRE

$

$

Not available

43

Simplicity 2171270

VALVE STEM & CAP

$

$

Not available

44

Simplicity 2821977

CAPSCREW, 5/16-18 x 1 1/4

$

$

Not available

45

Simplicity 1656661

STRAP

$

$

Not available

46

Simplicity 1656662

SPACER

$

$

Not available

47

Simplicity 1656665

MOTOR MOUNT

$

$

Not available

48

Simplicity 1656669

BUSHING, Engine Mount

$

$

Not available

49

Simplicity 2105051

SPACER

$

$

Not available
