400S (5901729) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

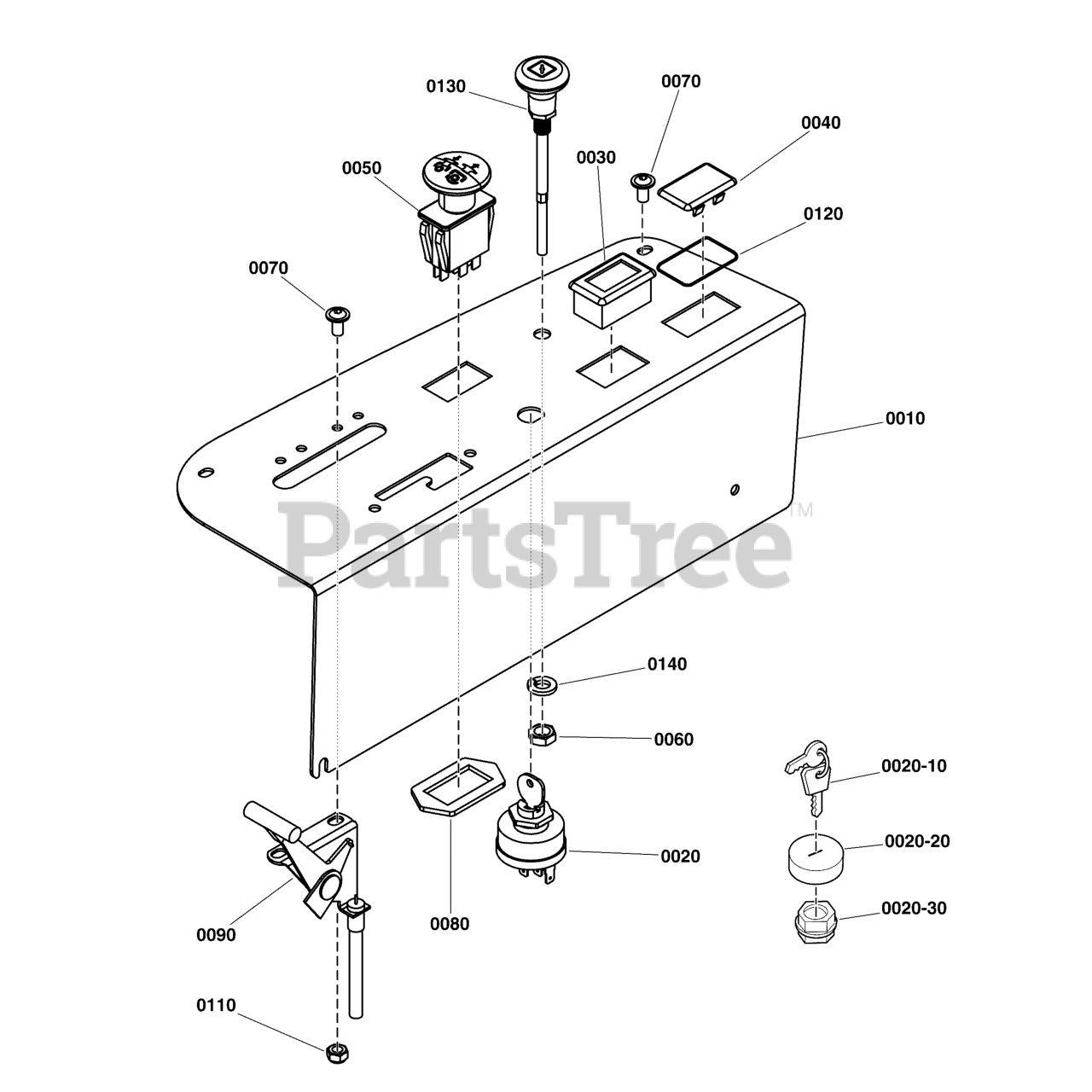

Instrument Control Panel Group Parts Diagram

  • Title

0010

Ferris 5416689A

PLATE, DASH PANEL, R-SERIES - BLK

$43.99

$

Usually ships in 2-12 days

0

0020

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$34.99

$

In Stock, Qty 11

0

0020-10

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

0020-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.99

$

In Stock, Qty 7

0

0020-30

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 2 left!

0

0030

Ferris 84008510

HOURMETER

$35.99

$

In Stock, only 2 left!

0

0040

Ferris 1722611

PLUG, Hole (Black Plastic)
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

0050

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

0060

Ferris 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.99

$

In Stock, only 2 left!

0

0080

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

0090

Ferris 5048231

CABLE, Throttle Control, 40"
(Superseded to 5048231SM)

$49.99

$

In Stock, only 3 left!

0

0110

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, only 4 left!

0

0120

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5047143

CABLE, CHOKE CONTROL, 39.5"
(Superseded to 5047143SM)

$59.99

$

In Stock, only 1 left!

0

0140

Ferris 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$4.49

$

In Stock, only 1 left!

0
