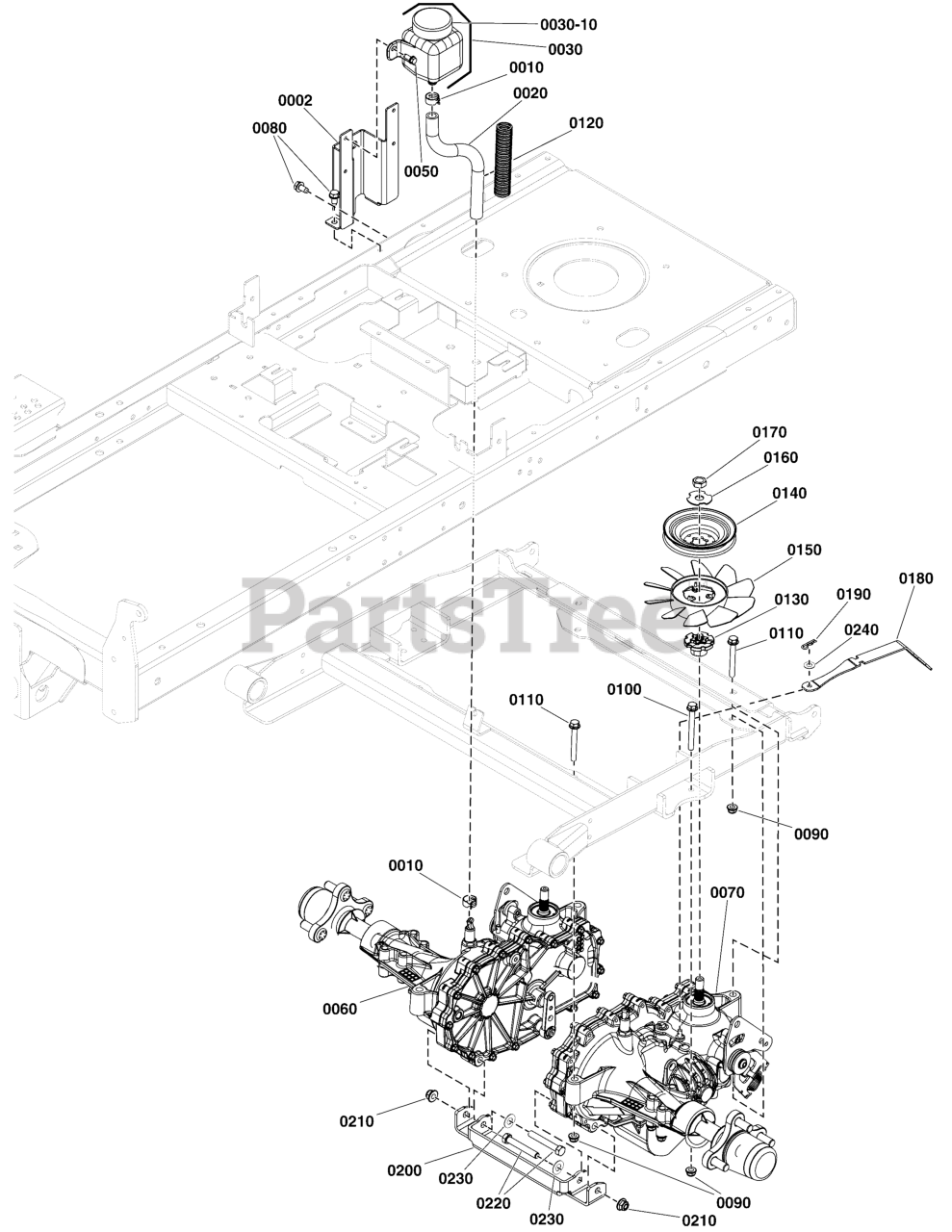

400S (5901740) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Hydraulic Group - Export - S/N: 4000034138 & Below Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

Hydraulic Group - Export - S/N: 4000034138 & Below Parts Diagram

  • Title

0002

Ferris 5416652A

PLATE, HYDRO RES. MOUNT - BLK

$32.99

$

Usually ships in 2-12 days

0

0010

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5050857X9P5

HOSE, 1/2 PUSH-LOCK, 9.50
(Superseded to 5050857X9P5YP)

$12.99

$

In Stock, only 2 left!

0

0030

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

$40.99

$

In Stock, only 1 left!

0

0030-10

Ferris 5100778X1

RESERVIOR CAP

$20.99

$

Usually ships in 2-12 days

0

0050

Ferris 80004190

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

0060

Ferris 5106101

TRANSAXLE, ZT3100, RH, ZJ-LPEE-3F7C-39LX

Note: (Refer to Note: *)(S/N: 40015467047 and below)

$2157.99

$

Usually ships in 2-12 days

0

0060

Ferris 5109250

TRANSAXLE, ZT-3100, RH,ZJ-LPEE-SF7C-39LX

Note: (Refer to Note: *)(S/N: 40015467048 and above)

$

$

Currently unavailable

0070

Ferris 5106102

TRANSAXLE, ZT3100, LH, ZJ-HPEE-3F7B-29LX

Note: (Refer to Note: *)(S/N: 40015467047 and below)

$2155.99

$

Usually ships in 2-12 days

0

0070

Ferris 5109249

TRANSAXLE, ZT-3100, LH,ZJ-HPEE-SF7B-29LX
(Superseded to 84006971)

Note: (Refer to Note: *)(S/N: 40015467048 and above)

$1233.99

$

Usually ships in 2-12 days

0

0080

Ferris 80005404

SCREW,5/16-18X0.625,WSHR,THD-ROLL,ZC/CL
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 80008909

SCREW, HEX WASHER HD-5/16-18X3.00
(Superseded to 707943)

$5.99

$

Usually ships in 2-12 days

0

0110

Ferris 80018048

SCREW, HEX WASHER HD-5/16-18X2.50
(Superseded to 770083)

$2.99

$

Usually ships in 2-12 days

0

0120

Ferris 5050862X5

WIRE LOOM, 3/4 ID X 5 IN
(Superseded to 5050862X5FS)

$3.99

$

Usually ships in 2-12 days

0

0130

Ferris 1759450

SPACER, TRANSMISSION INPUT
(Superseded to 1759450YP)

Note: (Service part for transmission)

$12.99

$

Usually ships in 2-12 days

0

0140

Ferris 1759447

PULLEY, TRANSMISSION INPUT (4.50")
(Superseded to 1759447FS)

Note: (Service part for transmission)

$23.99

$

Usually ships in 2-12 days

0

0150

Ferris 1759449

FAN, 7" CCW INPUT (WHITE)
(Superseded to 1759449FS)

Note: (Service part for transmission)

$12.99

$

Usually ships in 2-12 days

0

0160

Ferris 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

Note: (Service part for transmission)

$3.99

$

Usually ships in 2-12 days

0

0170

Ferris 5102916

NUT, ZT5400
(Superseded to 5102916YP)

Note: (Service part for transmission)

$3.49

$

In Stock, only 2 left!

0

0180

Ferris 1759276A

VALVE, TOW (2800 SUSP) (BLACK)
(Superseded to 1759276AYP)

$14.99

$

Usually ships in 2-12 days

0

0190

Ferris 80003663

HAIRPIN.080 WIRE 1.19LG.25DIA,ZINC/CLEAR
(Superseded to 703430)

$3.49

$

In Stock, Qty 7

0

0200

Ferris 1759172A

BRKT, FRONT TRANS SUPPORT (2800)(BLACK)
(Superseded to 1759172AA)

$64.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0

0220

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

0230

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0240

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
