400S (5901990) - Ferris 400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton CE Guarding Group Parts Diagram

400S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

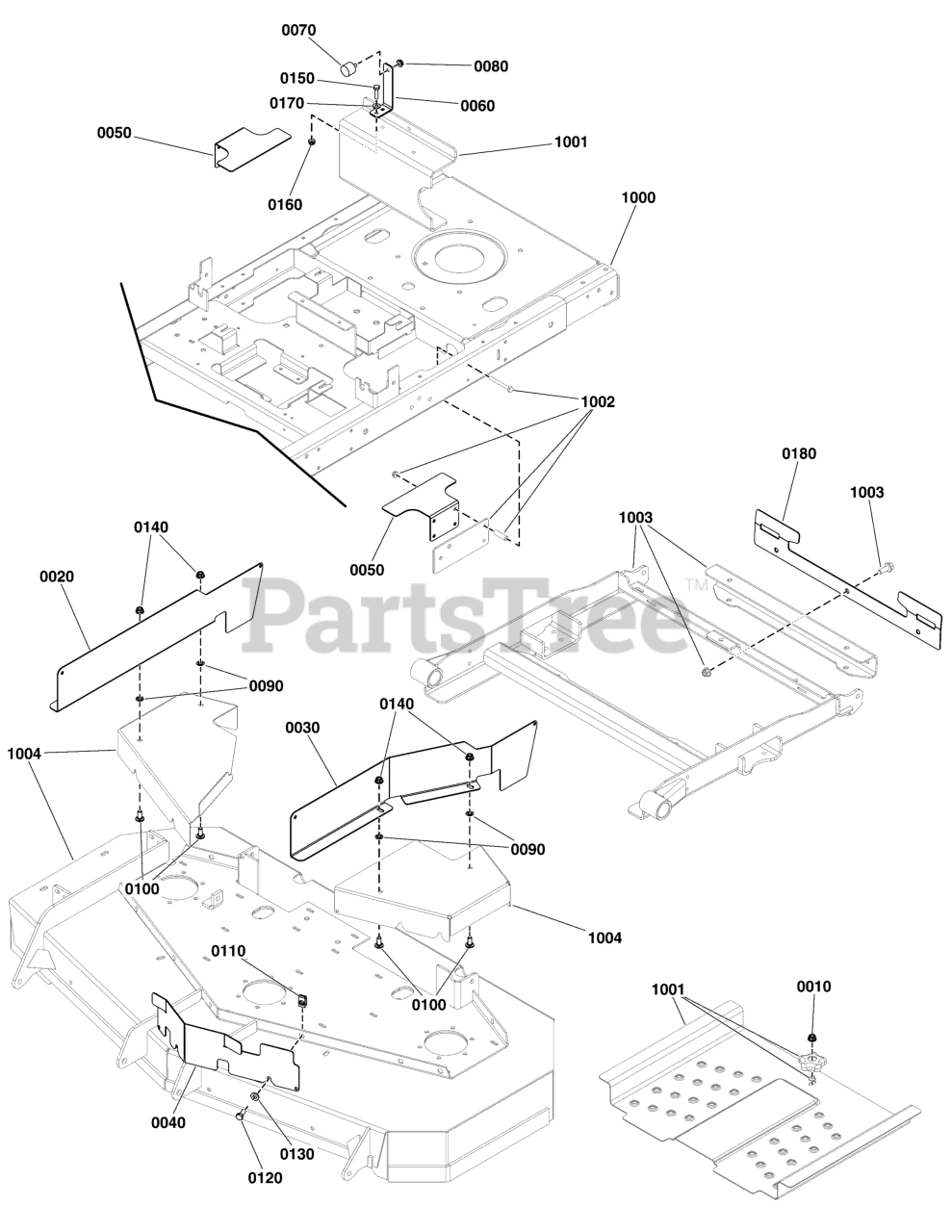

CE Guarding Group Parts Diagram

  • Title

0010

Ferris 80003547

NUT 1/4-20 CNTR FLNG ZINC/CLEAR
(Superseded to 15X143MA)

$4.99

$

In Stock, only 4 left!

0

0020

Ferris 5417261B

PLATE, RH UPPER DECK GUARD, CE48 - RED

$

$

Currently unavailable

0030

Ferris 5417262B

PLATE, LH UPPER DECK GUARD, CE48 - RED

$

$

Currently unavailable

0040

Ferris 5417263B

PLATE, CENTER DECK GUARD, CE 48 - RED

$

$

Currently unavailable

0050

Ferris 5417264B

PLATE, BELT GUARD, 400S CE - RED

$

$

Currently unavailable

0060

Ferris 5417265A

PLATE, BRACKET, SEAT LOCK - BLK

$

$

Currently unavailable

0070

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0100

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0110

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

0120

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

0130

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0140

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0

0160

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0170

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0180

Ferris 5417266B

PLATE, FAN GUARD, 400S CE - RED

$

$

Currently unavailable

1000

Refer to: Main Frame & Front Suspension Group

$

$

Not available

1001

Refer to: Seat Mount & Floor Group

$

$

Not available

1002

Refer to: Motion Control Group

$

$

Not available

1003

Refer to: Rear Suspension Group

$

$

Not available

1004

Refer to: Housing, Covers, Spindles & Blades Group

$

$

Not available
