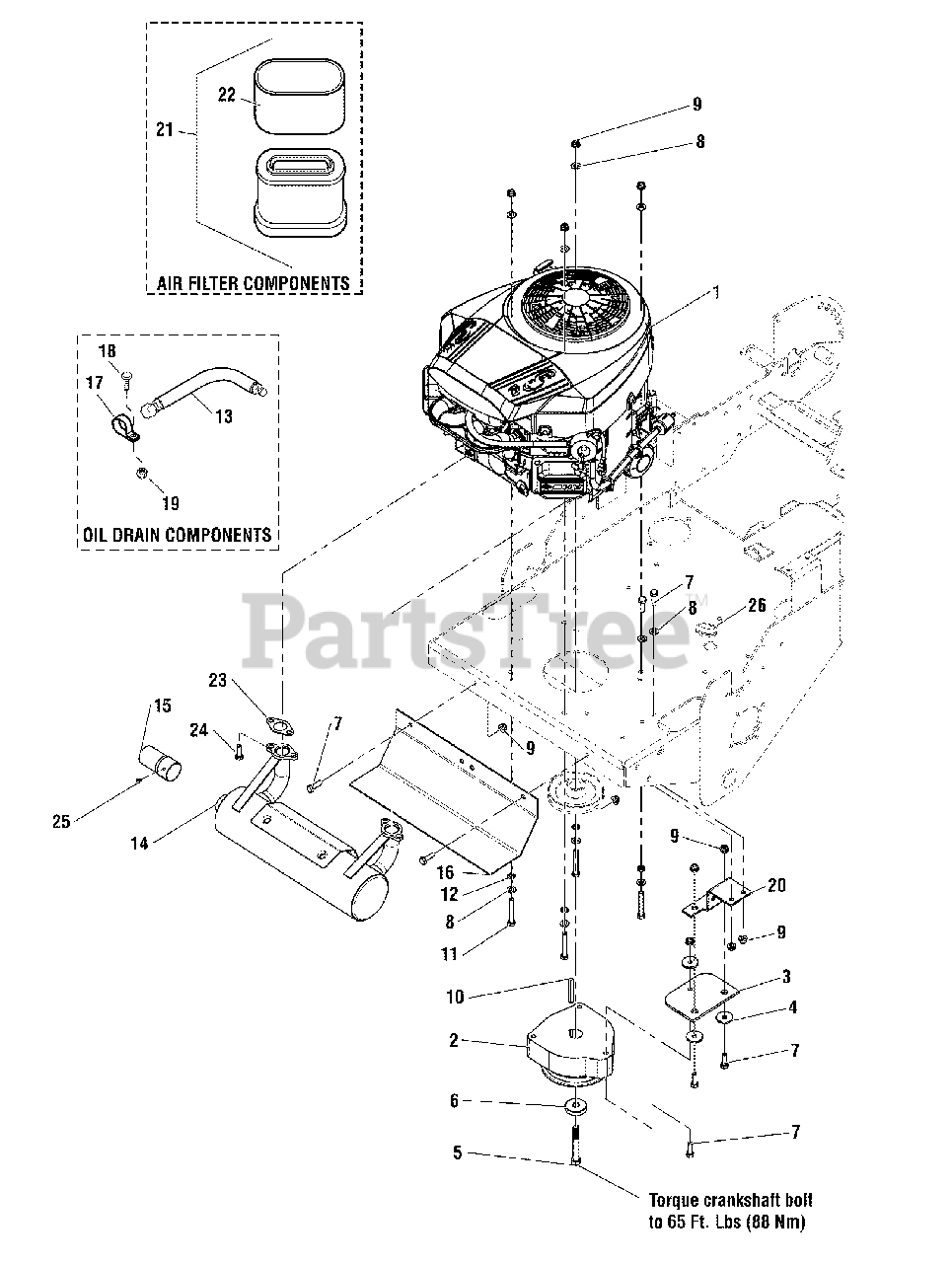

400Z (B 2450) (5900706) - Snapper 50" Zero-Turn Mower, 24hp Engine & PTO Group - 24 HP Briggs & Stratton Parts Diagram

50" Zero-Turn Mower, 24hp

Engine & PTO Group - 24 HP Briggs & Stratton Parts Diagram

  • Title

1

Snapper 44M777-0113-E1

* ENGINE-24HP B&S, ELS #44M777-0113-E1

$

$

Not available

2

Snapper 5023100

CLUTCH, ELECTRIC, 1" SHAFT
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

3

Snapper 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

4

Snapper 5044617

WASHER, .34 X 1.25 X 10GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

5

Snapper 5023253

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4" YZ
(Superseded to 5103300YP)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5050407X18

KEY, 1/4" SQ. X 3-1/2"
(Superseded to 5050407X18SM)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

14

Snapper 5100907

MUFFLER, 22HP B&S - ELS - IS500Z
(Superseded to 5100907SM)

$

$

Not available

15

Snapper 5104348

EXTENSION, TAILPIPE, 3" - BLK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

16

Snapper 5401071D

PLATE, HEAT SHIELD
(Superseded to 5401071DYP)

$27.99

$

Usually ships in 2-12 days

0

17

Snapper 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 5025010X6

BOLT, 1/4-20 X 3/4" GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

19

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 5048226D

ANCHOR, CLUTCH
(Superseded to 5048226DYP)

$27.99

$

Usually ships in 2-12 days

0

21

Snapper 792105

AIR CLEANER W / PRE CLEANER (SV)

Note: (INCLUDES REF. NO. 22)

$28.99

$

In Stock, Qty 20+

0

22

Snapper 792303

PRE CLEANER (SV)

$10.99

$

In Stock, Qty 14

0

23

Snapper 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 14

0

24

Snapper 94480

SCREW, SEM HEX HEAD
(Superseded to 690341)

$5.99

$

In Stock, only 2 left!

0

25

Snapper 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 5023236

GROMMET
(Superseded to 5023236SM)

$2.99

$

Usually ships in 2-12 days

0

27

Snapper 696854

FILTER, Oil

Note: (NOT SHOWN)

$13.99

$

In Stock, Qty 20+

0
