400Z (B 2548) (5901409) - Snapper 48" Zero-Turn Mower, 25hp Instrument & Control Panel Group - Single Tank Parts Diagram

48" Zero-Turn Mower, 25hp

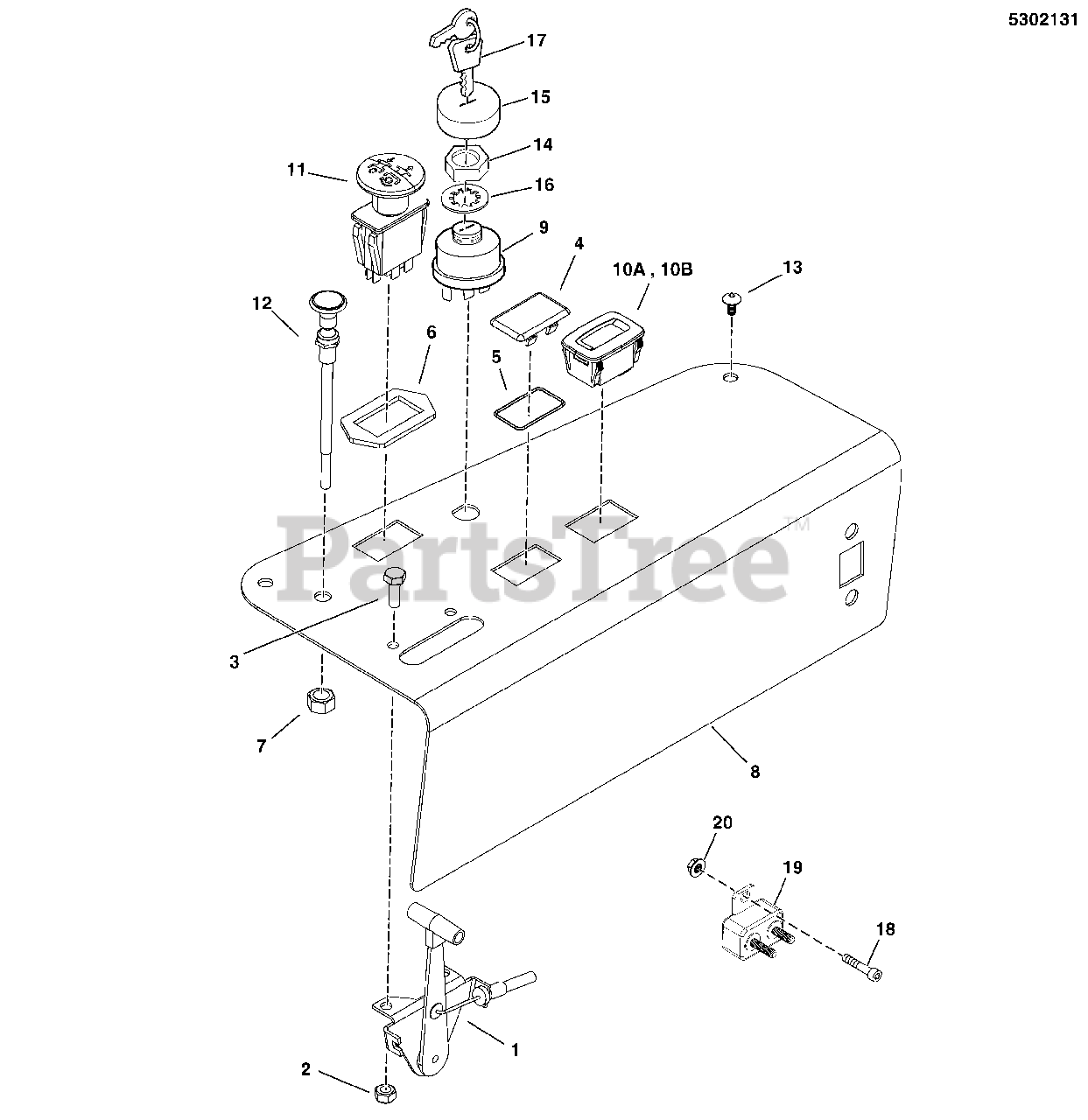

Instrument & Control Panel Group - Single Tank Parts Diagram

  • Title

1

Snapper 5020811

CABLE, THROTTLE CONTROL, 38
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

2

Snapper 5025095

HUT, HEX NYLON LOCK, 1/4x20"
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

3

Snapper 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

4

Snapper 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 6

0

5

Snapper 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5406624A

PLATE, CONTROL PANEL - BLACK
(Superseded to 5406624AYP)

$59.99

$

Usually ships in 2-12 days

0

9

Snapper 1737853

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr
(Superseded to 1737853YP)

$35.99

$

Usually ships in 2-12 days

0

10a

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(*See Footnote)

$

$

Not available

10b

Snapper 5102417

HOUR METER
(Superseded to 5102417YP)

Note: (S/N: 2015551937 & Below)

$65.99

$

In Stock, only 1 left!

0

11

Snapper 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

12

Snapper 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

Note: (Briggs & Stratton Models Only)

$55.99

$

Usually ships in 2-12 days

0

12

Snapper 5047143

CABLE, CHOKE CONTROL, 39.5"
(Superseded to 5047143SM)

Note: (Kawasaki Models Only)

$56.99

$

Usually ships in 2-12 days

0

13

Snapper 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 4 left!

0

14

Snapper 1717549

NUT, 5/8-32 Hex Flange (Ignition Switch Die Cast)
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

15

Snapper 1717550

COVER, For Ignition Switch, Plastic
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 9

0

16

Snapper 1960547

LOCKWASHER-INTERNAL TOOTH, .625 THIN BLK (SV)
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

17

Snapper 1737836

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish (set of two, one coated)
(Superseded to 1737836YP)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

Note: (S/N: 2016499707 & Above)

$4.99

$

In Stock, only 4 left!

0

19

Snapper 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

Note: (S/N: 2016499707 & Above)

$14.99

$

In Stock, Qty 9

0

20

Snapper 5025126

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 5025126FS)

Note: (S/N: 2016499707 & Above)

$4.49

$

Usually ships in 2-12 days

0
