400Z (B 2748) (5900528) - Snapper 48" Zero-Turn Mower, 27hp Main Frame & Front Casters Group Parts Diagram

48" Zero-Turn Mower, 27hp

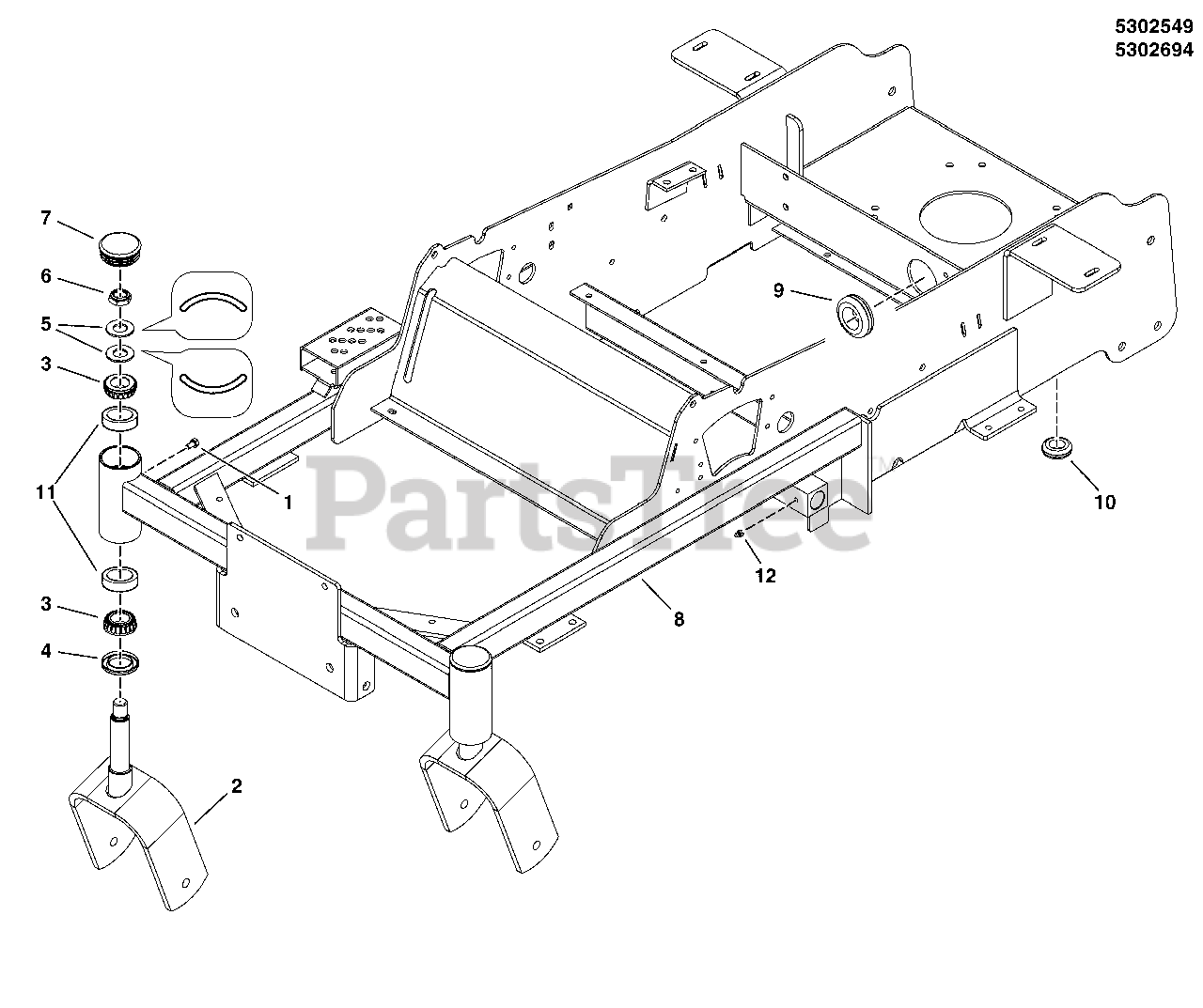

Main Frame & Front Casters Group Parts Diagram

  • Title

1

Snapper 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 1 left!

0

2

Snapper 5402539D

WELD, CASTER YOKE - RED
(Superseded to 5402539DYP)

$177.99

$

Usually ships in 2-12 days

0

3

Snapper 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, only 3 left!

0

4

Snapper 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

In Stock, only 4 left!

0

6

Snapper 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, only 1 left!

0

7

Snapper 5100882

CAP, CASTER SPINDLE, LOW PROFILE
(Superseded to 5102929)

$9.99

$

In Stock, Qty 12

0

8

Snapper 5411983D

WELD, FRAME, 50XT-48 - RED

Note: (S/N: 2016656402 & Above)

$

$

Currently unavailable

8

Snapper 5411129D

WELD, FRAME, 50XT-48 - RED

Note: (S/N: 2016499707 - 2016656401)

$

$

Currently unavailable

8

Snapper 5406614D

WELD, MAIN FRAME, 48 - RED
(Superseded to 5406614DYP)

Note: (S/N: 2015070192 - 2016499706)

$2175.99

$

Usually ships in 2-12 days

0

8

Snapper 5403794D

WELD, MAIN FRAME, 48 - RED

Note: (S/N: 2015070191 & Below)

$

$

Not available

9

Snapper 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

11

Snapper 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0
