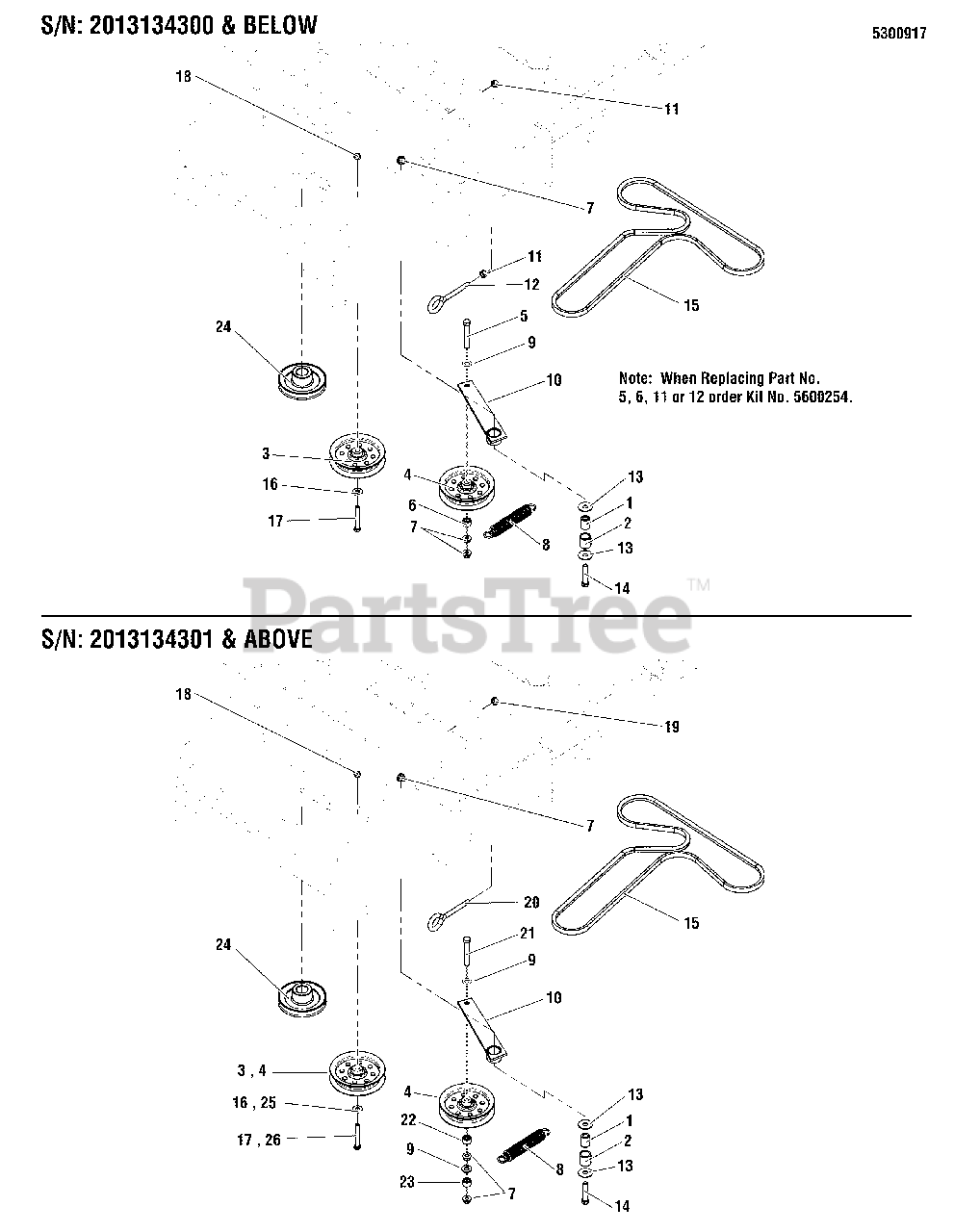

400Z (B 2748) (5900528) - Snapper 48" Zero-Turn Mower, 27hp Pump Drive Group Parts Diagram

48" Zero-Turn Mower, 27hp

Pump Drive Group Parts Diagram

  • Title

1

Snapper 5042658

SPACER, .38 X .75 X 1.06, YZ
(Superseded to 5042658SM)

$7.49

$

In Stock, Qty 6

0

2

Snapper 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

3

Snapper 5101379

PULLEY-IDLER, 4.06OD, .315ID, .75W STL
(Superseded to 5101379YP)

Note: (Briggs & Stratton Models)

$51.99

$

In Stock, only 1 left!

0

4

Snapper 5101380

PULLEY-IDLER, 4.06OD, .375ID, .75W STL
(Superseded to 5101380YP)

Note: (Qty: 2 - Kawasaki Models)

$51.99

$

Usually ships in 2-12 days

0

5

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

Note: (S/N: 2013134300 & Below)

$4.49

$

In Stock, Qty 6

0

6

Snapper 5047408

SPACER, .39 x .75 x .50
(Superseded to 5047408YP)

Note: (S/N: 2013134300 & Below)

$12.99

$

Usually ships in 2-12 days

0

7

Snapper 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 6

0

9

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5402919A

WELD, IDLER ARM, SNAPPER PRO - BLK
(Superseded to 5402919AA)

$33.99

$

Usually ships in 2-12 days

0

11

Snapper 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

Note: (S/N: 2013134300 & Below)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

Note: (S/N: 2013134300 & Below)

$9.49

$

In Stock, only 1 left!

0

13

Snapper 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

15

Snapper 5105189YP

BELT

$45.99

$

Usually ships in 2-12 days

0

16

Snapper 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

Note: (Briggs & Stratton Models)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

Note: (Briggs & Stratton Models)

$3.49

$

In Stock, only 1 left!

0

18

Snapper 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

Note: (Briggs & Stratton Models)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (S/N: 2013134301 & Above)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 5025141X26

EYE BOLT,5/16-18 X3.5,2.13THRD,.55EYE,CZ
(Superseded to 5025141X26YP)

Note: (S/N: 2013134301 & Above)

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 5025058X24

BOLT, 3/8-16 X 3 GD5 TFL
(Superseded to 5025058X24YP)

Note: (S/N: 2013134301 & Above)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

Note: (S/N: 2013134301 & Above)

$6.49

$

Usually ships in 2-12 days

0

23

Snapper 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

Note: (S/N: 2013134301 & Above)

$4.99

$

Usually ships in 2-12 days

0

24

SEE ENGINE GROUP

$

$

Not available

25

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: (Kawasaki Models)

$3.99

$

In Stock, only 1 left!

0

26

Snapper 5025544

BOLT,HEX FLG,SER GD5 3/8-16X2, PATCH,CZ
(Superseded to 5025544YP)

Note: (Kawasaki Models)

$6.49

$

Usually ships in 2-12 days

0
