401 (590-401-100) - Cub Cadet 60" Mower Deck, Mid Mount att 1-1/2" Hydraulic Cylinder Parts Diagram

60" Mower Deck, Mid Mount

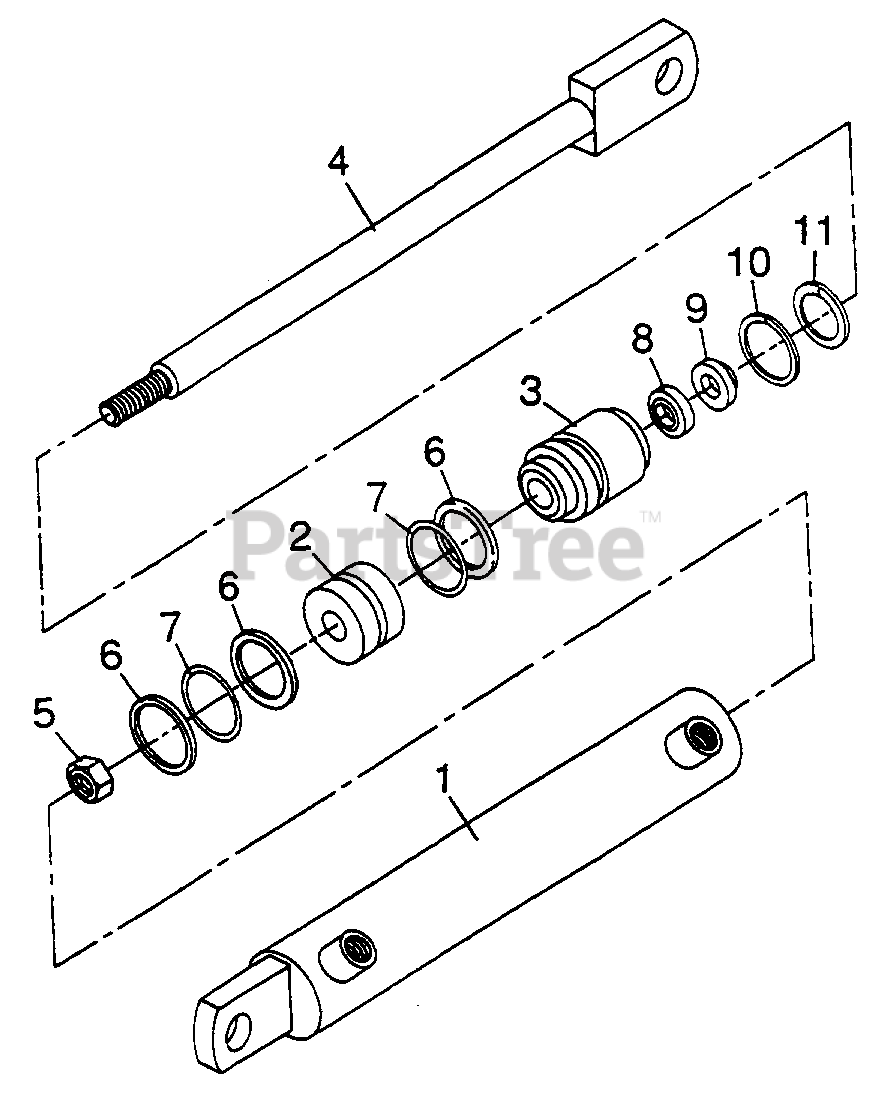

1-1/2" Hydraulic Cylinder Parts Diagram

  • Title

?A

Cub Cadet WM-66850

Cylinder Complete

$

$

Not available

1

Cylinder body 1.5 ID w/c

$

$

Not available

2

Piston, alum 1-1/2 O.D.

$

$

Not available

3

Guide 1-1/2 O.D.-3/4 I.D.

$

$

Not available

4

Rod .75 Dia w/c

$

$

Not available

5

1/2-20 Locknut

$

$

Not available

6

1.25 x 1.50 Backup ring

$

$

Not available

7

1-1/4 x 1-1/2 O-Ring

$

$

Not available

8

.25 x .75 x 1.00 U-cup lip

$

$

Not available

9

3/4 Wiper ring

$

$

Not available

10

1-1/2 Internal retaining ring

$

$

Not available

11

1-5/16 External retaining ring

$

$

Not available

?12

Cub Cadet WM-66851

Seal kit

Note: (Includes 6-11)

$133.99

$

Usually ships in 3-6 days
