401 (590-401-100) - Cub Cadet 60" Mower Deck, Mid Mount att 401 Front Mounting - 7000,7192,7194,7195,7200 & 7205 19/20HP Tractors Parts Diagram

60" Mower Deck, Mid Mount

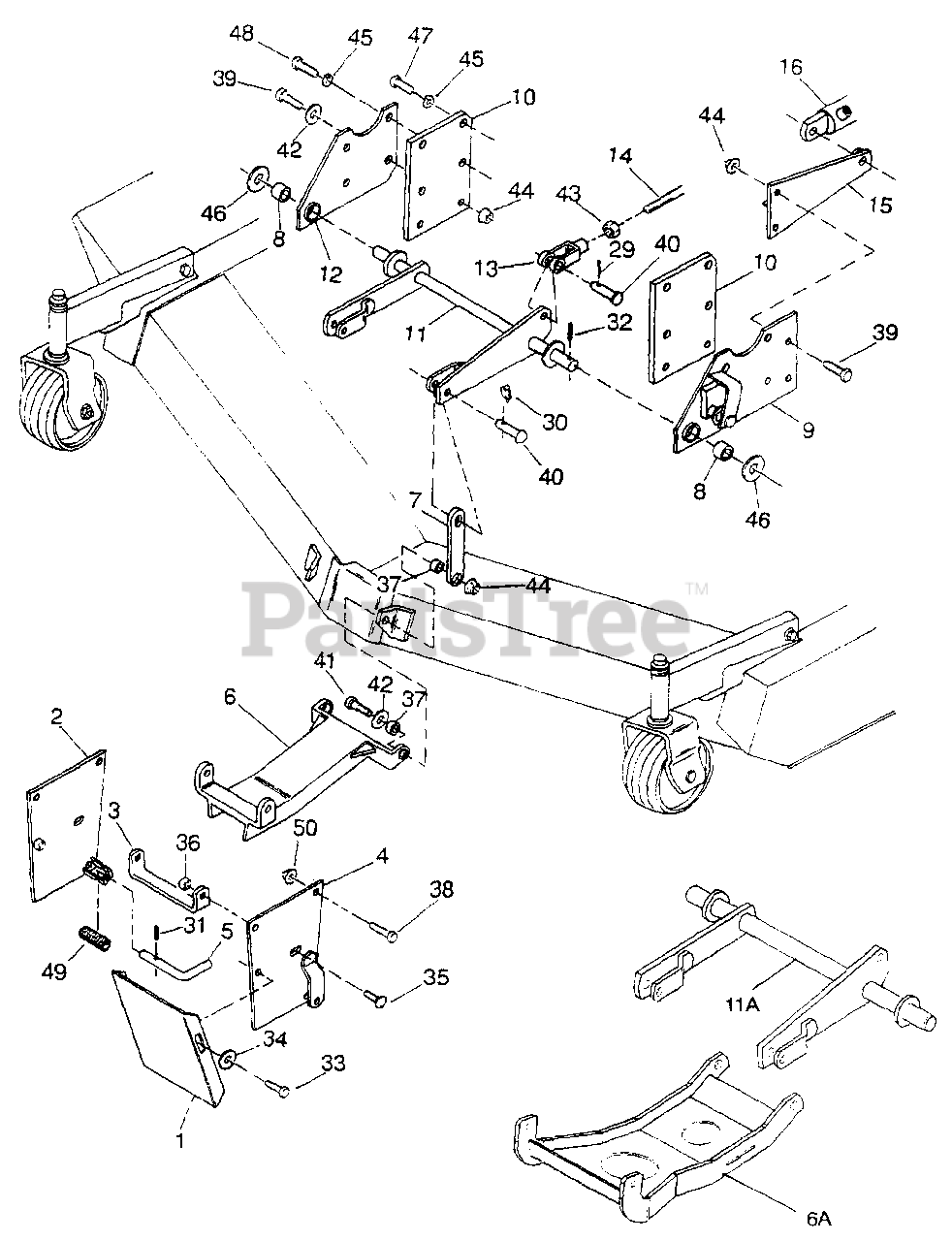

401 Front Mounting - 7000,7192,7194,7195,7200 & 7205 19/20HP Tractors Parts Diagram

  • Title

1

Cub Cadet WM-66573

Front mounting plate cover

$

$

Not available

2

Cub Cadet WM-66570

Right front mounting bracket weldment

$

$

Not available

3

Cub Cadet WM-66574

Mounting plate brace bar, 10.39

$

$

Not available

4

Cub Cadet WM-66571

Left front mounting bracket weldment

$

$

Not available

5

Cub Cadet WM-66836

Pin, Bent .5 dia. x 1.96

$

$

Not available

6

Cub Cadet WM-66572

Front mounting channel assembly

Note: (7192, 7194, 7195 tractors)

$

$

Not available

6A

Cub Cadet WM-52050

Front mounting channel

Note: (7000, 7200, 7205 tractors)

$

$

Not available

7

Cub Cadet WM-66584

Mower lift bar, .38 x 1.5 x 6.5

$

$

Not available

8

Cub Cadet WM-33545

1.015 x 1.25 x 1 Oilite bushing

$

$

Not available

9

Cub Cadet WM-66388

Left front lift stop

Note: (Includes item 8)

$

$

Not available

10

Cub Cadet WM-66575

Loader plate, .5 x 6.0 x 8.63

$

$

Not available

11

Cub Cadet WM-66583

Front rockshaft assembly

Note: (7192, 7194, 7195 tractors)

$

$

Not available

11A

Cub Cadet WM-52057

Front rockshaft

Note: (7000, 7200, 7205 tractors)

$

$

Not available

12

Cub Cadet WM-66576

Right front lift stop

Note: (Includes item 8)

$

$

Not available

13

Cub Cadet WM-33835

Adjustable clevis yoke, .50-13 x 3.0

$54.99

$

In Stock, only 1 left!

0

14

Mower lift pull rod

Note: (See "Rear Mounting For 7190 Series Tractors" illustration and parts list)

$

$

Not available

15

Cub Cadet WM-66595

Cylinder mounting bracket

$

$

Not available

16

Hydraulic cylinder

Note: (See "1-1/2" Hydraulic Cylinder" illustration and parts list)

$

$

Not available

29

Cub Cadet WM-1256

3/16 x 1 Cotter pin

$

$

Currently unavailable

30

Cub Cadet WM-22411

3/16 x 1 Klik pin
(Superseded to 753-04070)

$9.49

$

In Stock, Qty 20+

0

31

Cub Cadet WM-4115

3/16 x 1-1/8 Spring pin
(Superseded to 715-0150)

Note: Obtain Locally

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet WM-21022

1/4 x 2 Spirol pin

$

$

Not available

33

Cub Cadet WM-6096

5/16 NC x 3/4 Hex head cap screw GR5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet WM-4378

5/16 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

35

Cub Cadet WM-24890

3/8 NC x 1-1/4 Carriage bolt

Note: Obtain Locally

$

$

Currently unavailable

36

Cub Cadet WM-6698

3/8 NC Hex locknut
(Superseded to 912-3000)

Note: Obtain Locally

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet WM-22086

1/2 x 3/4 x 1/2 Sleeve

$

$

Not available

38

Cub Cadet WM-7832

5/8 NC x 1-1/2 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

39

Cub Cadet WM-24576

1/2 NC x 1-3/4 Hex head cap screw GR5

$

$

Not available

40

Cub Cadet WM-33817

1/2 x 1-3/4 Clevis pin

$

$

Not available

41

Cub Cadet WM-3699

1/2 NC x 2 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

42

Cub Cadet WM-3598

1/2 SAE Flat washer

Note: Obtain Locally

$

$

Currently unavailable

43

Cub Cadet WM-13859

1/2 NC Hex jam nut
(Superseded to 912-3048)

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet WM-11900

1/2 NC Flanged hex locknut

Note: Obtain Locally

$4.99

$

In Stock, only 1 left!

0

45

Cub Cadet WM-62580

9/16 Standard lockwasher

$

$

Not available

46

Cub Cadet WM-1863

1" SAE Flat washer

$

$

Not available

47

Cub Cadet WM-23030

14mm x 2.0 P x 35mm Hex head cap screw

$

$

Not available

48

Cub Cadet WM-34635

14mm x 2.0 P x 40mm Hex head cap screw

$

$

Not available

49

Cub Cadet WM-66510

Compression spring, .06 x .66 x 2.5

$

$

Not available

50

Cub Cadet WM-6239

5/8 NC Hex locknut

Note: Obtain Locally

$

$

Currently unavailable
