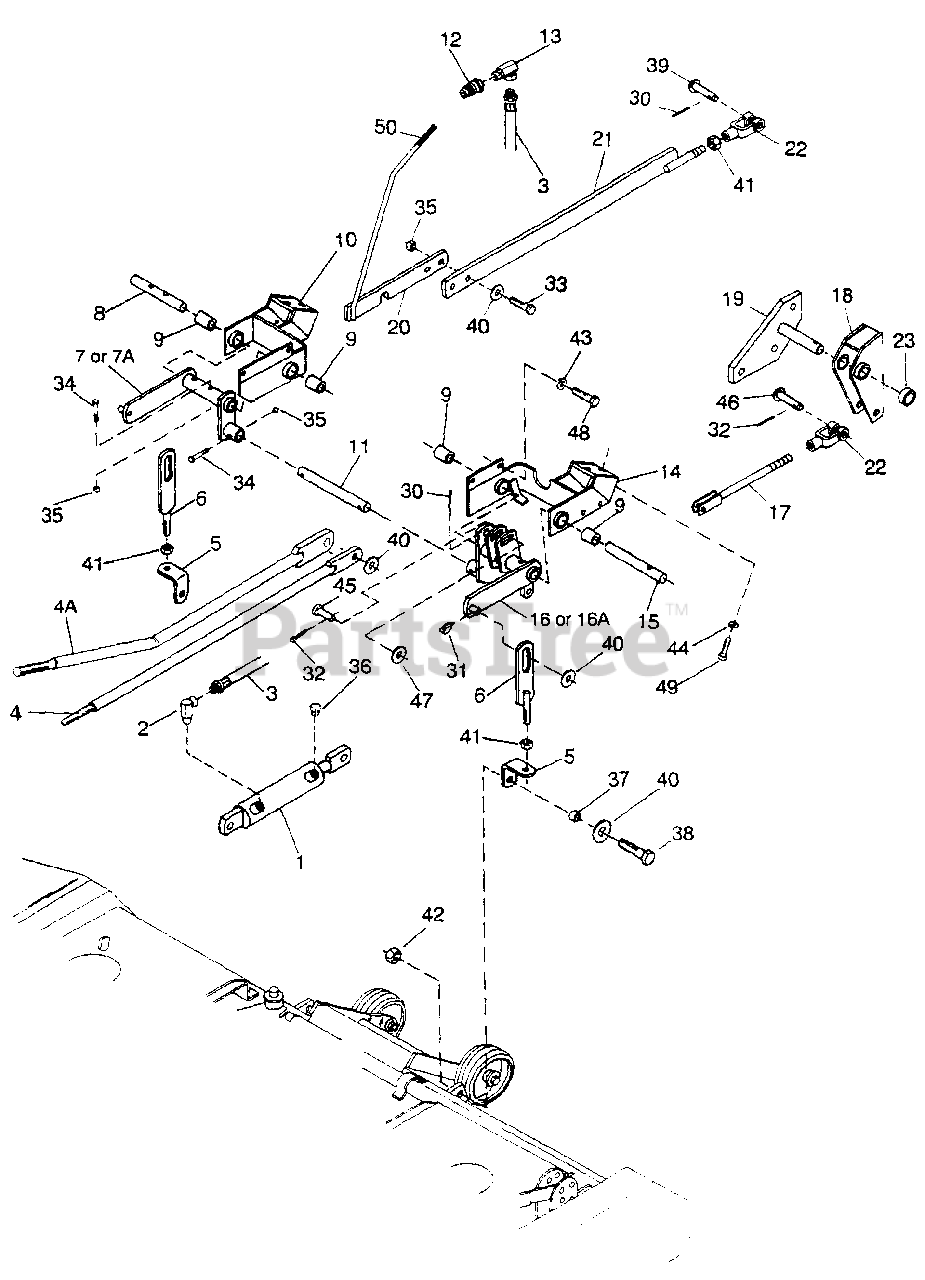

401 (590-401-100) - Cub Cadet 60" Mower Deck, Mid Mount att 401 Rear Mounting - 7000,7192,7194,7195,7200 & 7205 19/20HP Tractors Parts Diagram

60" Mower Deck, Mid Mount

401 Rear Mounting - 7000,7192,7194,7195,7200 & 7205 19/20HP Tractors Parts Diagram

  • Title

1

Hydraulic lift cylinder

Note: (See "1-1/2" Hydraulic Cylinder" illustration and parts list)

$

$

Not available

2

Cub Cadet WM-8572

1/4 x 1/4 90° Swivel street elbow

$

$

Not available

3

Cub Cadet WM-31408

1/4 NPT x 50 High-pressure hose assembly

$

$

Not available

4

Cub Cadet WM-66831

Mower lift pull rod assembly

Note: (7192, 7194, 7195)

$

$

Not available

4A

Cub Cadet WM-52055

Mower lift pull rod assembly

Note: (7000, 7200, 7205)

$

$

Not available

5

Cub Cadet WM-66834

Lower lift link 1/2-13

$49.99

$

Usually ships in 3-6 days

0

6

Cub Cadet WM-66833

Rear lift bar assembly

$64.99

$

In Stock, only 1 left!

0

7

Cub Cadet WM-66588

Right rear rockshaft assembly

Note: (7192, 7194, 7195)

$

$

Not available

7A

Cub Cadet WM-52061

Right rear rockshaft assembly

Note: (7000, 7200, 7205)

$

$

Not available

8

Cub Cadet WM-66830

Bar, drilled 1.0 dia. x 8.56

$

$

Not available

9

Cub Cadet WM-33545

1.015 x 1.25 x 1 Oilite bushing

$

$

Not available

10

Cub Cadet WM-66598

Right rear rockshaft mounting

Note: (Includes bushing #9)

$

$

Not available

11

Cub Cadet WM-66825

Bar, drilled 1.0 x 10.31

$

$

Not available

12

Cub Cadet WM-66511

Coupler, Male 1/2 NPT

$

$

Not available

13

Cub Cadet WM-25338

1/2M x 1/4F 90° Swivel elbow

$

$

Not available

14

Cub Cadet WM-66599

Left rear rockshaft mounting

Note: (Includes bushing #9)

$

$

Not available

15

Cub Cadet WM-66586

Bar, drilled 1.0 dia. x 8.9

$

$

Currently unavailable

16

Cub Cadet WM-66589

Left rear rockshaft assembly

Note: (7190 series)

$

$

Not available

16A

Cub Cadet WM-52056

Left rear rockshaft assembly

Note: (7000, 7200, 7205 tractors)

$

$

Not available

17

Cub Cadet WM-66332

Rear pull rod

Note: (Mechanical only)

$

$

Not available

18

Cub Cadet WM-66334

Rear lift arm assembly

Note: (Includes bushing #23); (Mechanical only)

$

$

Not available

19

Cub Cadet WM-34691

Lift mounting plate assembly
(Superseded to WM-65068)

Note: (Mechanical only)

$

$

Not available

20

Cub Cadet WM-66380

Lock-up bar

$

$

Not available

21

Cub Cadet WM-66390

Lock-up extension

$

$

Not available

22

Cub Cadet WM-33835

Adj. clevis yoke, .50-13 x 3.0

$54.99

$

In Stock, only 1 left!

0

23

Cub Cadet WM-34648

Bushing, 7/8 x 1 x 5/8

$

$

Not available

30

Cub Cadet WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

31

Cub Cadet WM-22411

3/16 x 1 Klik pin
(Superseded to 753-04070)

$10.99

$

In Stock, Qty 20+

0

32

Cub Cadet WM-1266

3/16 x 1-1/2 Cotter pin
(Superseded to 714-0142)

$6.49

$

Usually ships in 3-6 days

0

33

Cub Cadet WM-12169

3/8 NC x 1-1/4 Hex head cap screw

$

$

Not available

34

Cub Cadet WM-920

3/8 NC x 1-1/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

35

Cub Cadet WM-6698

3/8 NC Hex locknut
(Superseded to 912-3000)

Note: Obtain Locally

$4.49

$

In Stock, Qty 8

0

36

Cub Cadet WM-23547

1/4 NPT Vent plug

$

$

Not available

37

Cub Cadet WM-22086

1/2 x 3/4 x 1/2 Sleeve

$

$

Not available

38

Cub Cadet WM-3379

1/2 NC x 1-1/2 Hex head cap screw GR5

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet WM-33817

1/2 x 1-3/4 Clevis pin

$

$

Not available

40

Cub Cadet WM-3598

1/2 SAE Flat washer

Note: Obtain Locally

$

$

Currently unavailable

41

Cub Cadet WM-13859

1/2 NC Hex jam nut
(Superseded to 912-3048)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet WM-11900

1/2 NC Flanged hex locknut

Note: Obtain Locally

$5.99

$

In Stock, only 1 left!

0

43

Cub Cadet WM-855

1/2 NC Extra-heavy lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.99

$

In Stock, Qty 19

0

44

Cub Cadet WM-62580

9/16 Standard lockwasher

Note: Obtain Locally

$

$

Not available

45

Cub Cadet WM-66846

5/8 x 1.65 Clevis pin

$12.99

$

Usually ships in 3-6 days

0

46

Cub Cadet WM-5561

1/2 x 2-3/4 Clevis pin

$

$

Not available

47

Cub Cadet WM-3632

5/8 Standard SAE flat washer

Note: Obtain Locally

$

$

Currently unavailable

48

Cub Cadet WM-23029

12mm x 1.75P x 25mm Hex head cap screw

$

$

Not available

49

Cub Cadet WM-62582

14 mm x 2.0P x 30mm Hex head cap screw

$

$

Not available

50

Cub Cadet WM-35917

Handle grip

$

$

Not available
