40113 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1968) ENGINE. RECOIL START MODEL 81302 (PART 1) Parts Diagram

Walk-Behind Mower

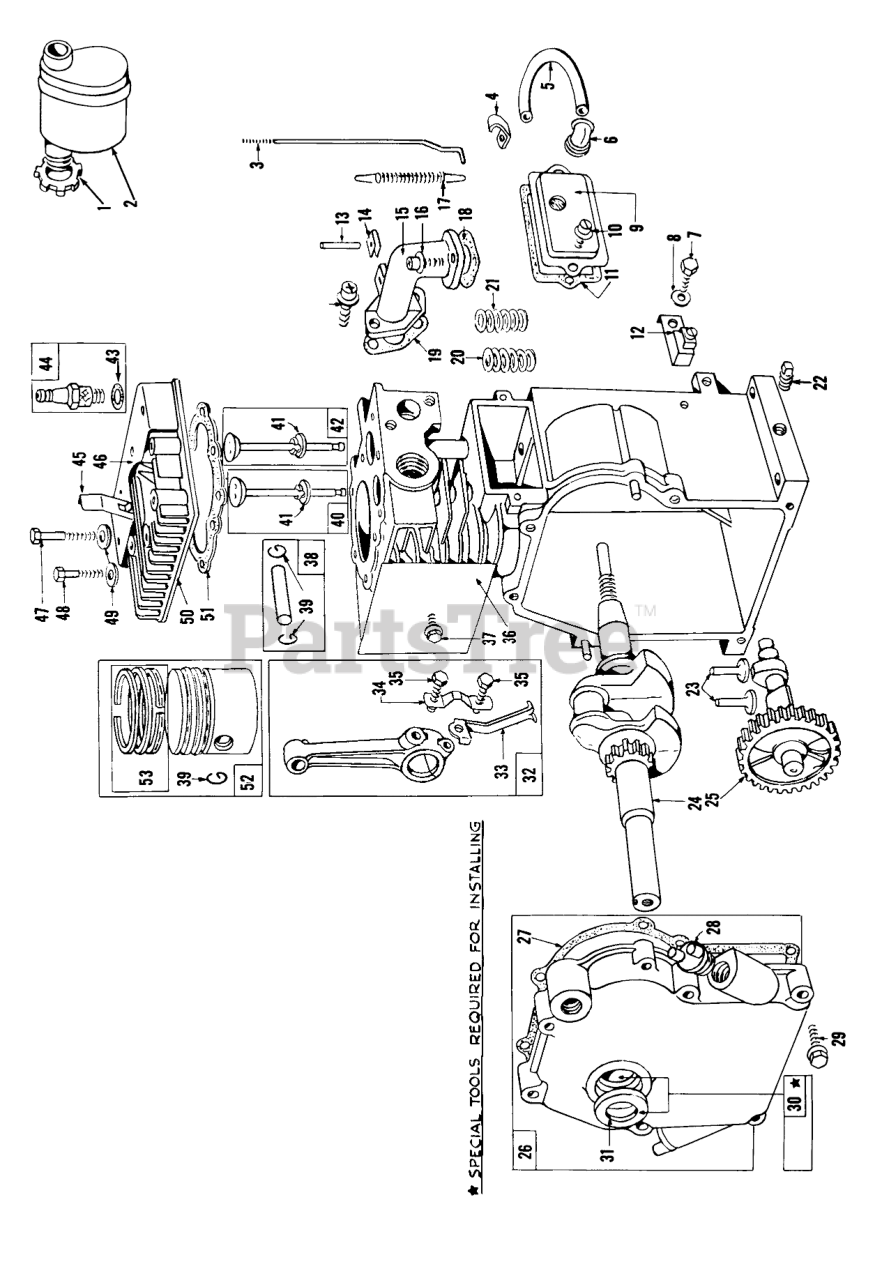

ENGINE. RECOIL START MODEL 81302 (PART 1) Parts Diagram

  • Title

1

Briggs & Stratton 220859

Locknut-Muffier
(Superseded to 691720)

$5.49

$

In Stock, only 1 left!

0

2

Briggs & Stratton 294441

Muffler-Exhaust
(Superseded to 493288)

$36.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 230194

Rod-Control

$

$

Not available

4

Briggs & Stratton 220754

Support, Tube

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 230346

Tube, Breather

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

$4.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 93062

Screw, Sem
(Superseded to 691637)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66432

Washer-Plain
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

In Stock, Qty 6

0

10

Toro 92870

Screw, Breather Mtg. Stem

$

$

Currently unavailable

11

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set, Part No. 294244

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 294502

Bracket, Control Wire Casing

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 230253

Stop, Control Rod

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 220730

Clip-Control Rod

$7.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 210810

61762/95-5929-5 WHE

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93329

Screw, Carburetor and Intake Elbow Mounting Stem
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

17

Briggs & Stratton 26925

Spring-Governor
(Superseded to 691599)

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 68987

Gasket-Carburetor

Note: Included in Gasket Set, Part No. 294244

$5.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set, Part No. 294244

$3.99

$

In Stock, Qty 18

0

20

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, Qty 5

0

21

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, Qty 9

0

22

Briggs & Stratton 91249

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

23

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 260257

Crankshaft
(Superseded to 492880)

$148.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 210453

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294305

Cover Assy.-Crankcase
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 27586

Gasket-Crankcase" thick (Standard)
(Superseded to 692218)

Note: Included in Gasket Set, Part No. 294244

$

$

Not available

Briggs & Stratton 27617

Gasket-Crankcase .005" thick
(Superseded to 270895)

Note: Included in Gasket Set, Part No. 294244

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 27618

Gasket-Crankcase .009" thick
(Superseded to 270896)

Note: Included in Gasket Set, Part No. 294244

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, only 2 left!

0

29

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

31

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

32

Briggs & Stratton 294367

Rod Assy.-Connecting
(Superseded to 699655)

$39.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 220670

Dipper-Conn. Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 220756

Lock, Conn Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 220478

Muffler-Exhaust

$16.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 291925

Pin Assy., Piston, Standard
(Superseded to 298909)

$8.99

$

In Stock, only 4 left!

0

Briggs & Stratton 291926

Pin Assy., Piston, .005" O.S.
(Superseded to 298908)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 296676

Valve Exhaust

$23.99

$

In Stock, only 3 left!

0

41

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 18

0

Briggs & Stratton 23184

Retainer-Valve Spring
(Superseded to 691760)

$7.49

$

In Stock, only 1 left!

0

Briggs & Stratton 23187

1404A SNW W/23755/2
(Superseded to 5023187)

$335.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 296677

Valve Intake

$24.99

$

In Stock, only 4 left!

0

43

Toro 29806

Gasket-Spark Plug

$

$

Currently unavailable

44

Briggs & Stratton 29693

Plug, Spark (with Gasket)
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 220581

Cover-Cylinder Head
(Superseded to 223390)

$7.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 92674

Screw, Cylinder Head
(Superseded to 691441)

$7.49

$

In Stock, Qty 5

0

48

Briggs & Stratton 91386

Screw-Cylinder Head
(Superseded to 691076)

$3.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 22963

Washer
(Superseded to 691261)

$3.99

$

In Stock, only 4 left!

0

50

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

51

Briggs & Stratton 27670

Gasket-Cylinder Hd.
(Superseded to 272167)

Note: Included in Gasket Set, Part No. 294244

$7.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 295455

Piston Assy., Standard

$152.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295456

Piston Assy., .010" O.S.

$58.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295457

Piston Assy., .020" O.S.

$145.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295458

Piston Assy., .030" O.S.

$142.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 295657

Ring Set-Standard Piston Consists of: No. 210796 Ring, Piston, Compression, Top, Std. No. 210797 Ring, Piston, Compression, Ctr, Std. No. 295661 Ring, Oil (w/expander) Std.
(Superseded to 294232)

$39.99

$

In Stock, only 3 left!

0

Briggs & Stratton 295658

Ring Set-.010" O.S. Piston Consists of: No. 210799 Ring, Piston, Compression, Top, .010" O.S. No. 210798 Ring, Piston, Compression, Ctr, .010" O.S. No. 295662 Ring, Oil(w/expander) .010" O.S.

$

$

Not available

Briggs & Stratton 295659

Ring Set-.020" O.S. Piston Consists of: No. 210801 Ring, Piston, Compression, Top, .020" O.S. No. 210800 Ring, Piston, Compression, Center, .020" O.S. No. 295663 Ring, Oil (w/expander) .020" O.S.
(Superseded to 294225)

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295660

Ring Set-. 030" O.S. Piston Consists of: No. 210803 Ring, Piston, Compression, Top, .030" O.S. No. 210802 Ring, Piston, Compression, Ctr, .030" O.S. No. 295664 Ring, Oil (w/expander) .030" O.S.
(Superseded to 294226)

$57.99

$

Usually ships in 2-12 days

0
