40113 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1968) Engine. Recoil Start Model 81302 (part 2) Parts Diagram

Walk-Behind Mower

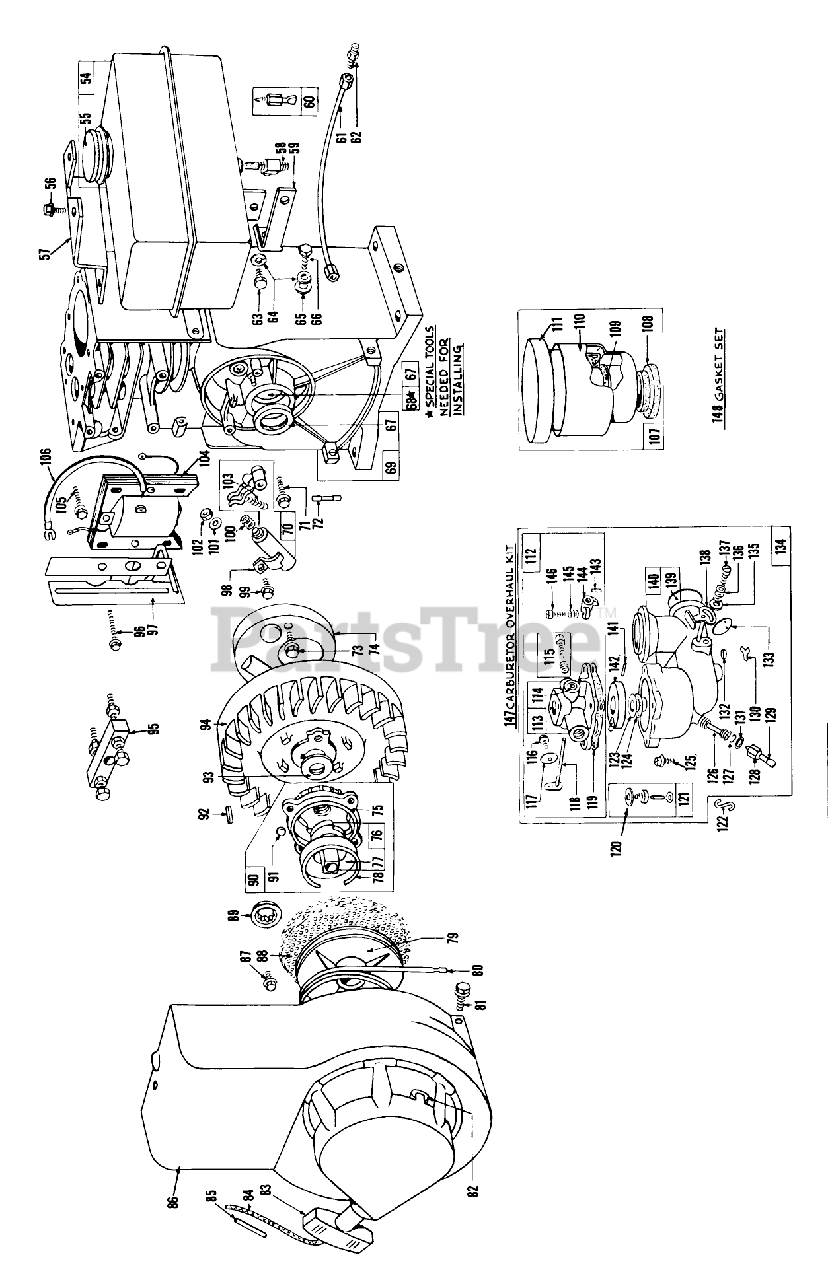

Engine. Recoil Start Model 81302 (part 2) Parts Diagram

  • Title

54

Toro 292945

Tank Assy., Fuel

$

$

Currently unavailable

55

Toro 69221

Cap-Fuel Tank

$

$

Currently unavailable

56

Toro 93083

Screw, Tank Mtg., Sem

$

$

Currently unavailable

57

Toro 220369

Support-Fuel Tank

$

$

Currently unavailable

58

Toro 292797

Outlet, Fuel Tank (includes strainer)

$

$

Currently unavailable

59

Toro 220195

Bracket-Fuel Tank

$

$

Currently unavailable

60

Toro 293934

Valve-Shut Off

$

$

Currently unavailable

61

Toro 293672

Pipe, Fuel

$

$

Currently unavailable

62

Toro 92427

Connector, Fuel Pipe

$

$

Currently unavailable

63

Toro 92666

Screw, Cap, Hex. Hd.,

$

$

Currently unavailable

64

Toro 90832

Washer-Lock

$

$

Currently unavailable

65

Toro 62199

Washer-Plain

$

$

Currently unavailable

66

Toro 91419

Screw, Cap, Hex. Hd.,

$

$

Currently unavailable

67

Toro 89660

Seal-Oil

$

$

Currently unavailable

68

Toro 293708

Bushing

$

$

Currently unavailable

69

Toro 295460

Cylinder Assy.

$

$

Currently unavailable

70

Toro 294628

Set

$

$

Currently unavailable

71

Toro 93117

Screw, Armature Mtg. Sem

$

$

Currently unavailable

72

Toro 65704

Plunger

$

$

Currently unavailable

73

Toro 93014

Screw

$

$

Currently unavailable

74

Toro 220366

Cover Breaker Pt. Cond.

$

$

Currently unavailable

75

Toro 210400

Housing, Starter Clutch
(Superseded to 742995)

$

$

Not available

76

Toro 296597

Ratchet, Rewind Starter

$

$

Currently unavailable

77

Toro 221301

Washer, Clutch Retainer (used with sq. shank ratchet)

$

$

Not available

Toro 220575

Washer, clutch retainer (used with 7 point ratchet)

$

$

Not available

78

Toro 26032

TUBE ASSY - BRAKE

$

$

Currently unavailable

79

Toro 294088

Pulley, Rewind Starter

$

$

Currently unavailable

80

Toro 294303

Spring-Rewind

$

$

Currently unavailable

81

Toro 93158

Screw

$

$

Currently unavailable

82

Toro 66528

Bumper, Starter Pulley

$

$

Currently unavailable

83

Toro 66728

See Supercession: 742562
(Superseded to 742562)

$

$

Not available

84

Toro 66384

Rope, Starter,

$

$

Currently unavailable

85

Toro 230228

Pin-Starter Grip

$

$

Currently unavailable

86

Toro 94260

Housing, Blower

$

$

Currently unavailable

87

Toro 93042

Screw

$

$

Currently unavailable

88

Toro 20648

Screen, Starter Pulley

$

$

Currently unavailable

89

Toro 66688

Washer, Ratchet Sealing

$

$

Currently unavailable

90

Toro 96468

Clutch Assy., Rewind Starter

$

$

Currently unavailable

91

Toro 63770

Ball

$

$

Currently unavailable

92

Toro 61760

Key Flywheel

$

$

Currently unavailable

93

Toro 20865

Washer, Sprg. (use to lock rewind starter clutch)

$

$

Currently unavailable

94

Toro 95936

Flywheel Assy.

$

$

Currently unavailable

95

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

96

Toro 92984

Screw, Armature Mtg. Sem

$

$

Currently unavailable

97

Toro 94617

Blade, Governor

$

$

Currently unavailable

98

Toro 220477

Camp-Condenser

$

$

Currently unavailable

99

Toro 93042

Screw

$

$

Currently unavailable

100

Toro 260374

Spring Connector

$

$

Currently unavailable

101

Toro 92813

Washer-Lock

$

$

Currently unavailable

102

Toro 92987

Nut

$

$

Currently unavailable

103

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

104

Toro 291617

Armature, Magneto

$

$

Currently unavailable

105

Toro 93117

Screw, Armature Mtg. Sem

$

$

Currently unavailable

106

Toro 292149

Cable, Ignition

$

$

Currently unavailable

107

Toro 294873

Cleaner Assy., Air (with mtg. stud)

$

$

Currently unavailable

108

Toro 27666

Body-Breather
(Superseded to 704563)

Note: Included in Gasket Set, Part No. 294244

$179.99

$

Usually ships in 3-6 days

0

109

Toro 27795

Gasket, Air Cleaner

$

$

Currently unavailable

110

Toro 293991

Bowl, Air Cleaner

$

$

Currently unavailable

111

Toro 294864

Cover and Filter, Air Cleaner (with Mtg. stud)

$

$

Currently unavailable

112

Toro 295608

Housing Assy., Throttle

$

$

Currently unavailable

113

Toro 99634

Body, Upper Carburetor

$

$

Currently unavailable

114

Toro 23230

Bushing-Throttle Shaft

$

$

Currently unavailable

115

Toro 292681

Valve Assembly

$

$

Currently unavailable

116

Toro 93038

Screw, Throttle Valve Mtg. Sem

$

$

Currently unavailable

117

Toro 22036

Valve, Throttle

$

$

Currently unavailable

118

Toro 295436

Shaft/Lever-Throttle

$

$

Currently unavailable

119

Toro 27917

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

120

Toro 68877

Gasket, Fuel Inlet Valve Seat

$

$

Currently unavailable

121

Toro 293478

Valve Seat-Fuel Inlet

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

122

Toro 26235

Link-Governor

$

$

Currently unavailable

123

Toro 210811

Venturi-Carburetor

$

$

Currently unavailable

124

Toro 27840

Gasket-Venturi

$

$

Currently unavailable

125

Toro 92955

Screw, Throttle Housing

$

$

Currently unavailable

126

Toro 23222

Nozzle, Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

127

Toro 68887

Packing, Needle Valve

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

128

Toro 23227

Nut, Needle Valve Packing

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

129

Toro 230005

Valve, Needle
(Superseded to 153804)

$

$

Not available

130

Toro 220521

Retainer, Carb. Drain Filter

$

$

Not available

131

Toro 22032

Washer, Needle Valve Pkg.

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

132

Toro 27590

Filter-Carburetor Drain

$

$

Currently unavailable

133

Toro 220897

Valve-Choke

$

$

Currently unavailable

134

Toro 295607

Carburetor Assy.

$

$

Currently unavailable

135

Toro 220899

Washer-Choke Lever

$

$

Currently unavailable

136

Toro 26229

Spring-Choke Lever
(Superseded to 704513)

$

$

Not available

137

Toro 23270

432/434/13933A GILS

$3.23

$

Usually ships in 3-6 days

0

138

Toro 294874

Shaft and Lever Assy.

$

$

Currently unavailable

139

Toro 220352

Plug-Welch

$

$

Currently unavailable

140

Toro 295617

Body Assy., Carburetor

$

$

Currently unavailable

141

Toro 23114

Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

142

Toro 293477

Float-Carburetor

$

$

Currently unavailable

143

Toro 93043

Pin

$

$

Currently unavailable

144

Toro 61967

Stop-Throttle

$

$

Currently unavailable

145

Toro 26157

Spring

Note: Included in Carburetor Overhaul Kit-Part No. 291691

$

$

Currently unavailable

146

Toro 91920

Screw

$

$

Currently unavailable

147

Toro 291691

Carburetor Overhaul Kit

$

$

Currently unavailable
