40113 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1968) POWER HANDLE Parts Diagram

Walk-Behind Mower

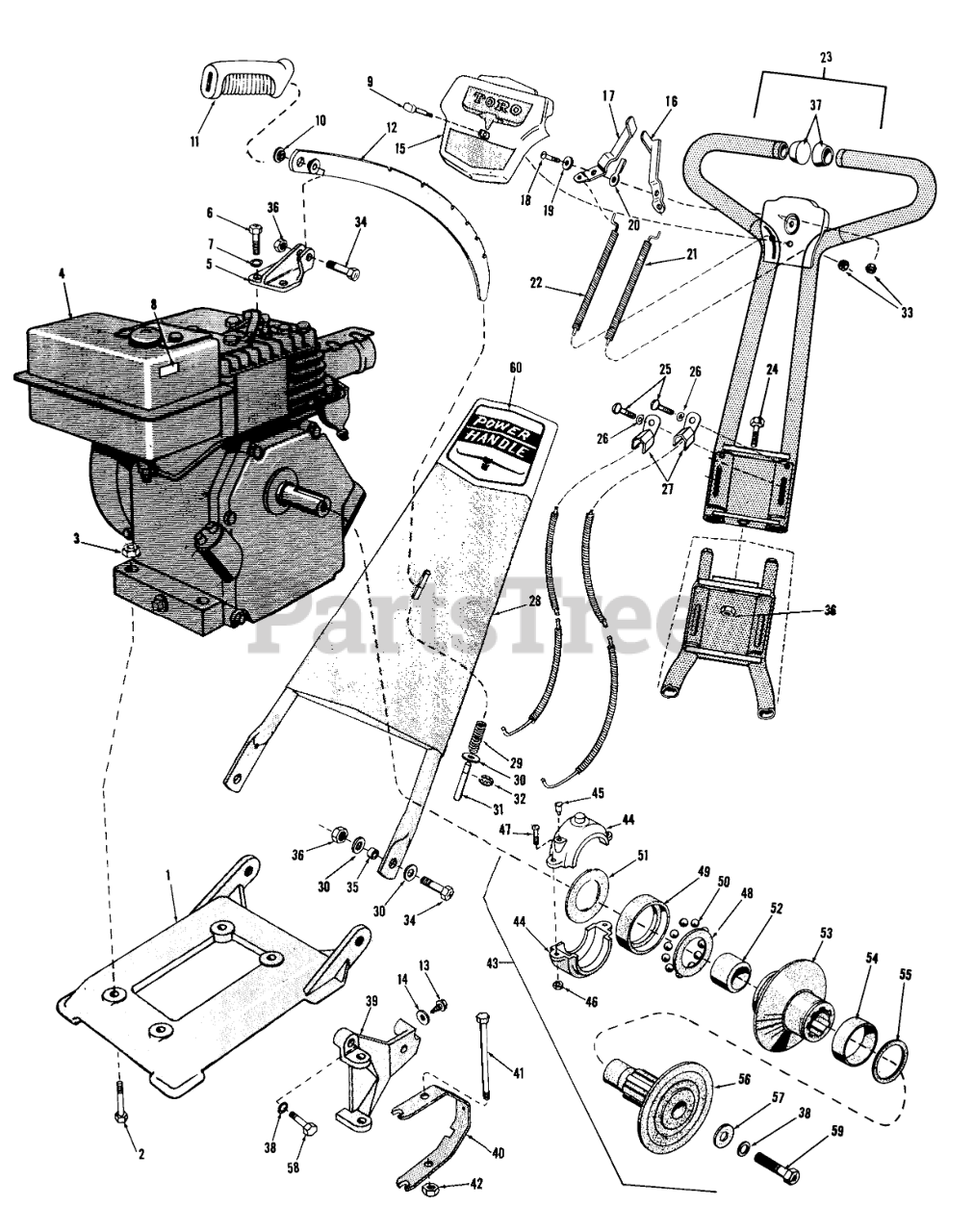

POWER HANDLE Parts Diagram

  • Title

1

Toro 3-1688

Engine Base

$

$

Currently unavailable

2

Toro 3210-10

SCREW-HH

$

$

Currently unavailable

3

Toro 32146-4

NUT-LOCK NI

$

$

Not available

4

Toro 221-88

Engine

$

$

Currently unavailable

5

Toro 5-0770

Bracket, Handle

$

$

Not available

6

Toro 322-24

Screw

$

$

Currently unavailable

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3-1843

Decal

$

$

Currently unavailable

9

Toro 3-3954

Screw

$

$

Currently unavailable

10

Toro 3-0616

GROMMET

$

$

Currently unavailable

11

Toro 5-0768

Grip Handle

$

$

Not available

12

Toro 5-0766

Bar Adjustment

$

$

Currently unavailable

13

Toro 32104-60

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3-3953

Escutcheon Plate

$

$

Currently unavailable

16

Toro 3-1685

Clutch Lever

$

$

Currently unavailable

17

Toro 3-1684

Throttle Lever

$

$

Not available

18

Toro 32122-23

Screw

$

$

Currently unavailable

19

Toro 5-0774

WASHER CONTROL PIVOT
(Superseded to 3256-61)

$2.99

$

In Stock, only 3 left!

0

20

Toro 5-0775

Washer

$

$

Not available

21

Toro 3-1677

Throttle Control Assy.

$

$

Not available

22

Toro 3-1680

CLUTCH CONTROL ASM

$

$

Not available

23

Toro 1-9129

Upper Handle Assy.

$

$

Currently unavailable

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3251-1

SCREW-PPH

$10.99

$

In Stock, Qty 6

0

26

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

27

Toro 3-4006

Clamp

$

$

Currently unavailable

28

Toro 1-9139

Lower Handle Assy.

$

$

Currently unavailable

29

Toro 5-0776

SPRING

$

$

Currently unavailable

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 5-0765

PIN

$

$

Currently unavailable

32

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 12

0

33

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

34

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 4-4600

Grommet

$

$

Currently unavailable

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 5-0747

Button Plug

$

$

Not available

38

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 2-3550

Bracket, Mounting

$

$

Currently unavailable

40

Toro 2-3540

Shift Fork

$

$

Not available

41

Toro 3210-13

SCREW-HH

$

$

Currently unavailable

42

Toro 32146-4

NUT-LOCK NI

$

$

Not available

43

Toro 1-7449

Clutch Assy.

$

$

Not available

44

Toro 1-7279

Ring, Slip Kit,

$

$

Currently unavailable

45

Toro 301-1

OILER

$

$

Currently unavailable

46

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

47

Toro 3250-4

SCREW

$

$

Not available

48

Toro 5-0771

Check Washer

$

$

Not available

49

Toro 5-0777

Ball Race

$

$

Not available

50

Toro 255-1

Ball

$

$

Not available

51

Toro 5-0773

Washer-Thrust

$

$

Currently unavailable

52

Toro 5-0764

Inner Ball Race

$

$

Not available

53

Toro 1-3989

Sliding Flange

$

$

Currently unavailable

54

Toro 5-0772

IDLER BUSHING

$

$

Not available

55

Toro 32120-30

1-1/2X048 EX MED RING

$

$

Not available

56

Toro 3-0195

Body, Clutch

$

$

Not available

57

Toro 4-8620

Washer

$

$

Not available

58

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

59

Toro 329-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

60

Toro 5-0763

Decal

$

$

Currently unavailable
