40182 (1132-G) - Gravely 32" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive FRAME ASSEMBLY Parts Diagram

32" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

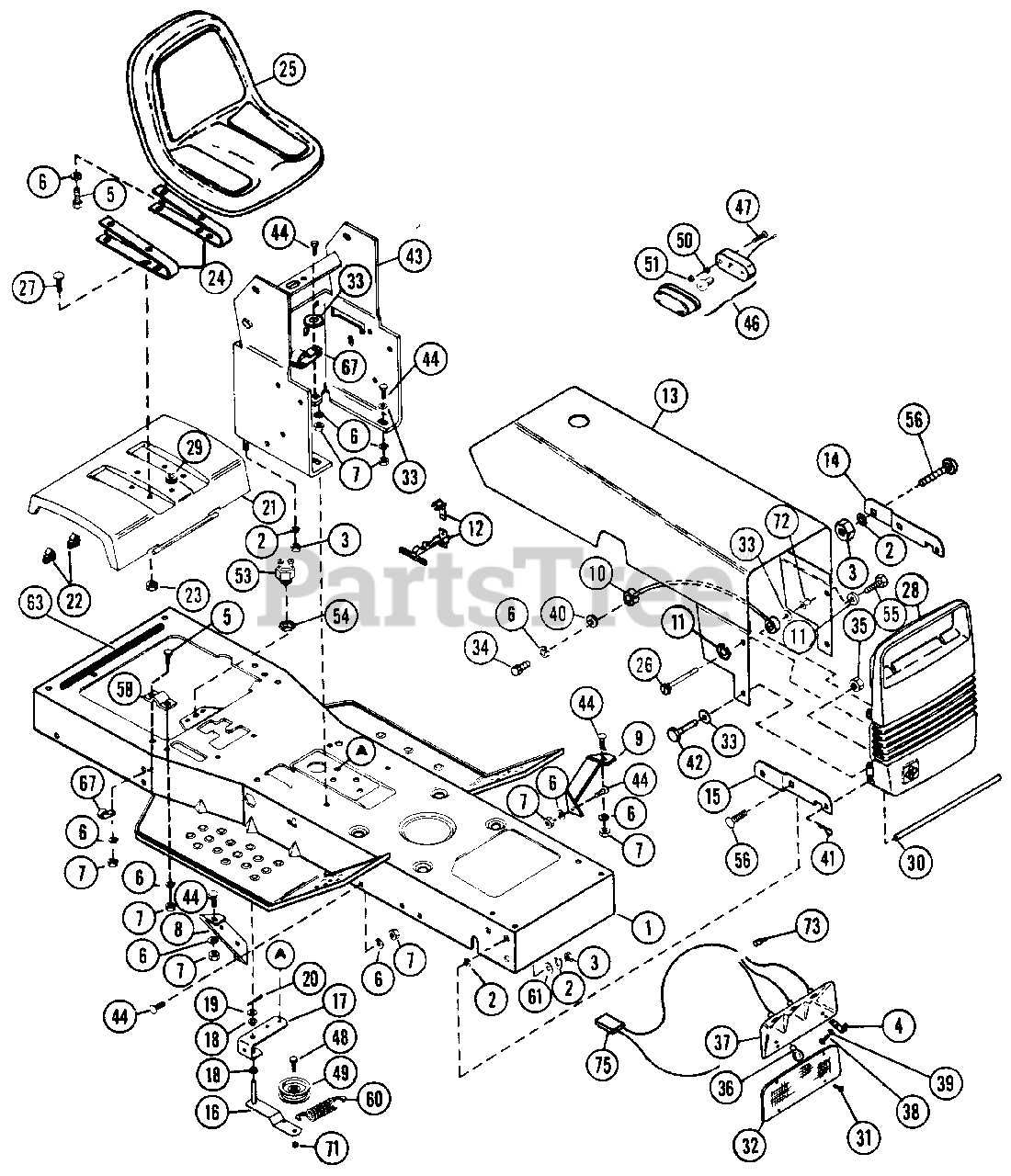

FRAME ASSEMBLY Parts Diagram

  • Title

1

Gravely 036167

FRAME W/DECALS

$

$

Not available

2

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 011030

CLIP,LIGHT MTG.
(Superseded to 20063500)

$

$

Not available

5

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 131099

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

7

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

8

Gravely 036469

STRUT RIGHT FOOT BOARD
(Superseded to 03500600)

$

$

Not available

9

Gravely 036470

STRUT LEFT FOOT BOARD
(Superseded to 03500700)

$

$

Not available

10

Gravely 040118

G-HOOD LANYARD
(Superseded to 03554000)

$

$

Not available

11

Gravely 446179

WSHR,FL.250X.500.049
(Superseded to 21071000)

$

$

Not available

12

Gravely 035294

LATCH,FLEXIBLE
(Superseded to 08704700)

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 035300

WLDMT,HOOD
(Superseded to 21074700)

$

$

Not available

14

Gravely 035296

BRKT,HOOD PIVOT L.H.
(Superseded to 21074500)

Note: (L.H.)

$

$

Not available

15

Gravely 035297

BRKT,HOOD PIVOT R.H.
(Superseded to 21074600)

Note: (R.H.)

$

$

Not available

16

Gravely 036473

IDLER ARM
(Superseded to 03504300)

$

$

Not available

17

Gravely 036474

IDLER PIVOT
(Superseded to 03504400)

$

$

Not available

18

Gravely 036241

BSHG-FLG .372X.500X.312X.625NY
(Superseded to 05503600)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 137185

PIN-CTR .12X1.00 EXTPRSQCT YZ
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

21

Gravely 036478

REAR DECK

$

$

Not available

22

Gravely 036479

BUMPER
(Superseded to 07505400)

$

$

Not available

23

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 035406

SPR,SEAT
(Superseded to 20624000)

$

$

Not available

25

Gravely 038940

SEAT KIT W/ SWITCH
(Superseded to 59100200)

$

$

Not available

26

Gravely 180033

BLT-HEX .25-20X1.38
(Superseded to 05934100)

$

$

Not available

27

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 033780

CSTG,GRILLE
(Superseded to 21220800)

$

$

Not available

29

Gravely 036485

GROMMET, .31 ID
(Superseded to 07502600)

$

$

Not available

30

Gravely 035295

G-ROD, HOOD PIVOT
(Superseded to 03540300)

$

$

Not available

31

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 011289

PNL,FRONT LIGHT
(Superseded to 20070600)

$110.99

$

Usually ships in 4-12 days

0

33

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 180078

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

35

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 454646

LAMP,NO. 1073
(Superseded to 21072400)

$

$

Not available

37

Gravely 011334

ASM,LAMP REFLECTOR
(Superseded to 20072600)

$

$

Not available

38

Gravely 159947

SCR-MCH 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 120385

WSHR-FL-STL .188X.438X.049 PL
(Superseded to 06409200)

$

$

Not available

40

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available

41

Gravely 036185

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

43

Gravely 036498

DASH BASE WITH DECALS
(Superseded to 53507100)

$

$

Not available

44

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

46

Gravely 036123

TAIL LIGHT ASSY (2 PIECES)
(Superseded to 53128400)

$124.99

$

Usually ships in 4-12 days

0

Gravely 036784

TAIL LIGHT LENS
(Superseded to 03137500)

$

$

Not available

BULB, STD. GE NO. 1895

$

$

Not available

47

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

48

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

49

Gravely 035851

IDLER-FLAT 2.75 X .38 DAYCO
(Superseded to 07311100)

$40.99

$

Usually ships in 4-12 days

0

50

Gravely 120217

WSHR,LOCK NO 10 SP
(Superseded to 21049900)

$

$

Not available

51

Gravely 036506

NUT-HEX 10-24 PL
(Superseded to 06505500)

$

$

Not available

53

Gravely 036110

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$46.99

$

In Stock, only 2 left!

0

54

Gravely 036509

NUT- .562-18
(Superseded to 06509600)

$

$

Not available

55

Gravely 180021

BLT-HEX .25-20X.875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

56

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

58

Gravely 036511

BRACE
(Superseded to 02912300)

$

$

Not available

60

Gravely 036512

SG-TENS .080X.470X4.88 WLD 30
(Superseded to 08305800)

$15.99

$

Usually ships in 4-12 days

0

61

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

63

Gravely 036515

FOAM TAPE
(Superseded to 03076600)

$

$

Not available

67

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

71

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

72

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

73

Gravely 011763

NUT-CNCTR
(Superseded to 07016700)

$

$

Not available

75

Gravely 036788

G-HEADLIGHT HARNESS
(Superseded to 03543300)

$

$

Not available

Gravely 038056

DECAL,AMERICA
(Superseded to 20644900)

$

$

Not available

Gravely 035323

G-DECAL 1138
(Superseded to 03540000)

$

$

Not available

Gravely 035324

G-DECAL, SIDE STRIP LH
(Superseded to 03540100)

$

$

Not available

Gravely 039008

G-DECAL, SIDE STRIPE RH
(Superseded to 03540200)

$

$

Not available

Gravely 024588

DECAL,GRAVELY LOGO
(Superseded to 05201500)

$23.99

$

Usually ships in 4-12 days

0

Gravely 024608

G-DECAL, GRAVLEY LOGO
(Superseded to 02460800)

$29.99

$

Usually ships in 4-12 days

0

Gravely 035318

G-DECAL, INSTRUCTION & SHIFT
(Superseded to 03542900)

$

$

Not available

Gravely 035317

DECAL, CONSOLE

$

$

Not available
