402 (193-402-100) - Cub Cadet Blade Adapting Package (1983) Blade Adapting Package Parts Diagram

Blade Adapting Package

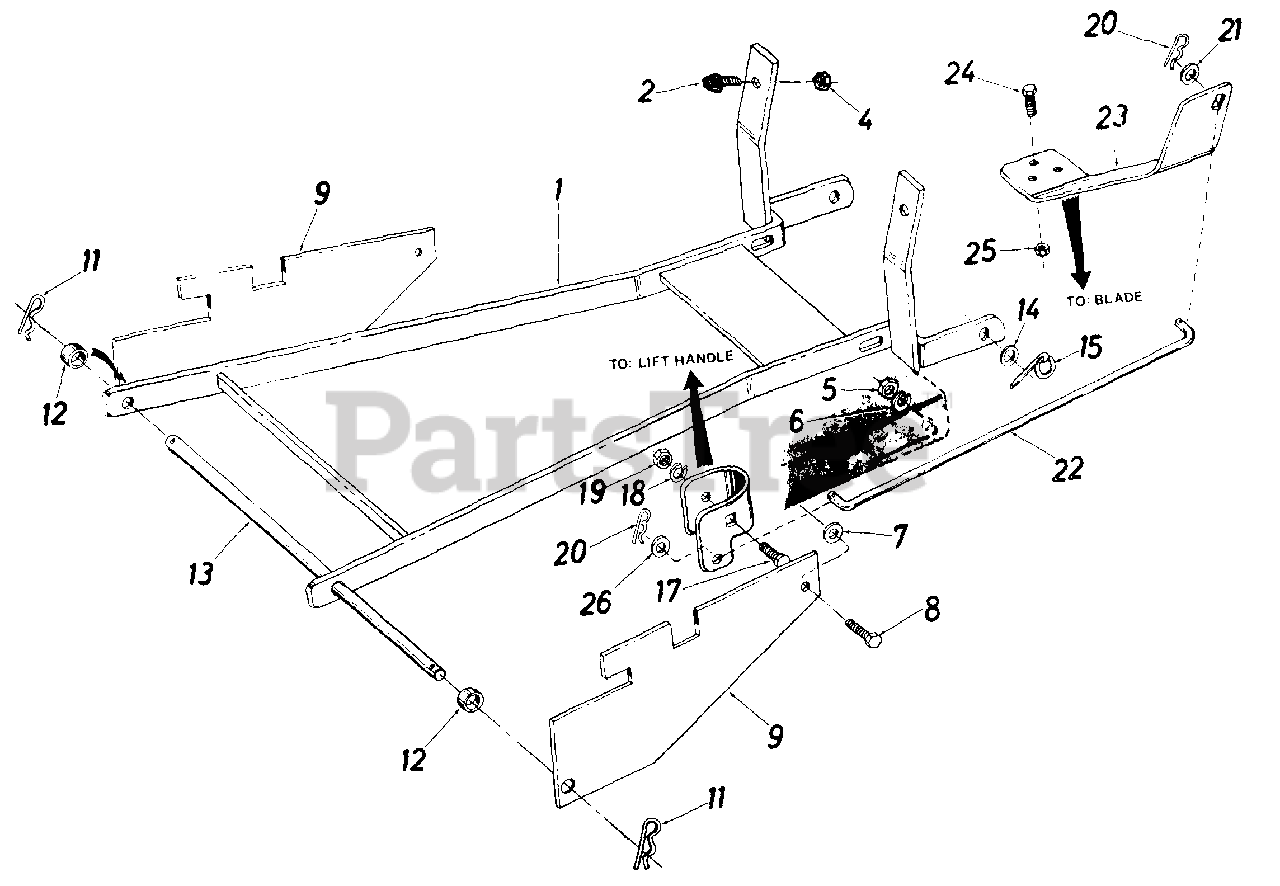

Blade Adapting Package Parts Diagram

  • Title

1

Cub Cadet 703-0695

Blade Sub Frame Ass'y.

$

$

Currently unavailable

2

Cub Cadet 735-3016

Rubber Bumper

$

$

Not available

4

Cub Cadet 712-3025

Hex Jam Nut 5/16-24 Grade 5

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3000

Hex Cent. L-Nut 3/8-16 Grade 5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0169

L-Wash 3/8

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0227

Fl-Wash. .390 I.D. x 1.50 O.D. x .134

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3005

Hex Scr. 3/8-16 x 1-1/4 Lg. Grade 5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-0697

Side Plate

$

$

Currently unavailable

11

Cub Cadet 714-0117

Int. Cotter Pin

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet 1648-087

Spacer .88 I.D. x 1-1/8 O.D. x .69 Lg.

$

$

Currently unavailable

13

Cub Cadet 738-3037

Shaft

$

$

Currently unavailable

14

Cub Cadet 736-0316

Fl-Wash. .783 I.D. x 1.59 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-3008

Klik Pin
(Superseded to 914-3008)

$

$

Not available

?16

Cub Cadet 703-0682

Lift Arm Bracket

$

$

Currently unavailable

17

Cub Cadet 710-3106

Carriage Bolt 3/8-16 x 1.75" Lg.
(Superseded to 710-0560)

$6.49

$

In Stock, Qty 19

0

18

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0375

Hex Cent. L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

20

Cub Cadet 714-3003

Internal Cotter Pin
(Superseded to 914-3003)

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-3064

Fl.-Wash. .656 I.D. x 1.312 O.D. x .070
(Superseded to 936-3064)

$

$

Not available

22

Cub Cadet 747-3094

Lift Rod

$

$

Currently unavailable

23

Cub Cadet 703-0681

Lift Arm

$

$

Currently unavailable

24

Cub Cadet 710-3032

Hex Bolt 1/2-13 x 1.25" Lg. Grade 5

$6.49

$

Usually ships in 3-6 days

0

25

UNKNOWN

$

$

Not available

26

Cub Cadet 712-3036

Hex Nut 1/2-13 Thd.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-3068

Fl.-Wash. .531 I.D. x .875 O.D. x .054

$6.49

$

In Stock, only 2 left!

0
