40210 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler (SN: 000101 & Above) NUMBER TWO SHAFT - REVERSE CLUTCH Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler

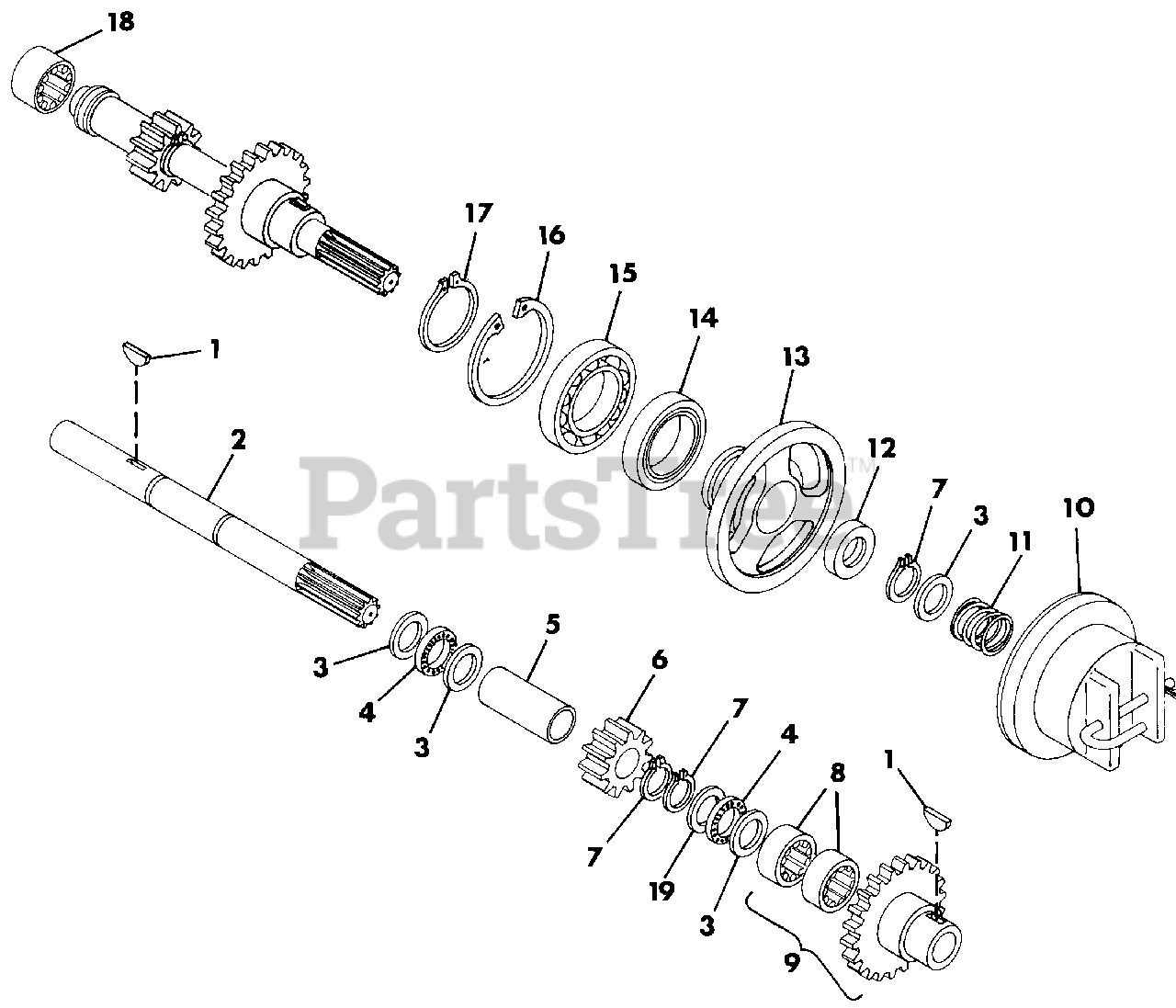

NUMBER TWO SHAFT - REVERSE CLUTCH Parts Diagram

  • Title

1

Gravely 431787

KEY-WDRF .19X.63 HRD #61
(Superseded to 06609300)

$3.49

$

In Stock, only 2 left!

0

2

Gravely 034730

SHFT,SPLINED REV CLUTCH
(Superseded to 08736400)

$

$

Not available

3

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

4

Gravely 006741

BRG-N THRST .754X1.24X.078
(Superseded to 05410400)

$13.99

$

In Stock, Qty 7

0

5

Gravely 035489

BUSH.,S.760X1.00X1.90 ST
(Superseded to 08911900)

$

$

Not available

6

Gravely 018003

GR,10DP 16 TEETH X.750
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 011135

SNAP RING, .750 X .042 EXT
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 017949

BRG-ROLLER .75X1.0X.50
(Superseded to 05420400)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 017947

ASM,REV GR&BRG
(Superseded to 08703000)

$

$

Not available

10

NUMBER 11 - FWD-REV CLUTCH ASM.

$

$

Not available

11

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

12

Gravely 018035

SEAL .750X1.625X.250
(Superseded to 05614600)

$13.99

$

In Stock, only 2 left!

0

13

Gravely 018024

HUB,CLUTCH
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

14

Gravely 017917

SEAL 2.250X3.002X.375
(Superseded to 05614000)

$22.99

$

In Stock, only 2 left!

0

15

Gravely 017915

BRG-BALL 1.97X3.14X.63
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 018872

RG-RTNG-INT 3.520X.109
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

17

Gravely 017919

RG-RTNG-EXT 1.819X.062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 017913

BRG-NEEDLE .750X1.0X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

19

Gravely 006742

WSHR-THRST .752X1.240X.062 HDN
(Superseded to 06431900)

$10.99

$

Usually ships in 4-12 days

0
