4025A7-0224-E1 - Briggs & Stratton Vertical Engine

Vertical Engine

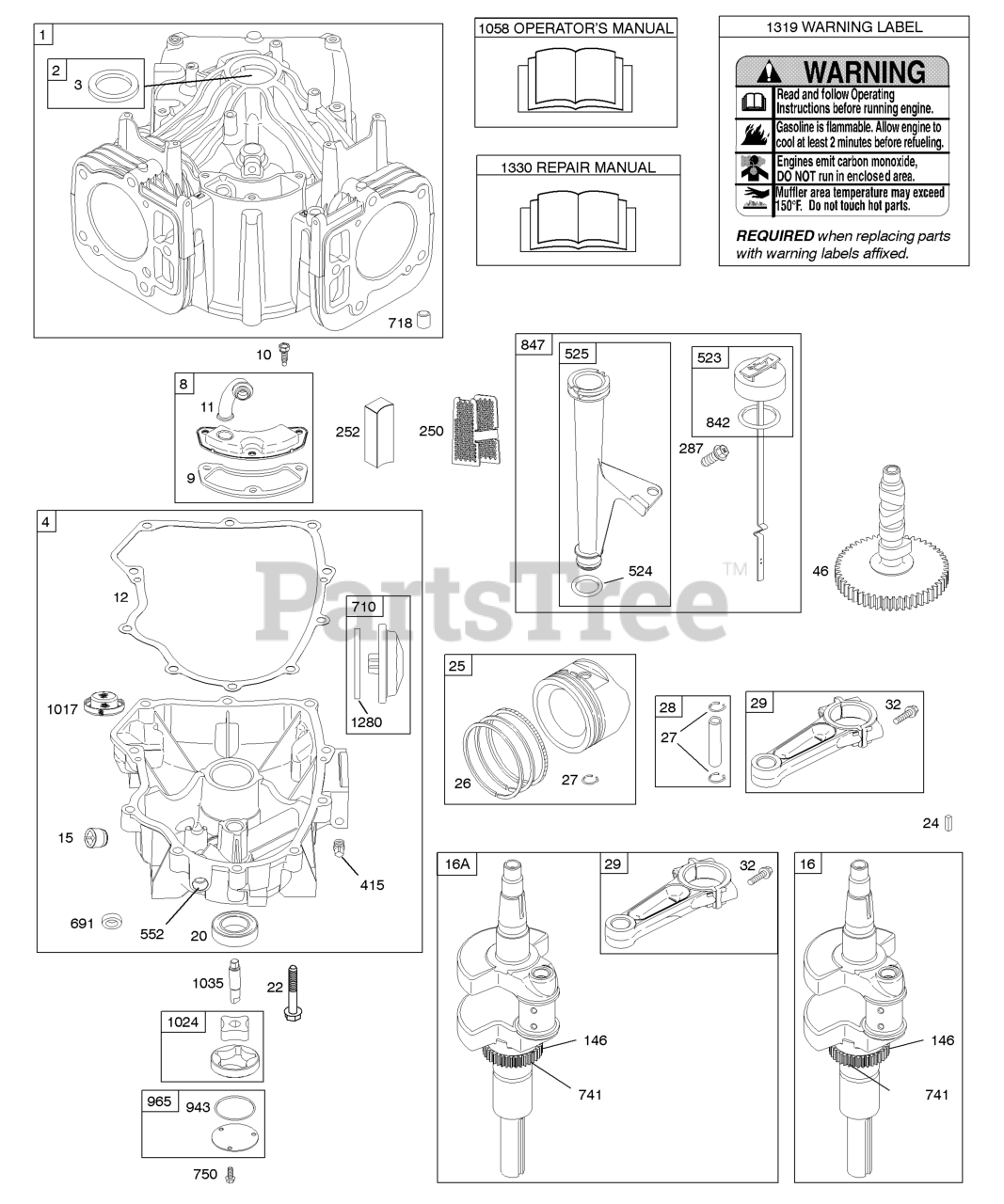

4025A7-0224-E1 - Briggs & Stratton Vertical Engine > Parts Diagrams (7) > Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Piston, Rings, Connecting Rod

  • Title
699751

1

Cylinder Assembly

Part# 699751 (Superseded to 594969)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $279.07

499585

2

Kit-Bushing/Seal

Part# 499585 (Superseded to 797673)

Note: (Magneto Side)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $15.58

391086S

3

SEAL, Oil

Part# 391086S

Note: (Magneto Side)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.42

792185

8

Breather Assembly

Part# 792185

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $14.88

690937

9

Gasket-Breather

Part# 690937

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.24

691108

10

SCREW

Part# 691108

Note: (Breather Assembly)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.40

792184

11

Tube-Breather

Part# 792184

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $12.31

697227

12

Gasket-Crankcase

Part# 697227 (Superseded to 594195)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $31.03

691680

15

PLUG, Oil Drain

Part# 691680

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

699700

16

Crankshaft

Part# 699700 (Superseded to 796237)

Note: Used After Code Date 04010800

OEM Warranty Repair Part for Briggs & Stratton

Not available

699701

16A

Crankshaft

Part# 699701

Note: Used Before Code Date 04010900

OEM Warranty Repair Part for Briggs & Stratton

Not available

690947

20

Seal-Oil

Part# 690947 (Superseded to 795387)

Note: (PTO Side)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $9.77

694966

22

SCREW

Part# 694966

Note: (Crankcase Cover/Sump)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.50

222698S

24

KEY, Flywheel

Part# 222698S

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.24

499588

25

Piston Assembly

Part# 499588 (Superseded to 793647)

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $109.14

499590

25

Piston Assembly

Part# 499590 (Superseded to 793648)

Note: (.020 Oversize)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $105.41

499606

26

Ring Set

Part# 499606

Note: (.020 Oversize)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $49.58

499604

26

Ring Set

Part# 499604

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $49.58

690975

27

LOCK, Piston Pin

Part# 690975

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.09

690229

28

Pin-Piston

Part# 690229

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $12.43

29

Rod-Connecting

Part#

Note: (For Replacement Connecting Rod, See Reference 16A) Used Before Code Date 04010900

Not available

699699

29

Rod-Connecting

Part# 699699 (Superseded to 796209)

Note: (Standard) Used After Code Date 04010800

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $49.58

690976

32

SCREW

Part# 690976

Note: (Connecting Rod)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.15

790562

46

CAMSHAFT

Part# 790562

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $93.04

690979

146

KEY, Woodruff

Part# 690979

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.46

690957

250

Retainer-Breather

Part# 690957

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.73

690956

252

Collector-Oil

Part# 690956 (Superseded to 794389)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.24

691108

287

SCREW

Part# 691108

Note: (Dipstick Tube)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.40

690283

415

Plug

Part# 690283 (Superseded to 794903)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

691036

523

Dipstick

Part# 691036 (Superseded to 594528)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $15.28

691032

524

SEAL, O-Ring

Part# 691032

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

691037

525

TUBE, Dipstick

Part# 691037

OEM Warranty Repair Part for Briggs & Stratton

Not available

690552

552

Bushing-Governor Crank

Part# 690552

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.89

690657

691

Seal-Governor Shaft

Part# 690657 (Superseded to 790574)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.38

697474

710

Cover-Oil Filter

Part# 697474

OEM Warranty Repair Part for Briggs & Stratton

Not available

690959

718

PIN, Locating

Part# 690959

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.38

690980

741

GEAR, Timing

Part# 690980

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $11.55

696999

750

Screw

Part# 696999

Note: (Oil Pump Cover)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $16.68

691031

842

SEAL, O-Ring

Part# 691031

Note: (Dipstick Tube)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.47

499602

847

Dipstick/Tube Assembly

Part# 499602 (Superseded to 594609)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.22

690589

943

SEAL, O-Ring

Part# 690589

Note: (Oil Pump Cover)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.24

499613

965

COVER, Oil Pump

Part# 499613

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $9.92

690770

1017

Screen-Oil Pump

Part# 690770

OEM Warranty Repair Part for Briggs & Stratton

Not available

499054

1024

Pump-Oil

Part# 499054 (Superseded to 794644)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $29.75

691042

1035

Shaft-Pump

Part# 691042 (Superseded to 794644)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $29.75

276245

1058

Operator's Manual

Part# 276245 (Superseded to 276352)

OEM Warranty Repair Part for Briggs & Stratton

Not available

697475

1280

Seal-O Ring

Part# 697475

Note: (Oil Filter Cover)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.96

794467

1319

LABEL, Warning

Part# 794467

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $14.88

273521

1330

Repair Manual

Part# 273521

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $26.27
