40319x51C - Murray 40" Lawn Tractor (2001) Engine And Control Assembly Parts Diagram

40" Lawn Tractor

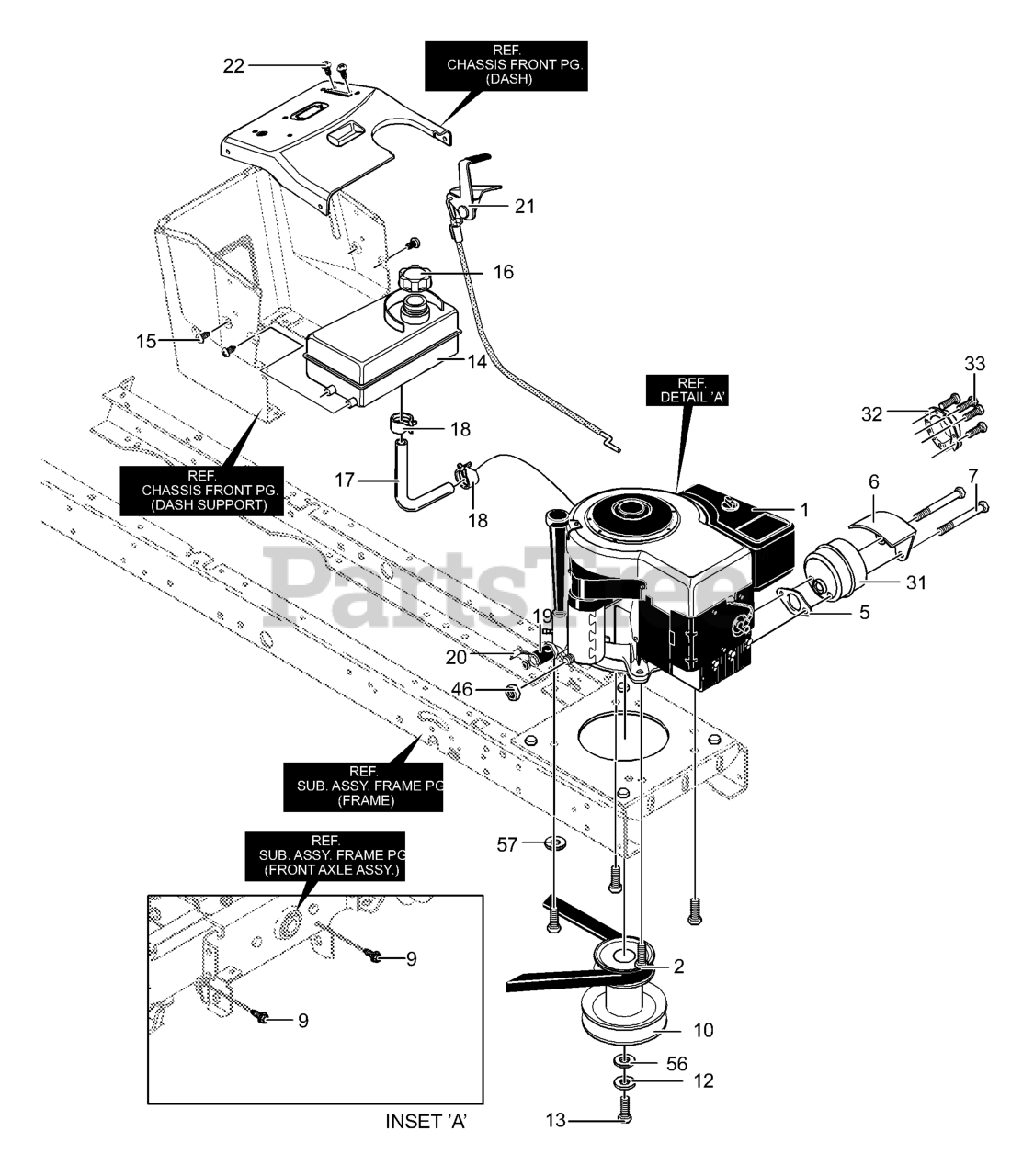

Engine And Control Assembly Parts Diagram

  • Title

1

12.5HP Engine

Note: (See Engine Manual)

$

$

Not available

--

Murray 094951

Clip, Speed

$

$

Currently unavailable

2

Murray 0025X7MA

Engine Bolt 3/8x1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

5

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

6

Murray 091277MA

Shield, Heat

$6.99

$

Usually ships in 2-12 days

0

7

Murray 712065

Screw, 5/16-18 x 4.125

$

$

Not available

9

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

10

Murray 690456MA

Stack Pulley

$205.99

$

Usually ships in 2-12 days

0

12

Murray 120383

Washer, Regsptlk

$

$

Not available

13

Murray 01X169

Bolt, 7/16-20x1.75LG

$3.49

$

Usually ships in 2-12 days

0

14

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$83.99

$

In Stock, only 4 left!

0

15

Murray 711681

Screw, 15TP

$1.99

$

Usually ships in 2-12 days

0

16

Murray 092317MA

Fuel Cap

$11.99

$

In Stock, only 2 left!

0

17

Murray 50118

Tubing 14.50 Inches

$

$

Currently unavailable

18

Murray 336890

Clamp, Fuel

$

$

Currently unavailable

19

Murray 325547MA

Oil Drain Valve Assembly

$

$

Not available

20

Murray 327422

Cap, Oil Drain Valve

$

$

Not available

21

Murray 94361

Throttle Control

$

$

Not available

22

Murray 711637

Screw, #8-16x.38

$

$

Currently unavailable

31

Murray 091271

Muffler

$53.99

$

In Stock, only 2 left!

0

32

Murray 23740

Deflector, Exhaust

$

$

Currently unavailable

33

Murray 712070

Screw, #8-32x.38

$11.99

$

Usually ships in 2-12 days

0

46

Murray 711601

Nut, 1/4-20 Reghexjam

$1.99

$

Usually ships in 2-12 days

0

56

Murray 17X170MA

Washer, Flat

$

$

Not available

57

Murray 711668

Washer, Exlk

$

$

Not available
