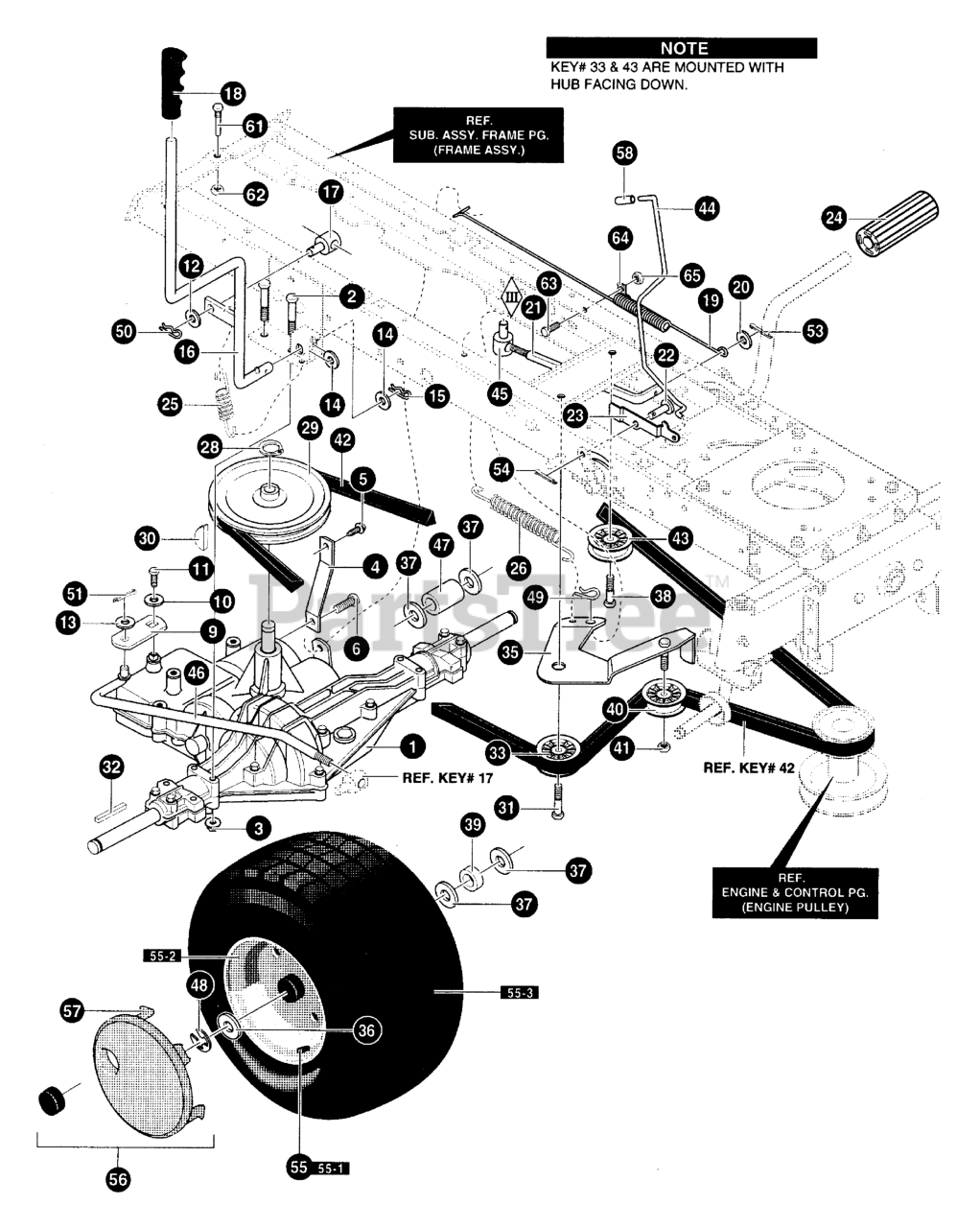

40320x88 - Murray 40" Lawn Tractor (2000) Drive Assembly Parts Diagram

40" Lawn Tractor

Drive Assembly Parts Diagram

  • Title

1

TRANSAXLE MST206-512A

$

$

Not available

2

Murray 711669

SCREW, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94620-853

BRACKET, STABILIZER

$

$

Currently unavailable

5

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

6

Murray 710268

SCREW, 5/16-18 x 0.75 WAHHTAP

$12.99

$

In Stock, Qty 5

0

9

Murray 94227

BRACKET,SHIFT

$

$

Currently unavailable

10

Murray 711895

WASH ER,.750X.250 TRANSAXLE

$

$

Currently unavailable

11

Murray 710345

SCREW, 1/4-28X.75

$10.99

$

Usually ships in 2-12 days

0

12

Murray 583409MA

WASHER, FLAT .391X1.00X.125

$4.49

$

Usually ships in 2-12 days

0

13

Murray 71072

WASHER, FLAT .406X .81X.066

$

$

Not available

14

Murray 711894

WASHER, FLAT .515X .88X.064

$

$

Currently unavailable

15

Murray 711899

PIN, HAIR.53DIAX1.62LG

$

$

Currently unavailable

16

Murray 690087

SHIFT LEVER

$

$

Currently unavailable

17

Murray 711591

NUT, ADJ. 3/8-16

$335.99

$

Usually ships in 2-12 days

0

18

Murray 094497

GRIP, LIFT 1/2"
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

19

Murray 95424

SPRING, BRAKE

$4.99

$

Usually ships in 2-12 days

0

20

Murray 711921

WASHER, FLAT.328X1.06X.062

$

$

Currently unavailable

21

Murray 690016

ROD, CLUTCH

$78.99

$

Usually ships in 2-12 days

0

22

Murray 711903

PIN, CLEVIS

$

$

Currently unavailable

23

Murray 95290

LATCH, PARK BRAKE

$3.99

$

Usually ships in 2-12 days

0

24

Murray 021544MA

PEDAL,BRAKE/CLUTCH
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

25

Murray 782223MA

SPRING

$

$

Not available

26

Murray 711522

SPRING, TENSION

$26.99

$

Usually ships in 2-12 days

0

28

Murray 22053

RING, RETEX
(Superseded to 5022053)

$6.49

$

Usually ships in 2-12 days

0

29

Murray 94571

PULLEY, 9.0 OD V4L

$

$

Currently unavailable

30

Murray 50795MA

KEY, HI-PRO 606

$5.99

$

In Stock, only 2 left!

0

31

Murray 711905MA

SCREW, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

32

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

33

Murray 95531

PULLEY, IDLER
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

35

Murray 94238-853

ASSY, IDLER ARM TRACTION

$

$

Currently unavailable

36

Murray 711758

FLATWASHER.765X1.81X.059

$26.99

$

In Stock, only 1 left!

0

37

Murray 711904

WASHER, FLAT .755 ID

$

$

Currently unavailable

38

Murray 711905MA

SCREW, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

39

Murray 95418MA

SPACER, WHEEL

$5.99

$

Usually ships in 2-12 days

0

40

Murray 091179MA

PULLEY, IDLER 2.75 DIA

$17.99

$

In Stock, only 1 left!

0

41

Murray 711920MA

NUT, 3/8-16 HWDFLLK

$4.49

$

Usually ships in 2-12 days

0

42

Murray 94608MA

BELT, V 4L 114.12

$44.99

$

Usually ships in 2-12 days

0

43

Murray 95531

PULLEY, IDLER V41-3.00X.710
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

44

Murray 690047

PARK BRAKE CONTROL ROD
(Superseded to 699672)

$199.99

$

Usually ships in 2-12 days

0

45

Murray 711898

NUT, 5/16-18X3/8 ADJUSTING

$

$

Currently unavailable

46

Murray 690027

ROD, SHIFT LINK

$10.99

$

Usually ships in 2-12 days

0

47

Murray 95419

SPACER, .87 X 2.25

$

$

Currently unavailable

48

Murray 710103

E-RING.574IDX.050/.75

$8.99

$

Usually ships in 2-12 days

0

49

Murray 711899

PIN, HAIR.53DIAX1.62LG

$

$

Currently unavailable

50

Murray 711682MA

PIN, HAIR.38 DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

51

Murray 711897

PIN, COTTER.090 DIAX.75

$

$

Currently unavailable

53

Murray 711897

PIN, COTTER.090 DIAX.75

$

$

Currently unavailable

54

Murray 711897

PIN, COTTER.090 DIAX.75

$

$

Currently unavailable

55

Murray 692290

TIRE & RIM

$

$

Currently unavailable

55-1

Murray 338512

VALVE STEM.

$

$

Not available

55-2

Murray 338524

RIM, CARL

$

$

Currently unavailable

55-3

Murray 338526

TIRE, 20X8X8

$

$

Currently unavailable

56

Murray 094618MA

HUBCAP, AXLE SHAFT

$5.99

$

In Stock, Qty 20+

0

57

NOT USED ON THIS UNIT

$

$

Not available

58

Murray 335980

CAP, DUMP VALVE ROD

$

$

Currently unavailable

61

Murray 712067

SCREW GUIDE

$11.99

$

Usually ships in 2-12 days

0

62

Murray 711633

NUT, 5/16-18 HEXWDFLLK WHIZ

$1.99

$

Usually ships in 2-12 days

0

63

Murray 180016MA

SCREW, 1/4-20X .50

$3.99

$

In Stock, only 2 left!

0

64

Murray 711742

RETAINER, WIRE

$18.99

$

Usually ships in 2-12 days

0

65

Murray 780285MA

NUT, 1/4-20 WDFLWHIZ-LK
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0
