40320x88 - Murray 40" Lawn Tractor (2000) Seat Assembly Parts Diagram

40" Lawn Tractor

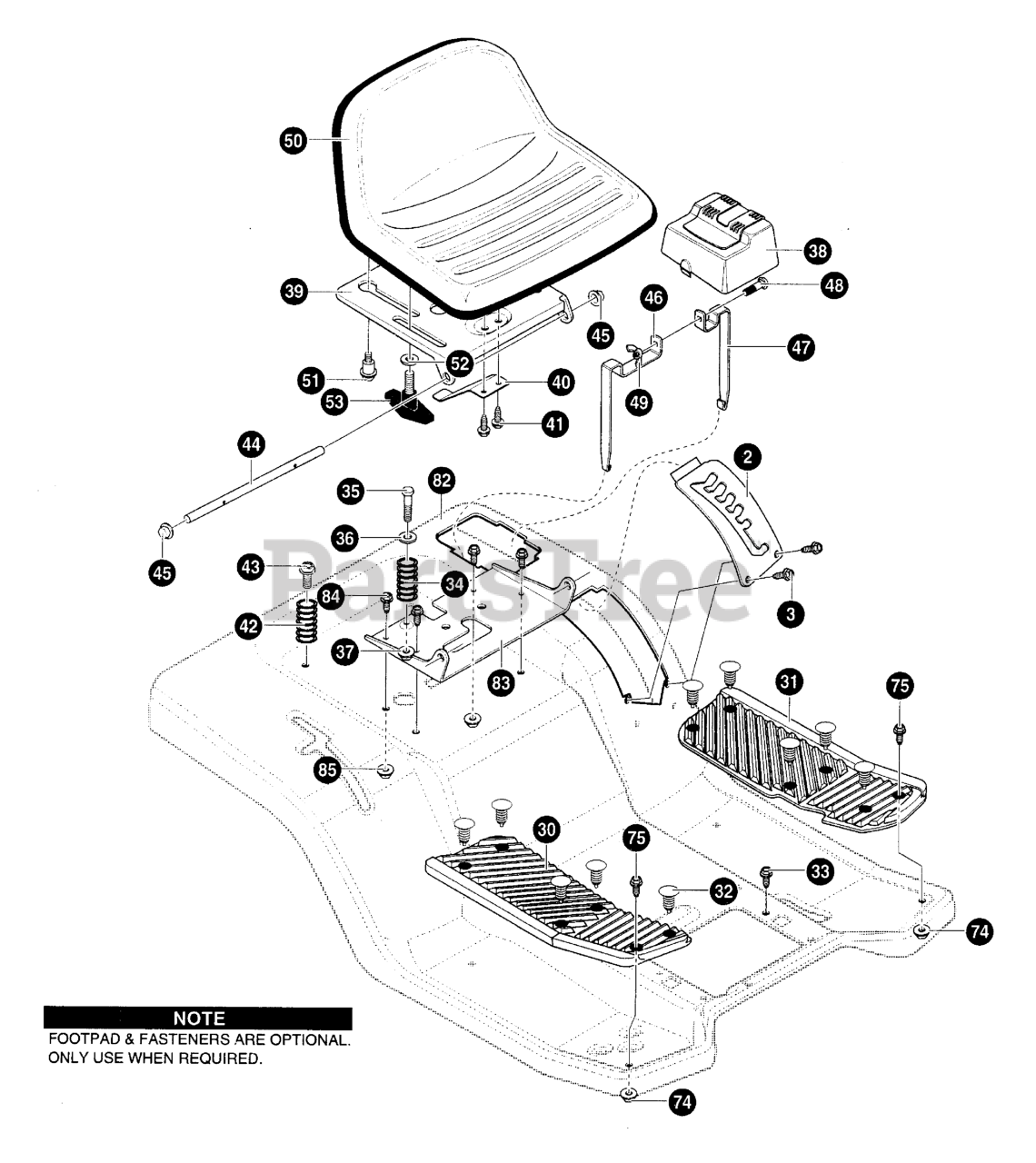

Seat Assembly Parts Diagram

  • Title

2

Murray 95190-853

PLATE, LIFT DETENT

$

$

Currently unavailable

3

Murray 711741

SCREW, #12X.50 PHPNHTAP

$1.99

$

Usually ships in 2-12 days

0

30

Murray 095409

FOOTREST PAD RH
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

31

Murray 095408

FOOTREST PAD LH
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

32

Murray 309235MA

RATCHET FASTENER

$3.99

$

Usually ships in 2-12 days

0

33

Murray 711606MA

SCREW, 5/16-18 x .75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

34

Murray 710136

SPRING, COMPRESSION 4.57LGX1.17

$22.99

$

Usually ships in 2-12 days

0

35

Murray 711610

BOLT, SHOULDER 1/4-20

$

$

Not available

36

Murray 95293

ZINC WASHER CUP

$1.99

$

Usually ships in 2-12 days

0

37

Murray 46931MA

NUT, 1/4-20 CNTRLK
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

38

Murray 94200MA

COVER, BATTERY

$26.99

$

Usually ships in 2-12 days

0

39

Murray 94154-848

SUPPORT, SEAT

$

$

Currently unavailable

40

Murray 094057MA

SPRING - LEAF

$5.99

$

Usually ships in 2-12 days

0

41

Murray 711592

SCREW, 1/4-20X.50 WAHHTAP

$335.99

$

Usually ships in 2-12 days

0

42

Murray 710109

SPRING, COMPRESSION 2.43LG 164X30

$5.49

$

Usually ships in 2-12 days

0

43

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

44

Murray 95294

ZINC HINGE SEAT PIVOT

$

$

Not available

45

Murray 711627MA

NUT, PUSH CAP.375

$

$

Not available

46

Murray 95393-853

BATTERY, BRACKET L.H.

$

$

Currently unavailable

47

Murray 95394-853

BATTERY BRACKET R.H.

$

$

Currently unavailable

48

Murray 711680

BOLT, 1/4-20X.63 CARR.
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

49

Murray 711636

NUT, WING 1/4-20 14X79

$

$

Not available

50

Murray 095415MA

SEAT

$433.99

$

Usually ships in 2-12 days

0

51

Murray 711654

BOLT, SHOULDER 5/16-18

$1.99

$

Usually ships in 2-12 days

0

52

Murray 711644MA

WASHER, FLAT .344X.62X.06

$3.49

$

Usually ships in 2-12 days

0

53

Murray 711747MA

BOLT, WING 5/16-18X.50

$3.99

$

Usually ships in 2-12 days

0

74

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

75

Murray 711891

BOLT, 5/16-18X.7A5 CARR.

$5.49

$

Usually ships in 2-12 days

0

82

Murray 341496-848

ASM., SEAT DECK PEDAL GEAR

$

$

Currently unavailable

83

Murray 94153-848

BRACKET, PIVOT SEAT

$

$

Currently unavailable

84

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

85

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0
