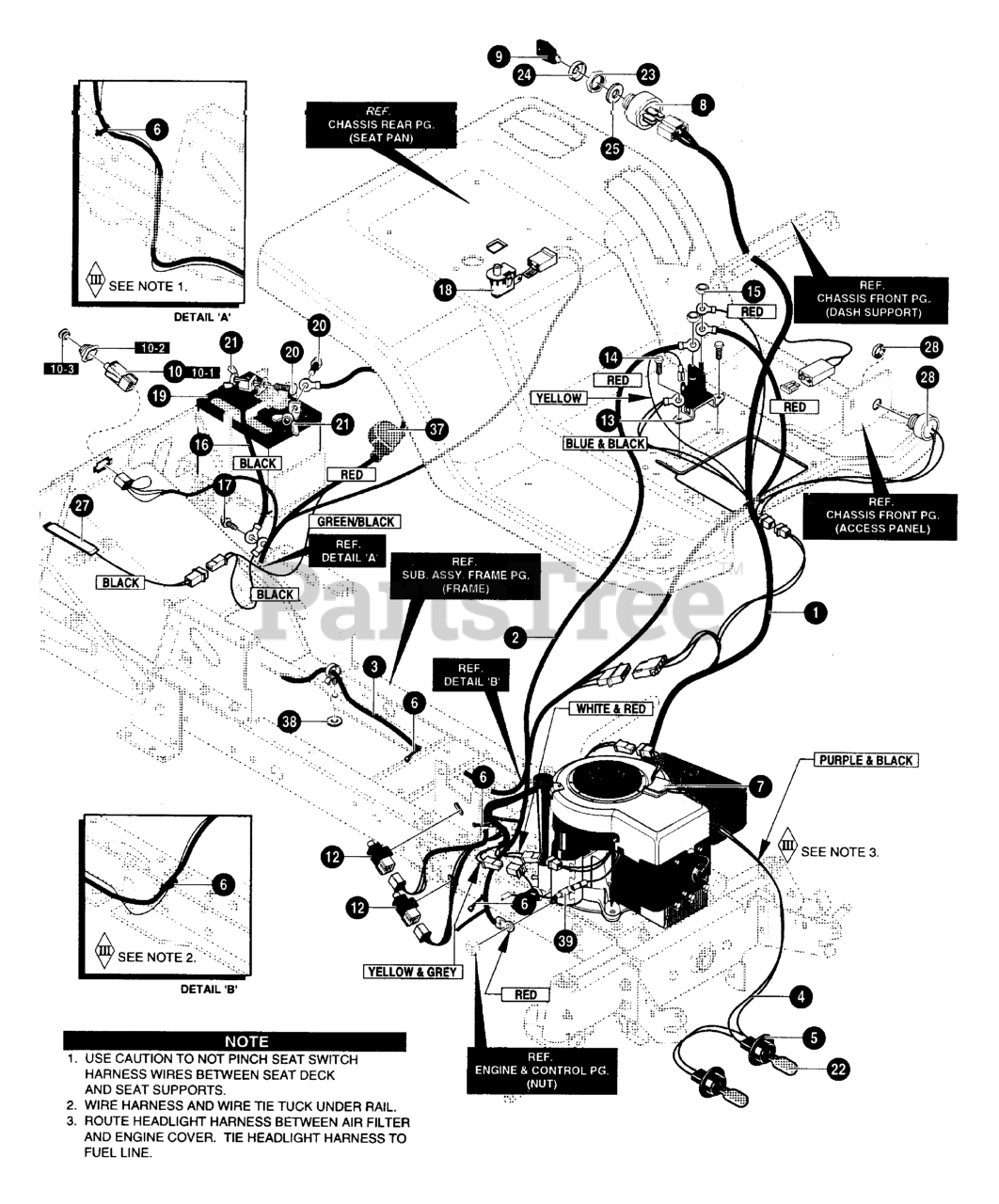

40320x88 - Murray 40" Lawn Tractor (2000) Wiring Assembly Parts Diagram

40" Lawn Tractor

Wiring Assembly Parts Diagram

  • Title

1

Murray 95380

WIRE HARNESS
(Superseded to 95380GS)

$

$

Not available

2

Murray 711579

WIRE, LEAD

$

$

Currently unavailable

3

Murray 95381

REAR HARNESS

$

$

Currently unavailable

4

Murray 340513

WIRE HARNESS FOR HEADLIGHTS

$

$

Currently unavailable

5

Murray 092372

SOCKET, LAMP

$7.99

$

In Stock, Qty 11

0

6

Murray 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Not available

7

Murray 055939MA

WIRE CLIP, ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

8

Murray 94878MA

SWITCH, IGNITION

$30.99

$

Usually ships in 2-12 days

0

9

Murray 327350MA

KEY, IGNITION
(Superseded to 1714054SM)

$7.49

$

Usually ships in 2-12 days

0

10

Murray 690106MA

ASSY, SWITCH DOUBLE

$19.99

$

Usually ships in 2-12 days

0

10-1

Murray 320082MA

SWITCH, DOUBLE

$

$

Not available

10-2

Murray 690074MA

BOOT, SWITCH

$5.49

$

Usually ships in 2-12 days

0

10-3

Murray 690075MA

CAP, SWITCH

$4.99

$

Usually ships in 2-12 days

0

12

Murray 094136MA

SWITCH LIMIT

$12.99

$

In Stock, Qty 5

0

13

Murray 094613

SOLENOID

$27.99

$

In Stock, Qty 8

0

14

Murray 711619

SCREW, 1/4X.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

NUT, 1/4-20 HEXNYL

$

$

Currently unavailable

16

Murray 95420

WIRE, GROUND

$

$

Currently unavailable

17

Murray 711619

SCREW,1/4X.50

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

19

Murray 302257

BATTERY 12V 7 PLATE

$

$

Currently unavailable

20

Murray 711680

BOLT,1/4-20X.63
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

NUT, WING 1/4-20

$

$

Not available

22

Murray 780216

BULB, HEADLIGHT

$

$

Currently unavailable

23

Murray 327352MA

NUT, 5/8-8 ACME

$

$

Not available

24

Murray 300194MA

BOOT, IGNITION SWITCH

$6.49

$

Usually ships in 2-12 days

0

25

Murray 138557

WASHER, REGINTLK

$1.49

$

Usually ships in 2-12 days

0

27

Murray 95330MA

TAPE SWITCH

$86.99

$

Usually ships in 2-12 days

0

28

Murray 95391

BUZZER, FOR BAG FULL

$

$

Currently unavailable

37

Murray 335417

BATTERY BOOT

$5.49

$

Usually ships in 2-12 days

0

38

Murray 711666

FLATWASHER, .250X.56X.0478

$

$

Not available

39

Murray 94348

HARNESS ADAPTER

$

$

Currently unavailable

--

Murray 302031MA

15 AMP FUSE

$6.49

$

Usually ships in 2-12 days

0
