40357 - Gravely 32" Grass Bagger for 1100 & 1200 Series Tractor GRASS CATCHER 32" Parts Diagram

32" Grass Bagger for 1100 & 1200 Series Tractor

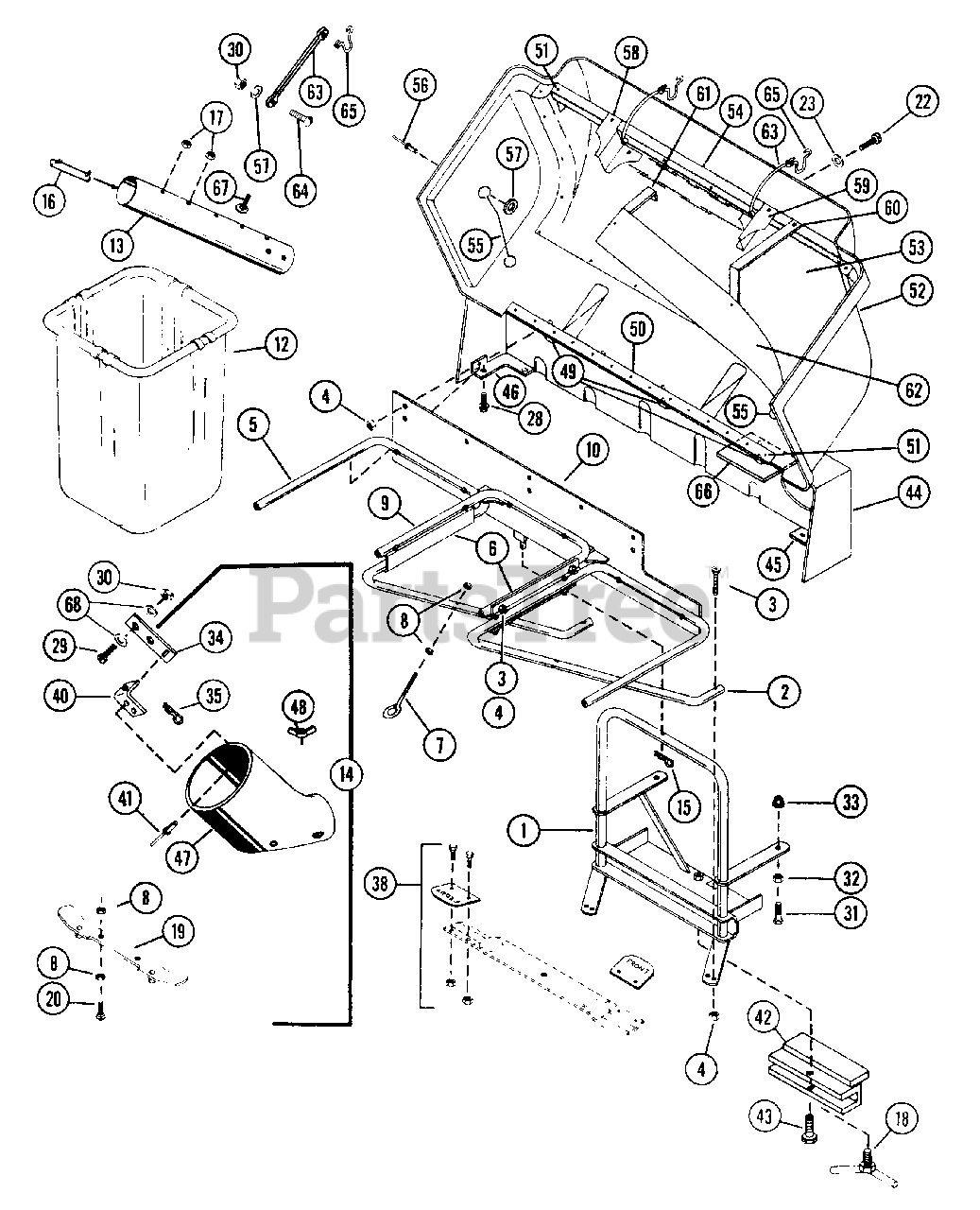

GRASS CATCHER 32" Parts Diagram

  • Title

1

Gravely 038320

ATTACHMENT FRAME

$

$

Not available

2

Gravely 038321

RIGHT TUBE
(Superseded to 03324800)

$

$

Not available

3

Gravely 035809

SCR-MCH .31-18 X 1.50 YWZC
(Superseded to 06119100)

$

$

Not available

4

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 038322

LEFT TUBE
(Superseded to 03324900)

$

$

Not available

6

Gravely 038323

TUBE BRACKET
(Superseded to 02724700)

$

$

Not available

7

Gravely 038324

EYEBOLT
(Superseded to 02440100)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 038325

CENTER TUBE
(Superseded to 02724651)

$

$

Not available

10

Gravely 038326

MOUNTING BRACKET
(Superseded to 03551400)

$

$

Not available

12

Gravely 038328

GRASS BAGGER BASKET
(Superseded to 02724400)

$81.99

$

In Stock, only 4 left!

0

13

Gravely 041082

TUBE BLANK
(Superseded to 03558600)

$185.99

$

Usually ships in 4-12 days

0

14

Gravely 041083

32" BOOT ASSEMBLY
(Superseded to 53505500)

$

$

Not available

15

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 035825

CLIP
(Superseded to 02533300)

$

$

Not available

17

Gravely 038345

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 7

0

18

Gravely 035835

T-HANDLE BOLT
(Superseded to 03525900)

$

$

Not available

19

Gravely 041084

LATCH SPRING
(Superseded to 02730800)

$

$

Not available

20

Gravely 126325

BLT-RDHDSQNK .25-20X1.25 G5YZ
(Superseded to 06219700)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 038335

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

28

Gravely 180073

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

29

Gravely 133556

SCR,MACH 10-24X3/8 F/HD
(Superseded to 21053900)

$

$

Not available

30

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 041085

STRAP
(Superseded to 03558400)

$

$

Not available

35

Gravely 036566

PIN-HAIR INT .09X.188 PL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 041086

SERVICE VANE PACKAGE
(Superseded to 52701100)

$46.99

$

Usually ships in 4-12 days

0

Gravely 041087

SERVICE VANE PACKAGE
(Superseded to 52701100)

$46.99

$

Usually ships in 4-12 days

0

Gravely 181595

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

Gravely 035834

NUT-LK TOP .312-24 PL GR C
(Superseded to 06514500)

$

$

Not available

40

Gravely 036783

RETAINER
(Superseded to 02539600)

$

$

Not available

41

Gravely 036782

RVT-TBLR .187X.375 OH ST PL
(Superseded to 06806200)

$

$

Not available

42

Gravely 038338

ADAPTOR
(Superseded to 03532900)

$

$

Not available

43

Gravely 180183

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0

44

Gravely 041088

STATIONARY COVER
(Superseded to 53506700)

$

$

Not available

45

Gravely 041089

RH CORNER BRACKET
(Superseded to 02725000)

$

$

Not available

46

Gravely 041090

LH CORNER BRACKET
(Superseded to 02725100)

$

$

Not available

47

Gravely 041091

G-BOOT ASSEMBLY
(Superseded to 63515600)

$

$

Not available

48

Gravely 148313

NUT-WING .312-18 YWZC
(Superseded to 06503800)

$2.99

$

Usually ships in 4-12 days

0

49

Gravely 041092

BRACE
(Superseded to 02725200)

$

$

Not available

50

Gravely 041093

HINGE

$

$

Not available

51

Gravely 026537

RVT,
(Superseded to 20453800)

$

$

Not available

52

Gravely 041094

HINGED COVER W/DECALS

$

$

Not available

53

Gravely 041095

SCREEN
(Superseded to 03325500)

$

$

Not available

54

Gravely 041096

PNL,SIDE

$

$

Not available

55

Gravely 041097

BRACE
(Superseded to 03552900)

$

$

Not available

56

Gravely 041098

RVT-POP.187X.527 DOME ST
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 120385

WSHR-FL-STL .188X.438X.049 PL
(Superseded to 06409200)

$

$

Not available

58

Gravely 041099

BAFFLE LH
(Superseded to 03326900)

$5.99

$

Usually ships in 4-12 days

0

59

Gravely 041100

BAFFLE RH
(Superseded to 03327000)

$

$

Not available

60

Gravely 041101

BRACE
(Superseded to 03326500)

$113.99

$

Usually ships in 4-12 days

0

56

Gravely 041098

RVT-POP.187X.527 DOME ST
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 120385

WSHR-FL-STL .188X.438X.049 PL
(Superseded to 06409200)

$

$

Not available

58

Gravely 041099

BAFFLE LH
(Superseded to 03326900)

$5.99

$

Usually ships in 4-12 days

0

59

Gravely 041100

BAFFLE RH
(Superseded to 03327000)

$

$

Not available

60

Gravely 041101

BRACE
(Superseded to 03326500)

$113.99

$

Usually ships in 4-12 days

0

61

Gravely 041102

BRACE
(Superseded to 03553000)

$5.99

$

Usually ships in 4-12 days

0

62

Gravely 041103

BAFFLE

$

$

Not available

63

Gravely 035829

BATTERY STRAP
(Superseded to 07507500)

$15.99

$

Usually ships in 4-12 days

0

64

Gravely 132848

SCR-MCH 10-24X1.00 RDHD
(Superseded to 06112700)

$

$

Not available

65

Gravely 035830

HOOK
(Superseded to 02738100)

$7.49

$

In Stock, only 4 left!

0

66

Gravely 041104

TUBE GUIDE
(Superseded to 53506300)

$

$

Not available

67

Gravely 110356

BLT,CARRIAGE 1/4-20X.5
(Superseded to 21048900)

$

$

Not available

68

Gravely 446161

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

NS

Gravely 041105

HINGED COVER W/DECALS

$

$

Not available

NS

Gravely 024608

G-DECAL, GRAVLEY LOGO
(Superseded to 02460800)

$29.99

$

Usually ships in 4-12 days

0
